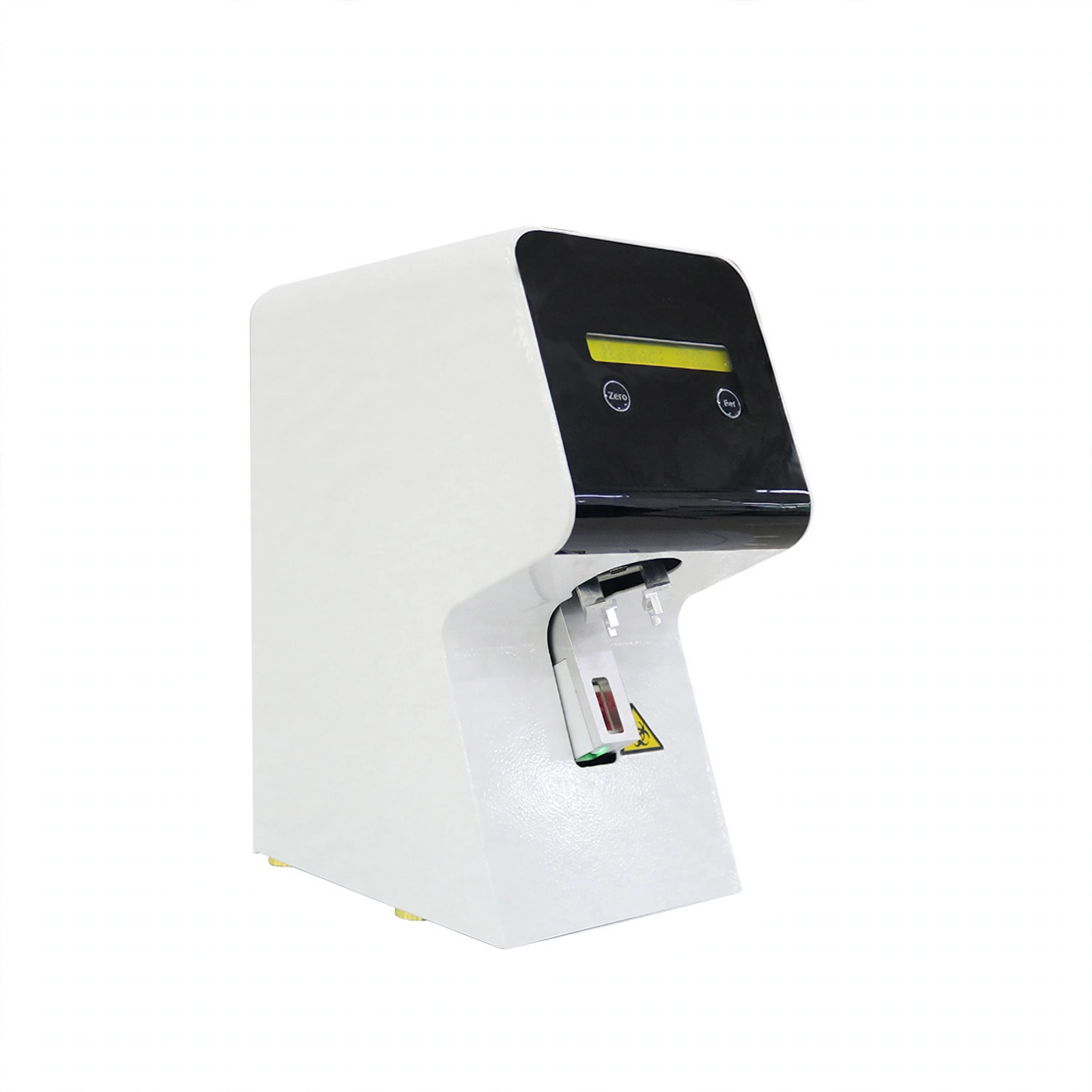

BK-AC10 is an automatic and intelligent device that can open and close sample collection tubes of various specifications. The device is small and flexible. It can be placed in a safety cabinet and can be used by laboratory personnel with one hand. The sample is opened and closed, freeing the right hand of laboratory personnel, improving work efficiency, and reducing experimental fatigue and strength.
Ask about availability, configuration and delivery to your location. We reply personally.
Enquiry only. No payment is taken.Application:
Laboratory departments, clinical departments, emergency departments, fever departments, primary health institutions, third-party medical testing laboratories, disease control centers, testing stations, etc.
Features:
1. Safety: It can be placed in a safety cabinet to effectively avoid experimental pollution.
2. Efficient: complete the operation with one hand, it takes about 1.8 second to open or close the lid.
3. Smart: Diffuse reflection automatically sensing lid opening without button operation。
4. Strong compatibility: suitable tube cover diameter 19.5~29.5mm(can be customized according to the tube cap, can adapt to most sampling tubes in the market.
5. Work quantity display: display the work quantity on the display.
Technical Parameters:
| Model | BK-AC10 |
| Channel | Single |
| Open Type | Screw capping |
| Speed | <1.8s |
| Display | LCD1601 |
| Sensing Method | Diffuse reflection |
| External Size(W*D*H) | 164*295*363mm |
| Net Weight | 7.8kg |
| Standard Accessory | Gripper B, Diffuse reflection sensor |
| Optional Accessory | Foot switch, Gripper A/C/ D |
| Other Function | With counting function |
| Power Supply | AC100~240V, 50/60Hz, 40VA |
| Package Size(W*D*H) | 320*280*365mm |
| Gross Weight | 12.05kg |
Gripper Parameters:
| Gripper Number | Gripper A | Gripper B | Gripper C | Gripper D |
| Running Distance |
0~6mm |
|||
| Cap Compatibility | 13~18mm | 19.5~24mm | 24.5~29.5mm | 31~36mm |
Request a quote on WhatsApp, or add several items to your enquiry list and send them together.
We confirm configuration, voltage, accessories, availability and a delivered price.
We handle procurement, packing and international shipping to your facility.

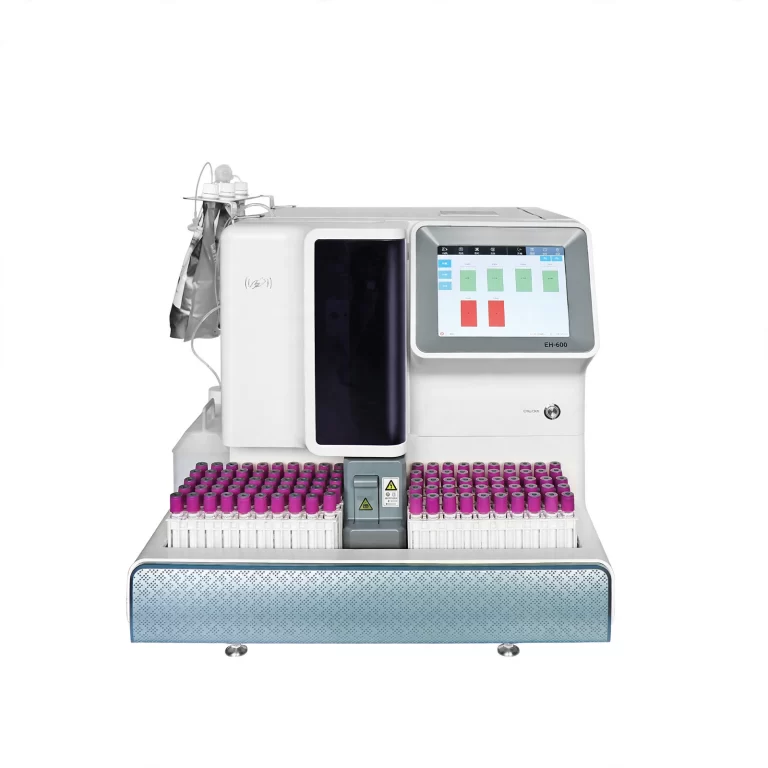

The Automated Glycohemoglobin Analyzer is a high-throughput benchtop system for quantitative HbA1c measurement in clinical laboratories. It uses ion-exchange HPLC with three elution buffers to deliver precise results…
The Automated Glycohemoglobin Analyzer AH-600Pro is a high-throughput benchtop system for quantitative HbA1c measurement in clinical laboratories. It uses ion-exchange HPLC with three elution buffers to deliver precis…

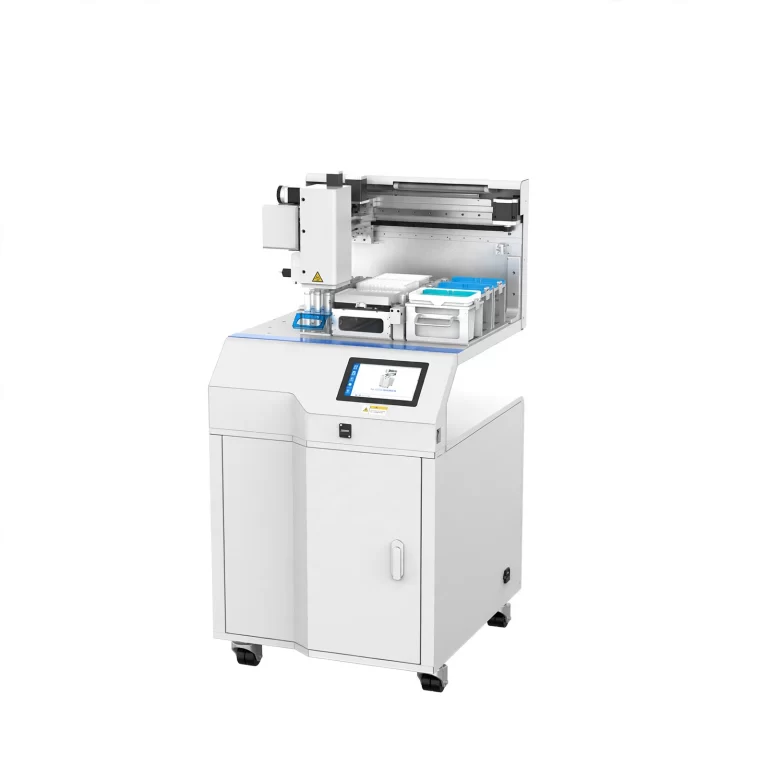

The automated sample processing system can be used with a biological safety cabinet. It can complete lid openinglclosing, dispensing, proteinase K/internal control addition, which helps laboratories quickly improve th…

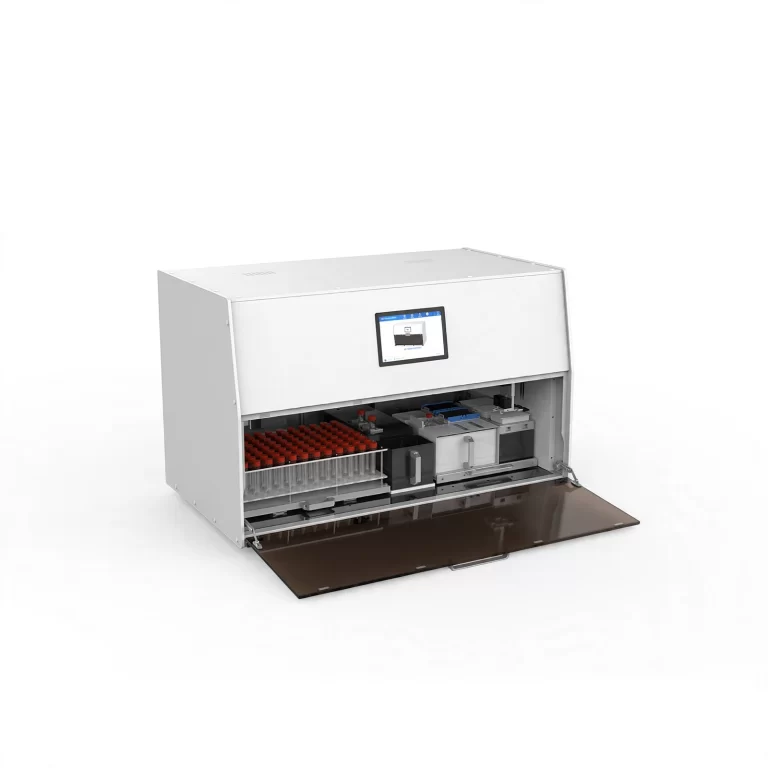

The BK-PR96 automated sample processing system is suitable for a variety of screw-cap sampling tubes, and can be loaded with the original tube with the cap. It has functions such as automatic opening and closing of th…
