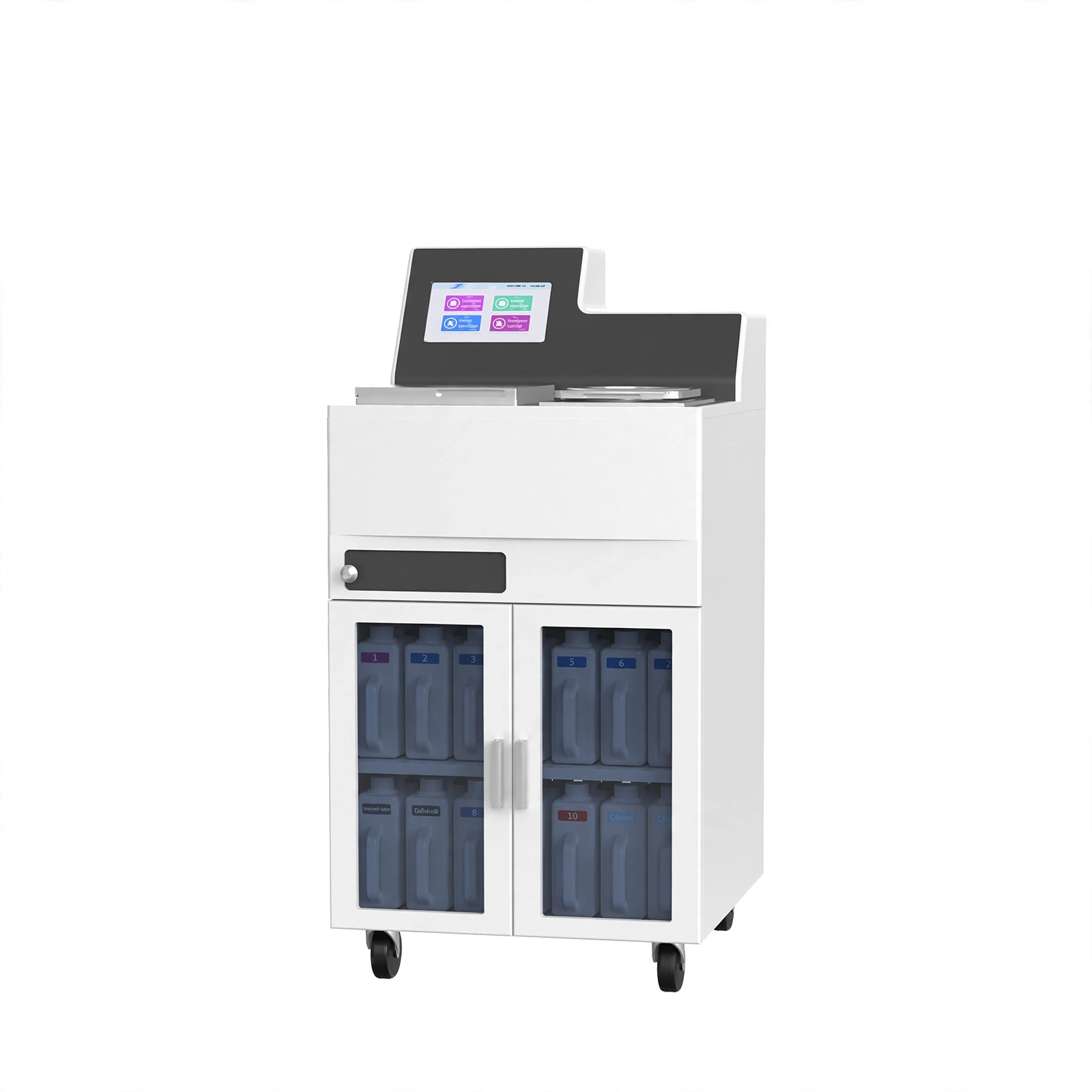

This automated tissue processor programmatically controls the immersion of human, animal, or plant tissue samples in solvents for standardized histological processing including dehydration, clearing, and paraffin infiltration as critical pre-analytical steps for pathological examination.
Ask about availability, configuration and delivery to your location. We reply personally.
Enquiry only. No payment is taken.Features:
1. HD touchscreen with Intuitive UI: Multi-language, full real-time parameter display, and high-sensitivity touch operation.
2. Programmable Scheduling: Set start times for arbitrary time slots within a weekly cycle.
3. Power-Off Memory: Retains pre-interruption settings upon power restoration.
4. Delay-Start Heating: Energy-efficient operation enabled via smart temperature control.
5. Dual Activated Carbon Filtration: Effectively neutralizes exhaust odors, maintaining indoor air quality.
6. High-throughput Processing: Handles≥200 specimens/batch, enhancing diagnostic efficiency and data accuracy.
Technical Parameters:
| Model | BK-TS4 |
| Reagent Bottle Number | 12 bottles(Bottles 1~10: Dehydration solvents; Bottle 14: Xylene; Bottle 15: Alcohol) |
| Single Bottle Capacity | 3.5L |
| Single Reagent Processing Time | 0~99h59min, adjustable |
| Paraffin Bath Number | 3 |
| Paraffin Bath Temperature | 50~80°C, adjustable |
| Temperature Control Accuracy | ±2°C |
| Processing Chamber Volume | 4.4L |
| Sample Processing Capacity | ≥200 samples/batch |
| Vacuum Pressure | <0.1MPa |
| Noise | ≤60dB(A) |
| Power Consumption | 1000W |
| Power Supply | AC220V, 50/60Hz(Standard);
AC110V, 60Hz(Optional) |
| Standard Accessories | Dehydration basket *1; Washing bottles*2; Reagent bottles*10; Activated carbon bottles*2 |
| External Size(W*D*H) | 685*640*1300mm |
| Package Size(W*D*H) | 750*800*1500mm |
| Net Weight | 140kg |
| Gross Weight | 170kg |
Request a quote on WhatsApp, or add several items to your enquiry list and send them together.
We confirm configuration, voltage, accessories, availability and a delivered price.
We handle procurement, packing and international shipping to your facility.
The Automated Tissue Processor is a high-efficiency, fully automated solution for routine tissue processing in histopathology laboratories.
The Automated Tissue Processor is a high-efficiency, fully automated solution for routine tissue processing in histopathology laboratories.
This automated tissue processor programmatically controls the immersion of human, animal, or plant tissue samples in solvents for standardized histological processing including dehydration, clearing, and paraffin infi…
