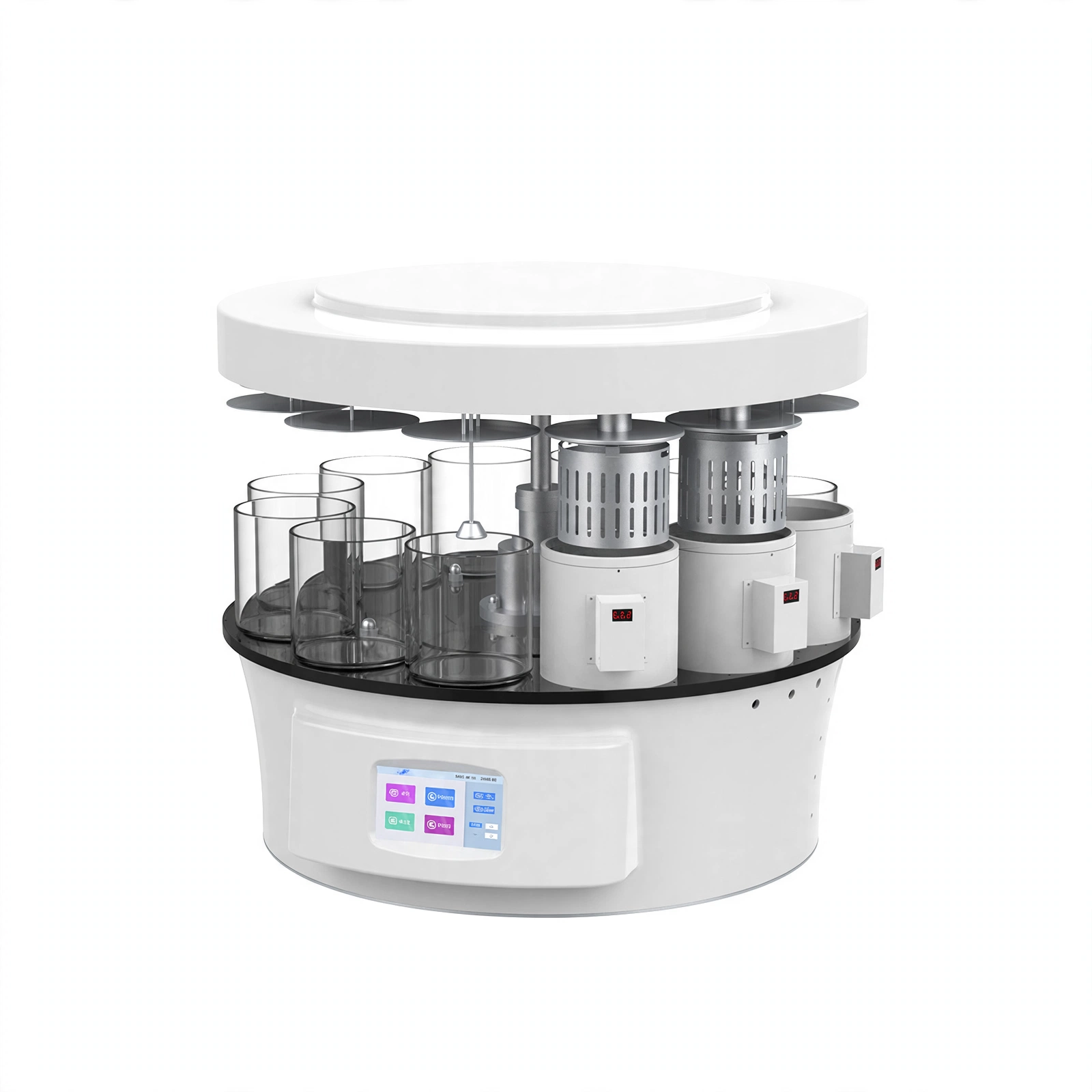

This automated tissue processor programmatically controls the immersion of human, animal, or plant tissue samples in solvents for standardized histological processing including dehydration, clearing, and paraffin infiltration as critical pre-analytical steps for pathological examination.
Ask about availability, configuration and delivery to your location. We reply personally.
Enquiry only. No payment is taken.Features:
1. The device has a high-definition color LCD touch screen and is programmable for 20 routines, simplifying operation and monitoring.
2. It automates the entire process from sample transfer to dehydration, reducing manual work and enhancing efficiency.
3. With an organizational basket capacity of 100 embedding cassettes, it can be upgraded to a double-basket configuration, enabling processing of up to 200 cassettes.
4. Powered by a high-performance AC constant-speed motor, it ensures stable and quiet operation with high torque for accurate dehydration.
5. The permanent magnet synchronous motor facilitates thorough tissue-solvent and wax mixing, ensuring effective dehydration.
6. The wax tank features a digital constant-temperature control system with high precision and an electrode-oxidized inner surface for anti-pollution and corrosion resistance.
7. An activated carbon filter and exhaust system minimize air pollution, and a vacuum extraction device enhances tissue permeation and dehydration.
Technical Parameters:
| Model | BK-TS6 |
| Cup Number | 12pcs(9pcs reagent cup, 3pcs paraffin cup) |
| Single Cup Capacity | 2300ml |
| Single Cup Processing Time | 0~99h59min |
| Single Paraffin Cup Capacity | 1800ml |
| Agitation Frequency | 5min/time |
| Dehydration Basket Size | Φ127*110mm |
| Dehydration Basket Capacity | 100 cassettes |
| Program Storage | 20 sets |
| Noise | ≤60dB(A) |
| Power Consumption | 400W |
| Power Supply | AC220V, 50/60Hz(Standard);
AC110V, 60Hz(Optional) |
| Standard Accessories | Dehydration Basket*1; Reagent cups*9; Paraffin cups*3; Activated carbon bag*1 |
| Optional Accessories | Dehydration Baskets*2 |
| External Size(W*D*H) | Φ800*630~760mm |
| Package Size(W*D*H) | Main instrument: 940*940*820mm;
Reagent bottle: 470*640*570mm |
| Net Weight | 75kg |
| Gross Weight | Main instrument: 100kg;
Reagent bottle: 32kg |
Request a quote on WhatsApp, or add several items to your enquiry list and send them together.
We confirm configuration, voltage, accessories, availability and a delivered price.
We handle procurement, packing and international shipping to your facility.
The Automated Tissue Processor is a high-efficiency, fully automated solution for routine tissue processing in histopathology laboratories.
