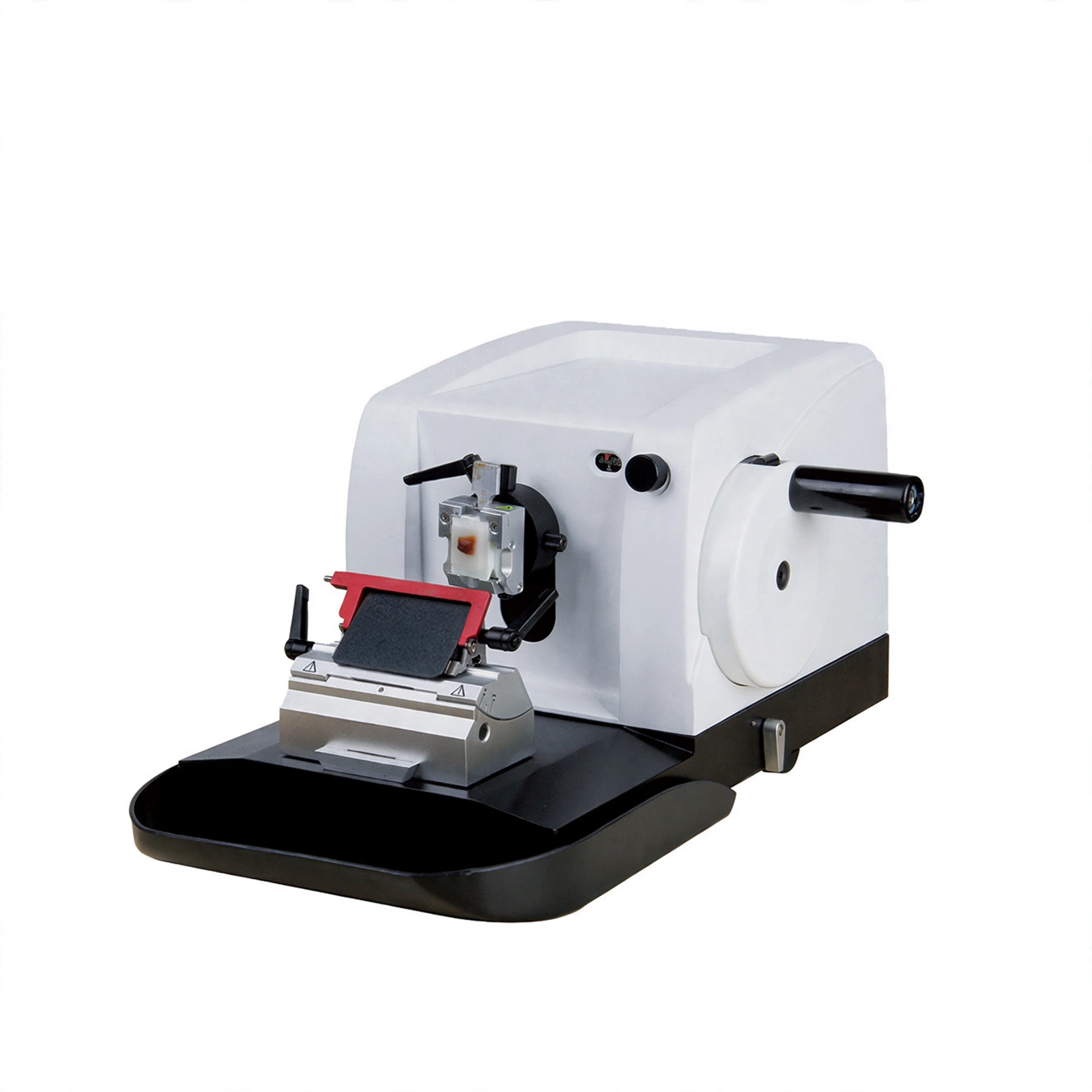

These rotary microtomes equipped with imported roller guide rails and high-precision roller screws. This is an ideal device for use in histology due to its ergonomic design, compact structure, high precision, and stable and reliable performance.
Ask about availability, configuration and delivery to your location. We reply personally.
Enquiry only. No payment is taken.Features:
*Large-volume removable waste tray on the top of housing, convenient to use.
*Imported cross-roller guide rails and high precision screw motion mechanism.meihuatrade
*Advanced high-precision micro-drive feed system enables stable and high-precision sectioning.
* Small coarse-advance hand-wheel is close to the operator, in accordance with an ergonomic design.
*The precise positioning system is not only easy to use, but also provides accurate X- and Y- axis adjustment
*Hand-wheel balance is precisely adjusted and locked at any position, ensuring safety and convenience of sectioning.
* Fast switching between paraffin block clamp and cassette clamp; Paraffin Block Clamp is for Standard Conficuration, cassette clam is optional.
* Blade holder can be laterally moved without direct contact, enabling use of the entire length of the blade.(three differentsegments)
* Cassette clamp can be locked at any position along each of the three axes, enabling easy adjustment of the specimen
sectioning angle.
* The red bar on the blade holder covers the whole length of blade to protect the user and enables easy changing of theblade.
Models:
| Model | BK-2218 | BK-2268 |
| Function |
Sectioning, trimming, fast forward, fast backward, quick conversion; automatic retraction (Only for BK-2268). |
|
|
Sectioning Thickness
Range |
0~60μm |
|
|
Section Thickness
Setting Options |
0〜2μm increment 0.5μm
2〜10μm increment 1μm 10~20μm increment 2μm 20〜60μm increment 5μm |
0 〜2μm increment 0.5μm
2 〜20μm increment 1μm 20~60μm increment 5μm |
| Trimming Thickness Range |
0〜60μm |
|
| Mini. Sectioning Thickness |
1pm |
|
| Max. Specimen Size | 60*70mm (optional clamp) | 70*70mm (optional clamp) |
| Precision |
±1% |
|
| Specimen Horizontal Stroke | 29mm | 28mm |
| Specimen Vertical Stroke | 60mm | 70mm |
| Specimen Orientation |
XY-8° |
|
| External Size(W*D*H) | 570*440*290mm | 590*500*330mm |
| Package Size(W*D*H) | 620*530*450mm | 690*590*500mm |
| Gross Weight | 40kg | 54kg |
Request a quote on WhatsApp, or add several items to your enquiry list and send them together.
We confirm configuration, voltage, accessories, availability and a delivered price.
We handle procurement, packing and international shipping to your facility.
This machine uses a streamlined design, with advanced features, stable and reliable performance and ease of use.
