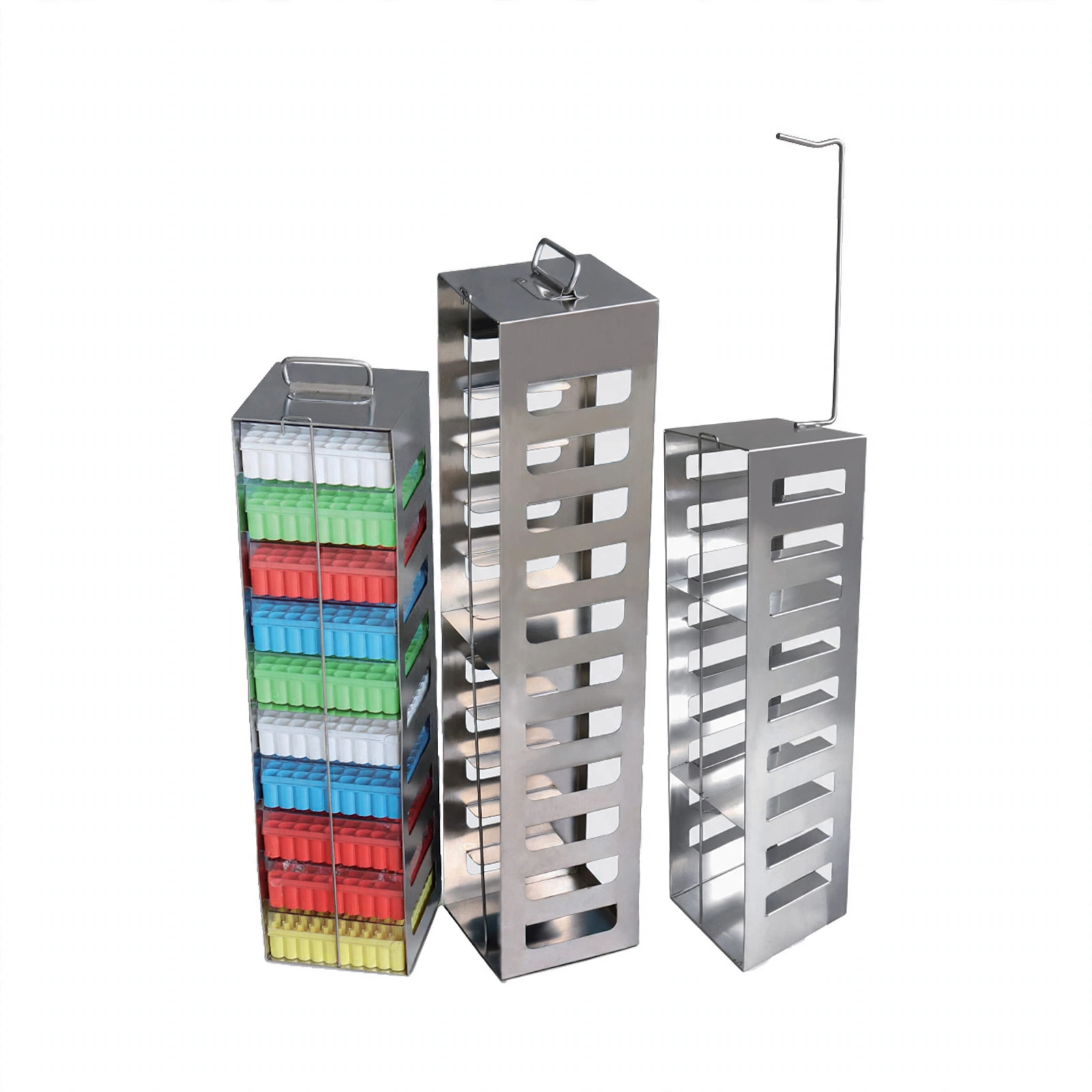

Freezer Racks are essential laboratory storage solutions designed to efficiently organize and securely hold sample tubes, vials, cryogenic boxes, and other containers in ultra-low temperature freezers.
Ask about availability, configuration and delivery to your location. We reply personally.
Enquiry only. No payment is taken.Features:
1. Made of corrosion-resistant 304 stainless steel for repeated freeze-thaw and long-term storage of samples.
2. It can be used for sample storage in ultra-low temperatures.
3. It can withstand temperature range of -196℃ to 800℃.
4. It is suitable for 1-inch and 2-inch freezer boxes.
5. It is suitable for most standard refrigerators and liquid nitrogen containers.
6. It can be customized.
Technical Parameters:
| Model | Specification | Material | Size(W*D*H)(mm) | Freezer Box Size(mm) | Freezer Tube |
| BK-LD6 | 6 layers | 304 stainless steel | 142*140*344 | ≤133*133*52 | 1.5~2ml |
| BK-LD8 | 8 layers | 304 stainless steel | 142*140*455 | ≤133*133*52 | 1.5~2ml |
| BK-LD10 | 10 layers | 304 stainless steel | 142*140*568 | ≤133*133*52 | 1.5~2ml |
| BK-LD4X3 | 4 layers and 3 columns | 304 stainless steel | 420*140*242 | ≤133*133*52 | 1.5~2ml |
| BK-LD4X4 | 4 layers and 4 columns | 304 stainless steel | 560*140*242 | ≤133*133*52 | 1.5~2ml |
| BK-LD5X3 | 5 layers and 3 columns | 304 stainless steel | 420*140*290 | ≤133*133*52 | 1.5~2ml |
| BK-LD5X4 | 5 layers and 4 columns | 304 stainless steel | 560*140*295 | ≤133*133*52 | 1.5~2ml |
| BK-LD5X5 | 5 layers and 5 columns | 304 stainless steel | 685*140*295 | ≤133*133*52 | 1.5~2ml |
| BK-LD6X2 | 6 layers and 2 columns | 304 stainless steel | 290*140*348 | ≤133*133*52 | 1.5~2ml |
| BK-LD6X3 | 6 layers and 3 columns | 304 stainless steel | 420*140*348 | ≤133*133*52 | 1.5~2ml |
| BK-LD7X5 | 7 layers and 5 columns | 304 stainless steel | 685*140*406 | ≤133*133*52 | 1.5~2ml |
Compatible Freezer Models
| Matching Model | Layer Count | Quantity Per Layer | Freezer Rack | Total Capacity |
| BDF-86H60 | 1 | 4 | BK-LD6 | 4 |
| BDF-86H128 | 1 | 6 | BK-LD10 | 6 |
| BDF-150H128 | 1 | 9 | BK-LD10 | 9 |
| BDF-150H138 | 1 | 12 | BK-LD8 | 12 |
| BDF-150H226 | 1 | 20 | BK-LD8 | 20 |
| BDF-86V58 | 1 | 2 | BK-LD6X2 | 2 |
| BDF-86V65 | 1 | 2 | BK-LD5X3 | 2 |
| BDF-86V65 | 1 | 2 | BK-LD6X3 | 2 |
| BDF-86V100 | 2 | 2 | BK-LD5X3 | 4 |
| BDF-86V108 | 2 | 3 | BK-LD4X3 | 6 |
| BDF-86V168/168T/168B/168BM | 3 | 3 | BK-LD4X3 | 9 |
| BDF-86V348/348T/348B/348BM | 4 | 3 | BK-LD4X4 | 12 |
| BDF-86V408D/418T/418BD | 4 | 4 | BK-LD4X4 | 16 |
| BDF-86V588/588D//608T/608BD | 4 | 4 | BK-LD5X5 | 16 |
| BDF-86V728 | 4 | 6 | BK-LD5X4 | 24 |
| BDF-86V838/838D | 4 | 6 | BK-LD5X5 | 24 |
| Matching Model | Freezer Box Specification | Matching Freezer Box Size(mm) | Quantity of Freezer Boxes | Quantity of Samples
(100-well freezer box) |
| BDF-86H60 | 2 inches | ≤133*133*52 | 24 | 2400 |
| BDF-86H128 | 2 inches | ≤133*133*52 | 60 | 6000 |
| BDF-150H128 | 2 inches | ≤133*133*52 | 90 | 9000 |
| BDF-150H138 | 2 inches | ≤133*133*52 | 96 | 9600 |
| BDF-150H226 | 2 inches | ≤133*133*52 | 160 | 16000 |
| BDF-86V58 | 2 inches | ≤133*133*52 | 24 | 2400 |
| BDF-86V65 | 2 inches | ≤133*133*52 | 30 | 3000 |
| BDF-86V65 | 2 inches | ≤133*133*52 | 36 | 3600 |
| BDF-86V100 | 2 inches | ≤133*133*52 | 60 | 6000 |
| BDF-86V108 | 2 inches | ≤133*133*52 | 72 | 7200 |
| BDF-86V168/168T/168B/168BM | 2 inches | ≤133*133*52 | 108 | 10800 |
| BDF-86V348/348T/348B/348BM | 2 inches | ≤133*133*52 | 192 | 19200 |
| BDF-86V408D/418T/418BD | 2 inches | ≤133*133*52 | 256 | 25600 |
| BDF-86V588/588D//608T/608BD | 2 inches | ≤133*133*52 | 400 | 40000 |
| BDF-86V728 | 2 inches | ≤133*133*52 | 480 | 48000 |
| BDF-86V838/838D | 2 inches | ≤133*133*52 | 600 | 60000 |
