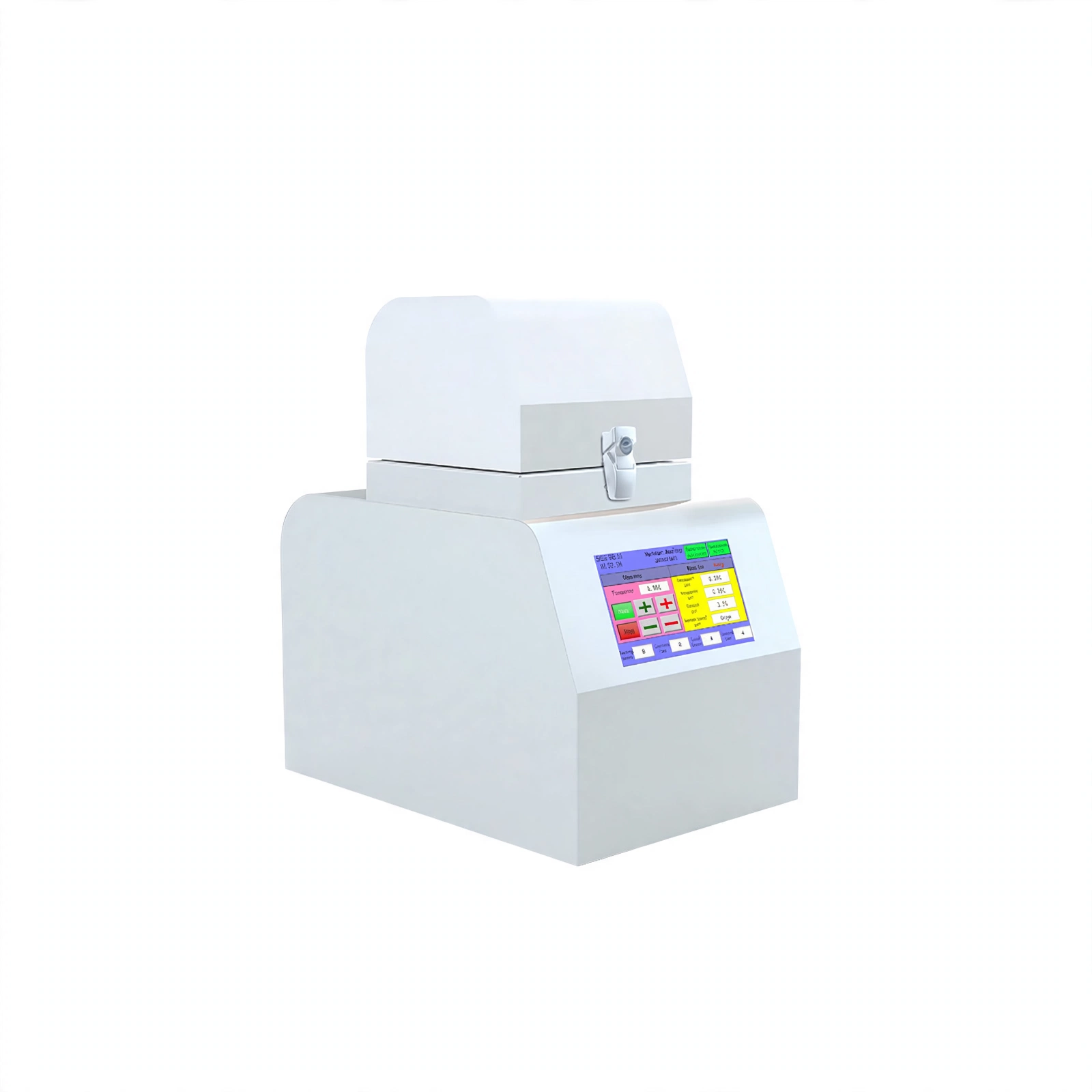

Application: It is widely used in biochemistry, microbiology, pharmaceutical chemistry, surface chemistry, physical chemistry, zoology and other fields. The types of samples processed include plant tissues(such as rice, corn, wheat, beans, peanuts), animal tissues(such as small intestine, heart, lung, fur, etc.), cells, bacteria, yeast, and various medicinal tissues,etc.
Ask about availability, configuration and delivery to your location. We reply personally.
Enquiry only. No payment is taken.Features:
1. The all-metal body improves the stability and safety of the whole machine.
2. The safety lock of the working chamber ensures the safety of samples and laboratory.
3. There is no cross-contamination, and the sample tube is fully enclosed during the crushing process.
4. Good repeatability. The same procedure can be set for the same tissue sample to obtain the same grinding effect.
5. A large number of simultaneous operations can be performed, and the effect is good.
Technical Parameters:
| Model | BK-24S | BK-48S | BK-96S | BK-96LS | BK-96LDS |
| Standard Capacity | 24*2ml PE adaptor, 1pc | 48*2ml PE adaptor, 1pc |
96*2ml PE adaptor, 1pc |
||
| Refrigerating Function |
No |
Yes, 0 to -50°C | Yes, 20 to -50°C | ||
| Display Mode |
Touch screen display |
5 inches OLED touch screen display | |||
| Discharging Granularity |
~5μm |
||||
| Acceptable Number of Grinding Tubes |
>2pcs |
||||
| Frequency |
0~70Hz |
||||
| Time Setting |
0s~99min |
||||
| Grinding Ball
Material and Size |
Alloy steel, chromium steel, zirconia, tungsten carbide, quartz sand; 0.1~30mm |
||||
| Noise Level |
<55dB |
||||
| Grinding Method |
Wet grinding, dry grinding and low temperature grinding are all available |
||||
| Power Supply |
AC220V, 50/60Hz(Standard); AC110V, 60Hz(Optional) |
||||
| Optional Parts |
1. Adaptor: Common type: 0.2ml*96; 2.0ml*24; 5.0ml*12; 15ml*8; 25ml*4; 50ml*2; 5.0ml*24; 2.0ml*48 etc. Refrigerating type(Can get-196°C): 2.0ml*24; 5.0ml*12; 15ml*8; 25ml*2; 50ml*2; etc. 2. 2~100ml refrigerating grinding tube. They can also be customized. |
||||
| Packing Size(W*D*H) | 480*350*510mm | 530*400*560mm | 570*490*680mm | 850*590*560mm | 550*550*950mm |
| Gross Weight | 25kg | 39kg | 52kg | 74kg | 95kg |
