Microtome

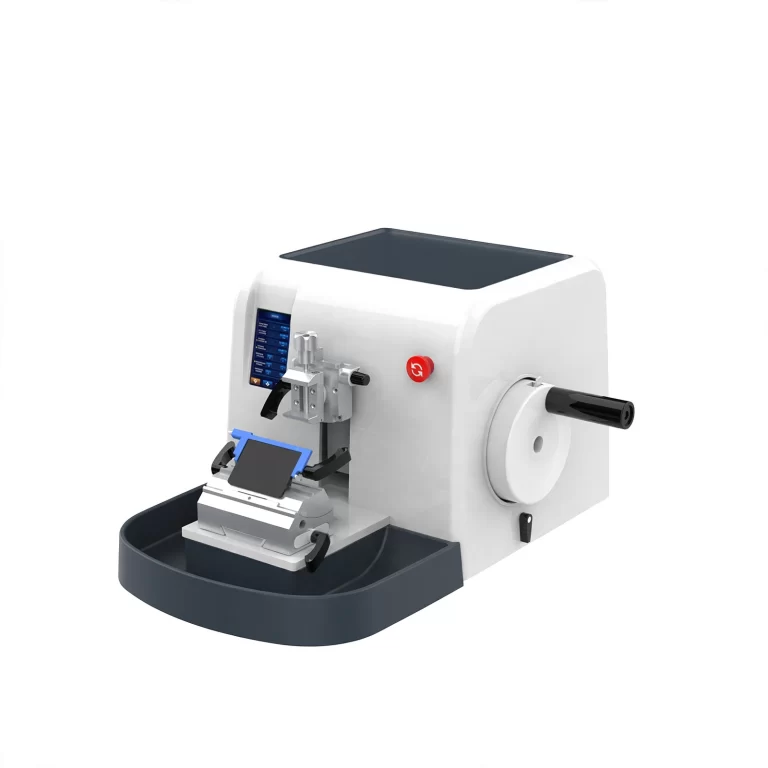

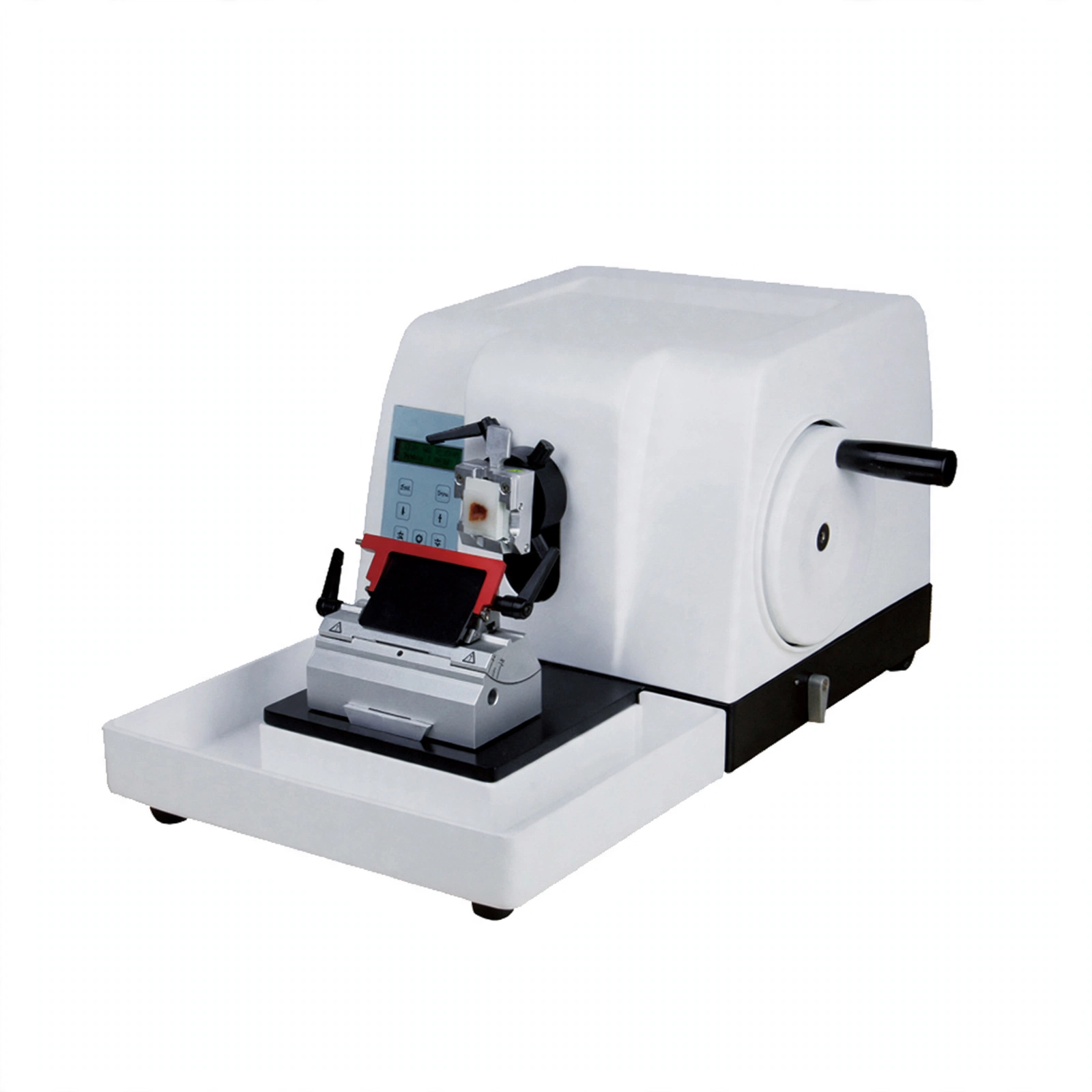

BK-2478 Automatic And Semi-automatic Microtome Machine

Model BK-2478 / BK-2488 / BK-2498

This machine uses a streamlined design, with advanced features, stable and reliable performance and ease of use.

Power
100W / 150W / 150W
Dimensions
585*410*305mm / 575*4…
A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Features:

* Large-volume removable waste tray on the top of housing, convenient to use.

* Imported cross-roller guide rails andhigh-precision screw motion mechanism.

* Fast switching between paraffin block clamp and cassette clamp.

* Hand-wheel balance can be precisely adjustedand can be locked at any position,ensuring safetyand convenience of sectioning.

* Blade holder can be laterally movedwithout direct contact,enabling use of the entire length of the blade. (three different segments)

* The red bar on the blade holder covers the whole length of blade to protect the user and enables easy change of the blade.

* Automatic sectioning speed is adjustable. (BK-2498only)

* Auto slicing controller ensures trimming and slicing switching easily; When it is off, semi-auto slicing or trimming is available.(BK-2498only)

* Safety and emergency braking systems (BK-2498 only)，security alarm systems, driver-overload protection and auto-sleep protection system.(For all 3 models)

* Control system with 3 modes: conventional mode, intelligence sensing mode and whole layer cutting mode.(BK-2488 only)

Models:

Model

BK-2478

 BK-2488 BK-2498
Mode

Semi-automatic without intelligent sensing

 Semi-automatic with intelligent sensing Automatic or Manual Mode without intelligent sensing
Function

Sectioning, trimming, fast forward, fast backward, quick conversion; automatic retraction (exceptBK-2478).
Retraction Range

/

0~50μm ( If 0 is set, retraction function is off )
5~50 (Retraction distance is optional in this range, and increment is 5μm, such as, 5, 10, 15, 25…)
Display

LCD Display:
sectioning thickness,
trimming thickness,
slice count.

 OLED Display:
sectioning thickness, trimming thickness,
slice count.		 LED display:
sectioning thickness,
trimming thickness,
slice count,
slice speed.
Sectioning Thickness Range

0~60μm
0~1.0μm increment 0.25μm
1~10μm increment 1μm
10~20μm increment 2μm
20~60μm increment 5μm

0.25~100μm
0.25~2.5μm increment 0.25μm
2.5~5μm increment 0.5μm
5.0~10μm increment 1μm
10~30μm increment 2μm
30~60μm increment 5μm
60~100μm increment 10μm
Trimming Thickness Range

0 ~60, 0~100,

1~900μm
1~10μm increment 1μm
10~20μm increment 2μm
20~100μm increment 5μm
100~900μm increment50μm

1~600μm
1~10μm increment 1μm
10~20μm increment 2μm
20~50μm increment 5μm
50~150μm increment 10μm
150~600μm increment 50μm
Whole Layer Clearance Distance(Only for BK-2488)

10~6000μm
(10, 12, 15, 20…..6000, after 15μm, the increment is 5μm)
Specimen HorizontalStroke

28mm
Specimen Vertical Stroke

52 mm

70mm
Specimen Orientation XY – 8°, rotation 360°

XY – 8°, rotation ±90°
Mini. Sectioning Thickness

0.25μm
Max. Specimen Size 50*70mm

70*70mm
Feed Speed 450μm/s

1500μm/s,3500μm/s
Precision

±5%
Standard Accessory

Cassette Clamp or Paraffin Block Clamp(Paraffin BlockClamp is acquiescent)
Consumption

100W

 150W
Power Supply

AC110/220V±10%, 50/60Hz
External Size(W*D*H) 585*410*305mm

575*420*330mm

 580*475*340mm
Package Size(W*D*H) 670*550*480mm

670*550*480mm

 680*570*500mm
Gross Weight 45kg

45kg

 60kg
The details

Specifications

Model
BK-2478 / BK-2488 / BK-2498
Mode
Semi-automatic without intelligent sensing / Semi-automatic with intelligent sensing / Automatic or Manual Mode without intelligent sensing
Function
Sectioning, trimming, fast forward, fast backward, quick conversion; automatic retraction (exceptBK-2478).
Retraction Range
/ / 0~50μm ( If 0 is set, retraction function is off )5~50 (Retraction distance is optional in this range, and increment is 5μm, such as, 5, 10, 15, 25...) / 0~50μm ( If 0 is set, retraction function is off )5~50 (Retraction distance is optional in this range, and increment is 5μm, such as, 5, 10, 15, 25...)
Display
LCD Display:sectioning thickness,trimming thickness,slice count. / OLED Display:sectioning thickness, trimming thickness,slice count. / LED display:sectioning thickness,trimming thickness,slice count,slice speed.
Sectioning Thickness Range
0~60μm0~1.0μm increment 0.25μm1~10μm increment 1μm10~20μm increment 2μm20~60μm increment 5μm / 0.25~100μm0.25~2.5μm increment 0.25μm2.5~5μm increment 0.5μm5.0~10μm increment 1μm10~30μm increment 2μm30~60μm increment 5μm60~100μm increment 10μm / 0.25~100μm0.25~2.5μm increment 0.25μm2.5~5μm increment 0.5μm5.0~10μm increment 1μm10~30μm increment 2μm30~60μm increment 5μm60~100μm increment 10μm
Trimming Thickness Range
0 ~60, 0~100,1~900μm1~10μm increment 1μm10~20μm increment 2μm20~100μm increment 5μm100~900μm increment50μm / 1~600μm1~10μm increment 1μm10~20μm increment 2μm20~50μm increment 5μm50~150μm increment 10μm150~600μm increment 50μm / 1~600μm1~10μm increment 1μm10~20μm increment 2μm20~50μm increment 5μm50~150μm increment 10μm150~600μm increment 50μm
Whole Layer Clearance Distance(Only for BK-2488)
10~6000μm(10, 12, 15, 20.....6000, after 15μm, the increment is 5μm)
Specimen HorizontalStroke
28mm
Specimen Vertical Stroke
52 mm / 70mm / 70mm
Specimen Orientation
XY – 8°, rotation 360° / XY – 8°, rotation ±90° / XY – 8°, rotation ±90°
Mini. Sectioning Thickness
0.25μm
Max. Specimen Size
50*70mm / 70*70mm / 70*70mm
Feed Speed
450μm/s / 1500μm/s,3500μm/s / 1500μm/s,3500μm/s
Precision
±5%
Standard Accessory
Cassette Clamp or Paraffin Block Clamp(Paraffin BlockClamp is acquiescent)
Consumption
100W / 150W / 150W
Power Supply
AC110/220V±10%, 50/60Hz
External Size(W*D*H)
585*410*305mm / 575*420*330mm / 580*475*340mm
Package Size(W*D*H)
670*550*480mm / 670*550*480mm / 680*570*500mm
Gross Weight
45kg / 45kg / 60kg
