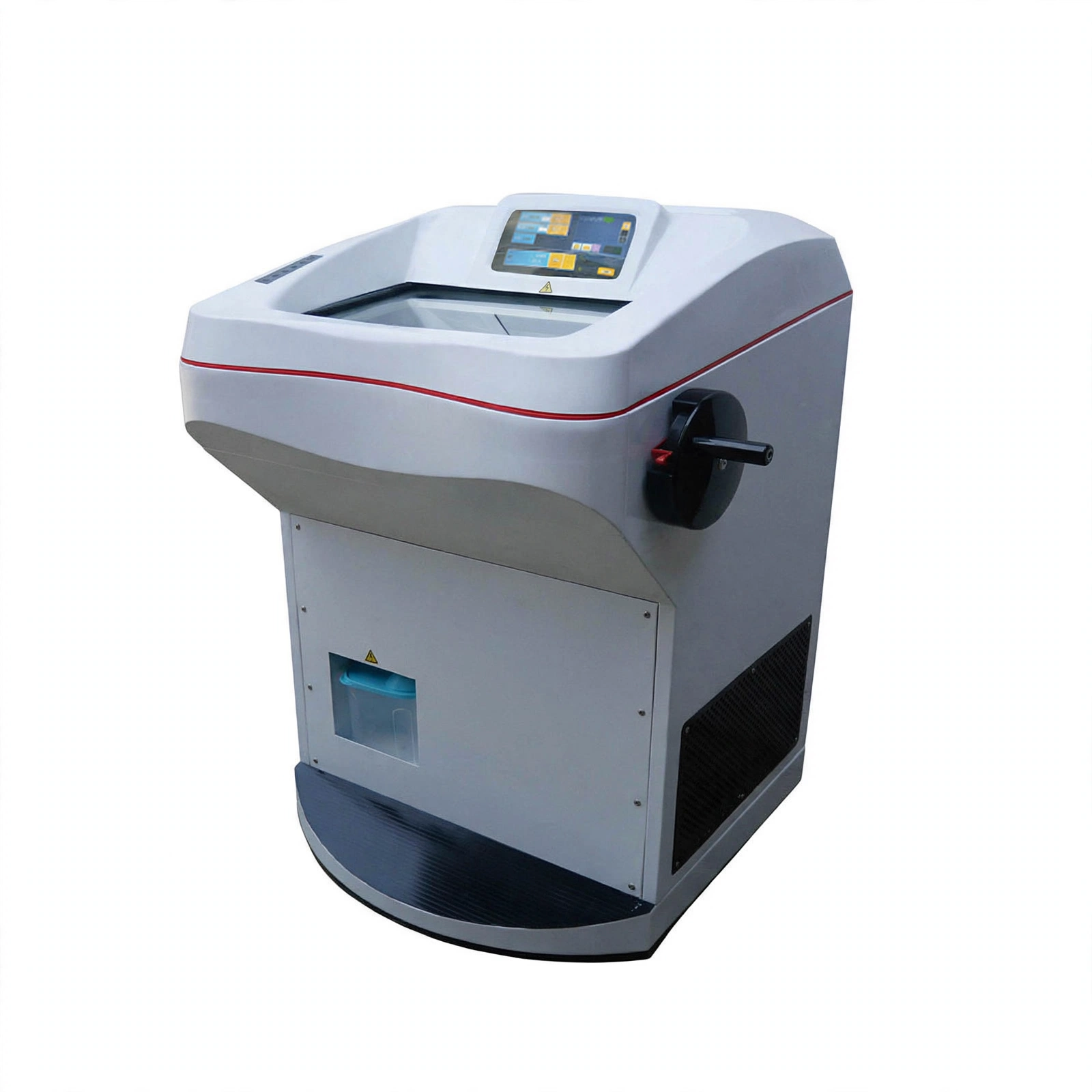

The BK-3000 Cryostat Microtome is belong to one class medical equipment. It is a device for rapid pathological section analysis of human body, animal and plant tissues. It is widely used in hospitals, medical schools, forensics, animal and plant research units for pathological diagnosis, analysis, and research.
Ask about availability, configuration and delivery to your location. We reply personally.
Enquiry only. No payment is taken.Features:
1. The 10-inch color LCD touch screen can separately display the total number of slices and the total slice thickness, slice thickness, specimen retraction value, temperature control, date, time, temperature, timing sleep switch, defrost and other functions. The operation display can be set to switch between Chinese and English operation interface, which is convenient for different users all over the world to operate.
2. Humanized hibernation function: After selecting the hibernation state, the temperature of the freezer compartment can be automatically controlled between -1 and -9°C. After the hibernation is canceled, the sectioning temperature can be reached within 15 minutes.
3. Imported dual compressors refrigerate the freezing box, freezing table, knife holder, sample chuck, and tissue presser at five points respectively.
4. The knife holder is equipped with a blade thruster and a knife guard to cover the full length of the blade, which protects the user safely.
5. Equipped with rubber instrument rack and waste box X-axis 360°, Y-axis 12°universal rotation, snap-on tissue chuck, easier and faster to install the organization
6. Anti-adhesive tissue flattening device, with specimen refrigeration, the temperature can reach -50°, which is convenient for freezing the tissue and saving operation time
The machine is mainly composed of four parts:
1. The upper part of the machine is a microcomputer control part and panel operation, temperature display, and working status display part.
2. The middle part is a low-temperature freezer, which is the part for quick freezing of biopsy tissue and sectioning operation.
3. The lower part is the refrigeration part of the compressor unit.
4. The middle and rear parts are mechanical transmission and motor drive parts.
Technical Parameters:
| Model | BK3000 |
| Chamber temperature | 10℃ ～ -50℃ |
| Freezing shelf temperature | 0℃ ～ -50℃ |
| Temperature control range of sample chuck | 10℃ ～ -50℃ |
| Additional semiconductor refrigeration in the freezer | -60℃ |
| Number of freezing station | 36 pcs |
| Pelletier number | 8 pcs |
| Semiconductor fast cooling working time | 15 minutes |
| Maximum specimen size | 55mm×80mm |
| Vertical stroke | 65mm |
| Horizontal stroke | 22mm |
| Electric feed speed | 0.9mm/s、0.45mm/s |
| Disinfection method | UV |
|
Section thickness range |
0.5μm～100μm Adjustable |
| 0.5μm～5μm Increment0.5μm | |
| 5μm～20μm Increment1μm | |
| 20μm～40μm Increment2μm | |
| 40μm～100μm Increment5μm | |
|
Trimming thickness range |
10μm～600μm Adjustable |
| 10μm～50μm Increment5μm | |
| 50μm～100μm Increment10μm | |
| 100μm～600μm Increment50μm | |
| Specimen retraction | 0～100μm Adjustable，Increment5μm |
| Dimension size(mm) | 700×760×1160mm |
| Weight | 135 KG |
