Blood Collection Monitor

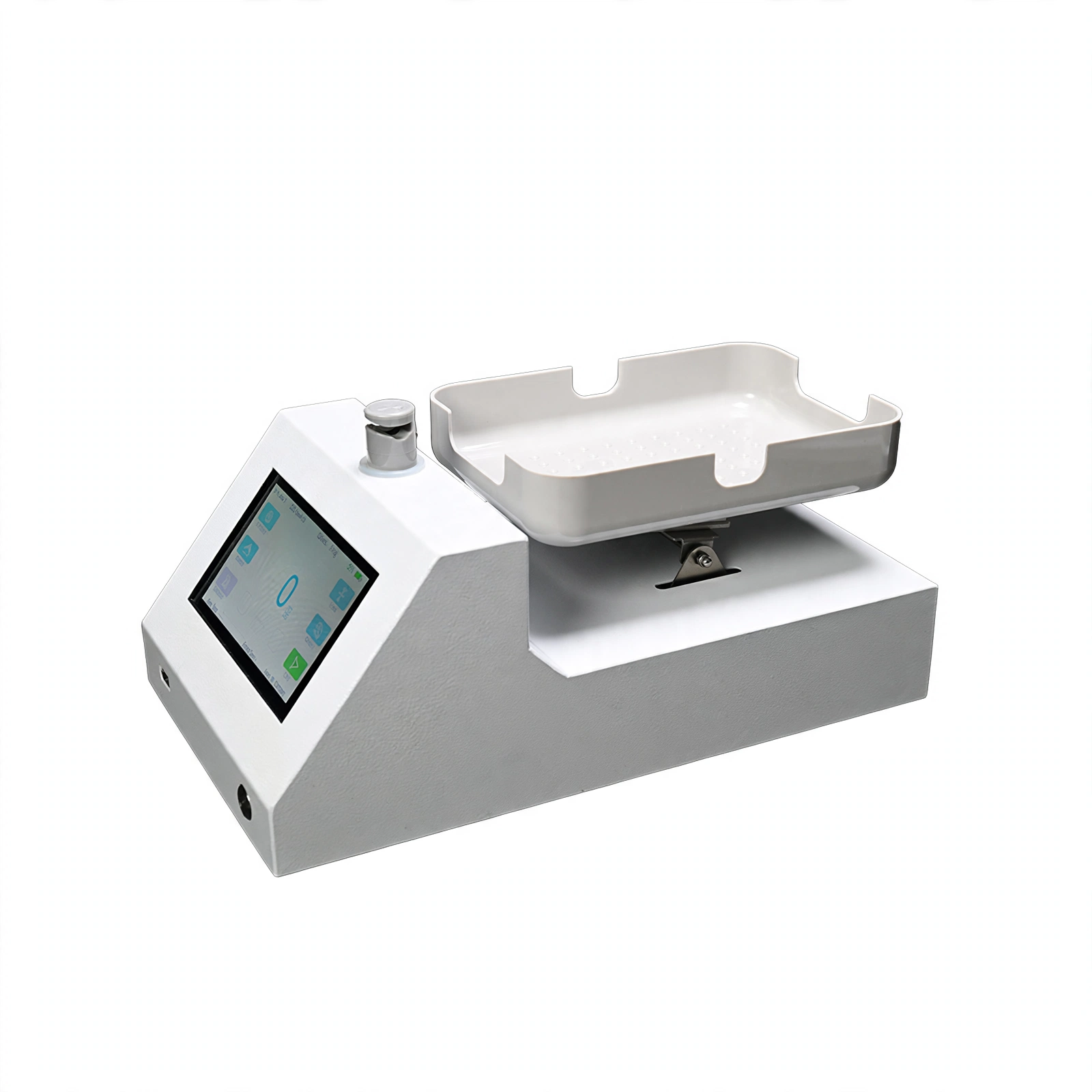

Blood Collection Monitor BCM-12C

Model BCM-12C Blood & clinical

Blood collection monitor has the functions of weighing, zero point calibration, fluid collection control, oscilation and so onIt is an ideal equipment for blood collection, which is suitable for blood centers, blood stations, hospitals and other bloodcollection and supply units.

Power
50W
Net weight
5.2kg
Dimensions
380*220*150mm
A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Features:

1. 7.0 inch HD IPS touch screen, Chinese and English guided graphic operation interface, easy to complete blood collection.

2. The screen also displays the blood collection weight and volume.

3. Microcomputer program control, automatic clamping line, accurate collection of blood volume.

4. There is an alarm when the flow rate is too high and too low, and the flow rate range can be set.

5. Real-time display of blood collection progress and completion.

6. According to the blood collection volume requirements, the corresponding collection preset value can be quickly selected.

7. Automatically record and store up to 999 pieces of collected data, which can be exported and stored in a computer to achieve data information management.

8. Standard of scanning gun.

Technical Parameters:

Model BCM-12C
Measuring Range 20~1200ml

Preset 4 Gears

Collection Presets

 100ml
200ml
300ml
400ml
Display 7.0-inch HD IPS touch screen
Resolution 1ml
Liquid Proportion 1.05g/ml
Collection Speed 0.5~3ml/s
Static Error ±1％
Swing Angle 13±2°
Swing Frequency 30~32r/min
Alarm Buzzer alarm sound
Obstruct  Pipeline Outer diameter φ3~φ6mm, wall thickness: 0.5mm
Obstruct Resistance ≥14N
Ambient Temperature 0~40℃, relative humidity less than 85%
Consumption 50W
Power Supply AC110/220V±10%, 50/60Hz
External Size(W*D*H) 380*220*150mm
Net Weight 5.2kg
Packing Size(W*D*H) 470*300*250mm
Gross Weight 7kg
The details

Specifications

Model
BCM-12C
Measuring Range
20~1200ml
Preset 4 GearsCollection Presets
100ml
Preset 4 GearsCollection Presets
200ml
Preset 4 GearsCollection Presets
300ml
Preset 4 GearsCollection Presets
400ml
Display
7.0-inch HD IPS touch screen
Resolution
1ml
Liquid Proportion
1.05g/ml
Collection Speed
0.5~3ml/s
Static Error
±1％
Swing Angle
13±2°
Swing Frequency
30~32r/min
Alarm
Buzzer alarm sound
Obstruct Pipeline
Outer diameter φ3~φ6mm, wall thickness: 0.5mm
Obstruct Resistance
≥14N
Ambient Temperature
0~40℃, relative humidity less than 85%
Consumption
50W
Power Supply
AC110/220V±10%, 50/60Hz
External Size(W*D*H)
380*220*150mm
Net Weight
5.2kg
Packing Size(W*D*H)
470*300*250mm
Gross Weight
7kg
