Blood Collection Monitor

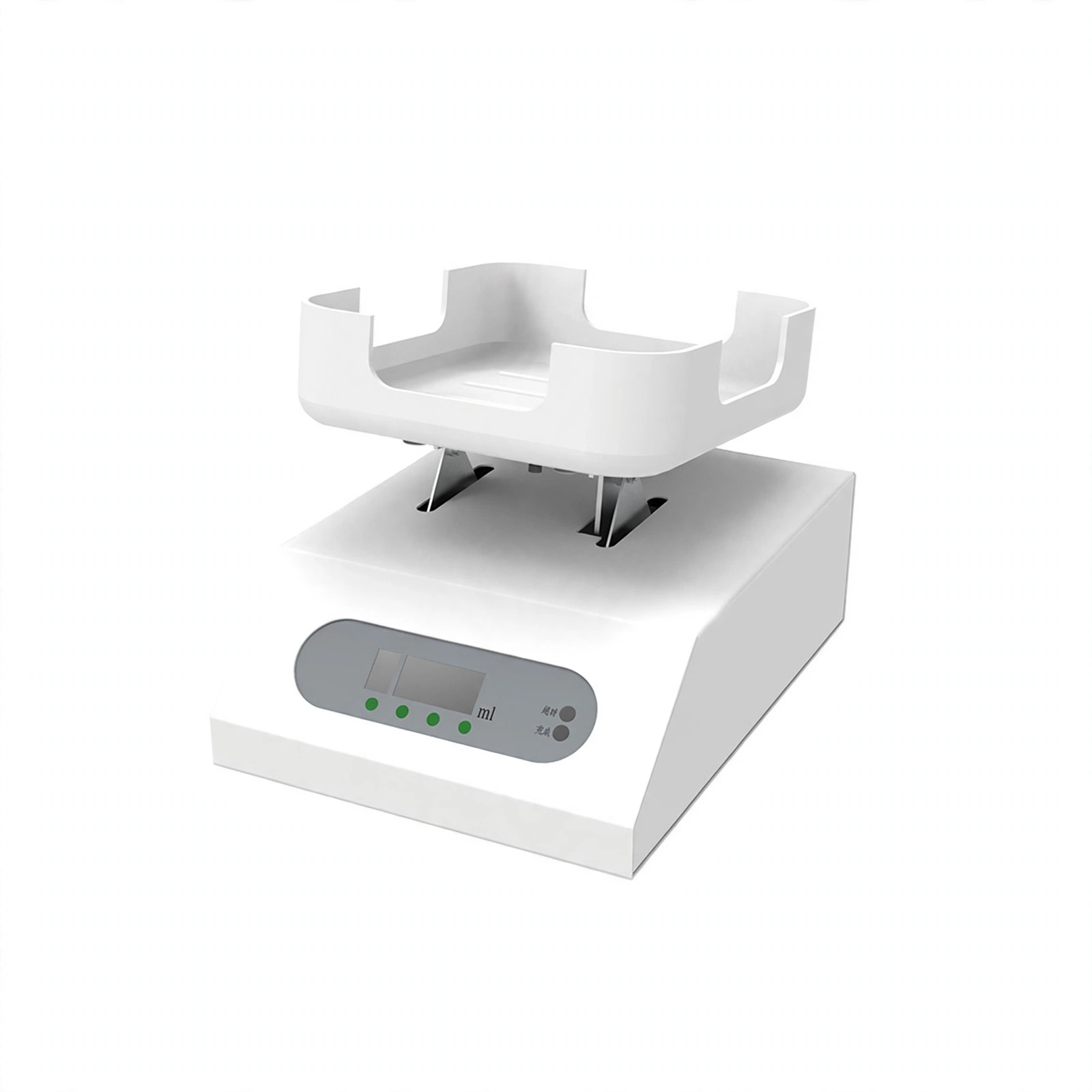

Blood Collection Monitor BCM-4 BCM-12Z

Model BCM-4 BCM-12Z Blood & clinical

Blood collection monitor has the functions of weighing, zero point calibration, fluid collection control, oscilation and so onIt is an ideal equipment for blood collection, which is suitable for blood centers, blood stations, hospitals and other blood collection and supply units.

Battery
Lithium battery, 12V,…
Power
17W / 30W
Net weight
2.5kg / 3.5kg
Dimensions
190*240*165mm / 285*2…
A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Features:

1. Microcomputer control is adopted to realize the integration of weighing and collecting liquid.

2. Built-in large capacity lithium battery, long battery life.

3. With automatic sound and light alarm function, when the amount of liquid reaches the predetermined value or the predetermined time, the alarm prompts.

4. The gentle swing mode is safer for platelets and red blood cells that are easily damaged in the blood.

5. Using new type of weighing sensor, weighing more accurate.

6. Constant speed motor, low noise, long service life.

7. The liquid collection digital display is displayed in milliliters without calculation and conversion, which is more convenient and convenient to use.

Technical Parameters:

Model BCM-4 BCM-12Z
Measuring Range 0~1200ml 0~1200ml
Display LED 3.5-inch color LCD touch screen
Resolution

1ml
Liquid Proportion

1.05g/ml
Collection Speed

0.5~3ml/s
Static Error

±2g
Swing Angle

13±2°
Swing Frequency

30±2r/min
Alarm Collection finish, Automatic sound and light dual alarm Collection finish, Automatic sound and light dual alarm, Clamp obstruction
Obstruct Pipeline / Outer diameter φ3~φ6mm, wall thickness: 0.5mm
Obstruct Resistance / ＜14N
Ambient Temperature

5℃~40℃
Battery Lithium battery, 12V, 5000mAh, 3 hours of battery life /
Consumption 17W 30W
Power Supply

100~240V, 50/60Hz
External Size(W*D*H) 190*240*165mm 285*240*190mm
Net Weight 2.5kg 3.5kg
Packing Size(W*D*H)

380*260*290mm
Gross Weight 3.5kg 5.5kg
The details

Specifications

Model
BCM-4 / BCM-12Z
Measuring Range
0~1200ml
Display
LED / 3.5-inch color LCD touch screen
Resolution
1ml
Liquid Proportion
1.05g/ml
Collection Speed
0.5~3ml/s
Static Error
±2g
Swing Angle
13±2°
Swing Frequency
30±2r/min
Alarm
Collection finish, Automatic sound and light dual alarm / Collection finish, Automatic sound and light dual alarm, Clamp obstruction
Obstruct Pipeline
/ / Outer diameter φ3~φ6mm, wall thickness: 0.5mm
Obstruct Resistance
/ / ＜14N
Ambient Temperature
5℃~40℃
Battery
Lithium battery, 12V, 5000mAh, 3 hours of battery life / /
Consumption
17W / 30W
Power Supply
100~240V, 50/60Hz
External Size(W*D*H)
190*240*165mm / 285*240*190mm
Net Weight
2.5kg / 3.5kg
Packing Size(W*D*H)
380*260*290mm
Gross Weight
3.5kg / 5.5kg
