Ice Maker

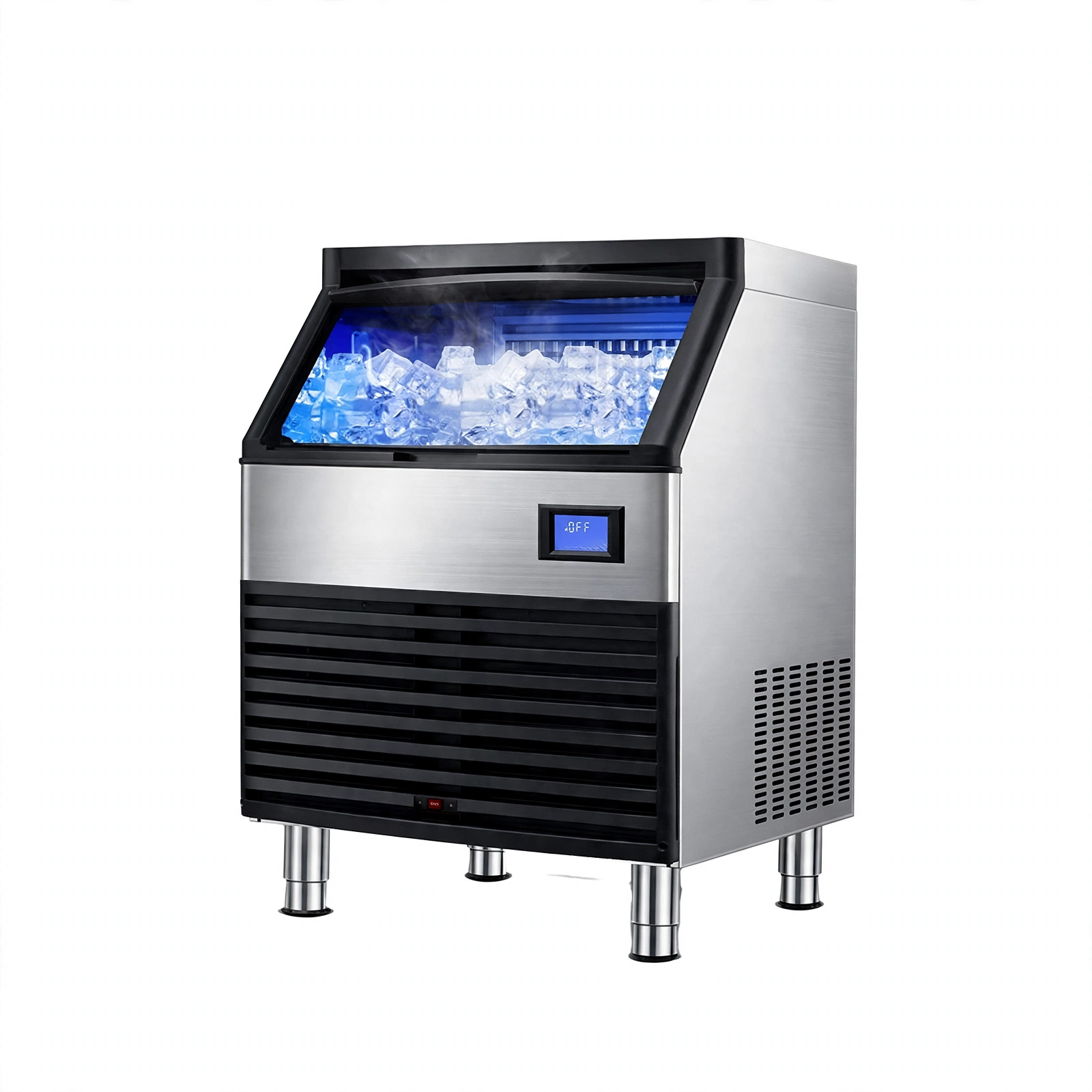

Cube Ice Machine 60kg 220kg 550kg

Model CIM-150 CIM-200 CIM-300 CIM-800

The Cube Ice Machine is a high-efficiency commercial-grade appliance designed to produce crystal-clear, hard cube ice for use in laboratories, healthcare facilities.

Power
720W / 1200W / 3200W…
Net weight
65kg / 80kg / 210kg /…
Dimensions
600*670*965mm / 590*8…
A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Features:

1. Eco-friendly & Efficient: fluorine-free high-efficiency compressor with energy-saving refrigeration system.

2. Continuous Ice Production: simple structure with 4 adjustable feet for easy cleaning.

3. Hygienic & Durable: food-grade stainless steel exterior, stylish and easy to maintain.

4. Fully Automated Operation: smart control system for automatic water intake, ice-making, ice release, storage, and shutdown when full.

5. Dual Independent Cooling Systems: energy-saving design allows separate operation of each unit(Only for CIM-800).

6. Ideal for scientific research labs and seafood preservation(Only for CIM-800).

Usage Notes:

1. Water Supply: connect to tap water (0.2~0.7 MPa pressure required).

2. Ventilation Space: ≥100 mm clearance on both sides; ≥150 mm clearance at the rear.

3. Maintenance: clean the condenser every 6 months to ensure optimal cooling and longevity.

Technical Parameters:

Model CIM-150 CIM-200

CIM-300

 CIM-800
Ice Making Capacity(kg/24h) 150 200

300

 800
Max. Ice Storage Capacity

60kg

220kg

 550kg
Ice Shape

Cube ice: 22*22*22mm
Way of Condensation

Air-cooling

Water-cooling
Ambient Temperature

5~40℃
Compressor

Panasonic Wanbao

GMCC
Refrigerant R290, 0.7kg R290, 0.8kg

R290, 0.95kg

 R290, 1.1kg
Standard Accessory

Ice scoop*1, water inlet hose*1, drain hose*1, spare sealing washer*1
Consumption

720W

1200W

 3200W
Power Supply

AC 220V, 50Hz(Standard); 110V, 60Hz, 220V, 60Hz(Optional)
External Size(W*D*H)

600*670*965mm

590*830*1580mm

 1220*910*1840mm
Package Size(W*D*H)

740*720*930mm

Main machine: 610*730*680mm

Ice storage bin: 610*930*970mm

 Main machine: 1270*690*690mm

Ice storage bin: 1270*960*1200mm
Net Weight

65kg

80kg

 210kg
Gross Weight

70kg

87kg

 230kg
The details

Specifications

Model
CIM-150 / CIM-200 / CIM-300 / CIM-800
Ice Making Capacity(kg/24h)
150 / 200 / 300 / 800
Max. Ice Storage Capacity
60kg / 220kg / 550kg / 550kg
Ice Shape
Cube ice: 22*22*22mm
Way of Condensation
Air-cooling / Water-cooling / Water-cooling / Water-cooling
Ambient Temperature
5~40℃
Compressor
Panasonic Wanbao / GMCC / GMCC / GMCC
Refrigerant
R290, 0.7kg / R290, 0.8kg / R290, 0.95kg / R290, 1.1kg
Standard Accessory
Ice scoop*1, water inlet hose*1, drain hose*1, spare sealing washer*1
Consumption
720W / 1200W / 3200W / 3200W
Power Supply
AC 220V, 50Hz(Standard); 110V, 60Hz, 220V, 60Hz(Optional)
External Size(W*D*H)
600*670*965mm / 590*830*1580mm / 1220*910*1840mm / 1220*910*1840mm
Package Size(W*D*H)
740*720*930mm / Main machine: 610*730*680mmIce storage bin: 610*930*970mm / Main machine: 1270*690*690mmIce storage bin: 1270*960*1200mm / Main machine: 1270*690*690mmIce storage bin: 1270*960*1200mm
Net Weight
65kg / 80kg / 210kg / 210kg
Gross Weight
70kg / 87kg / 230kg / 230kg
