Ice Maker

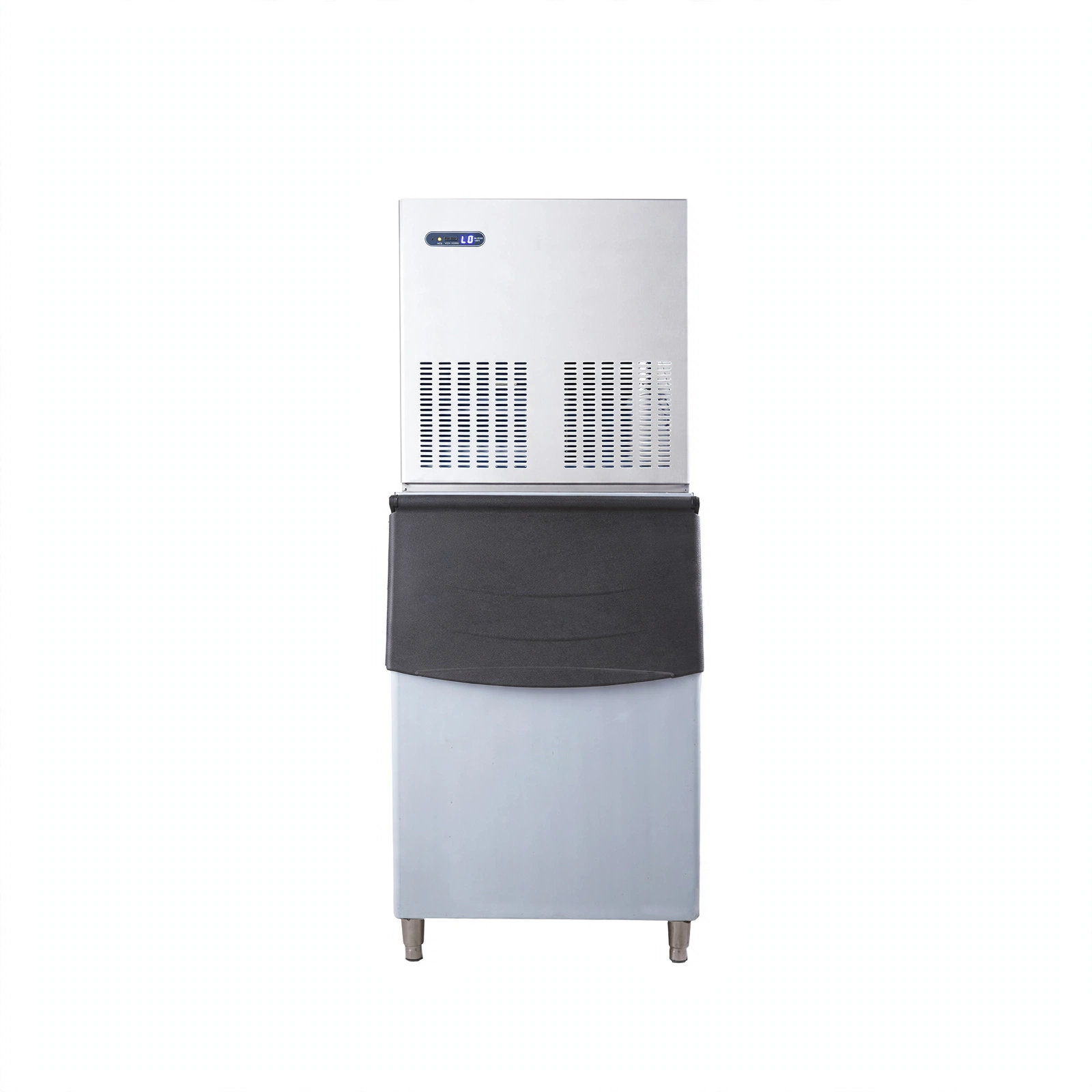

Split-Type Flake lce Maker FIM300 FIM500

Model FIM300 FIM500

Various types of experiments, hospitals, schools, laboratories, medical, chemical applications, supermarkets hotels and other seafood products stores etc.

A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Technical Parameters:

Model FIM300 FIM500
Ice Making Capacity(kg/24h) 300 500
Ice Storage Capacity 200kg 300kg
Ice Shape Small particle of irregular snow ice
Input Current(W) 1360W 1650W
Way of Condensation Air cooling
Ambient Temperature 10~35℃
Water Temperature 2~15℃
Tank Shell Stainless steel
Compressor SECOP Embraco
Refrigerant R404a, 420g R404a, 600g
Standard Accessories Water inlet pipe*1, Drainage pipe*1, Ice spoon*1
Optional Accessories Filter
Power Supply AC220V, 50/60Hz(Standard); 110V, 60Hz(Optional)
External Size(W*D*H)mm Head Size 565*575*570mm 600*760*740mm
Ice Tank Size 570*800*1020mm 760*840*1120mm
Package Size(W*D*H)mm Head Size 675*680*880mm 720*860*995mm
Ice Tank Size 600*835*920mm 810*900*1050mm
Net Weight 95kg 125kg
Gross Weight 143kg 175kg
Applicable Area Various types of experiments, hospitals, schools, laboratories, medical, chemical applications, supermarkets, hotels and other seafood products stores etc.
