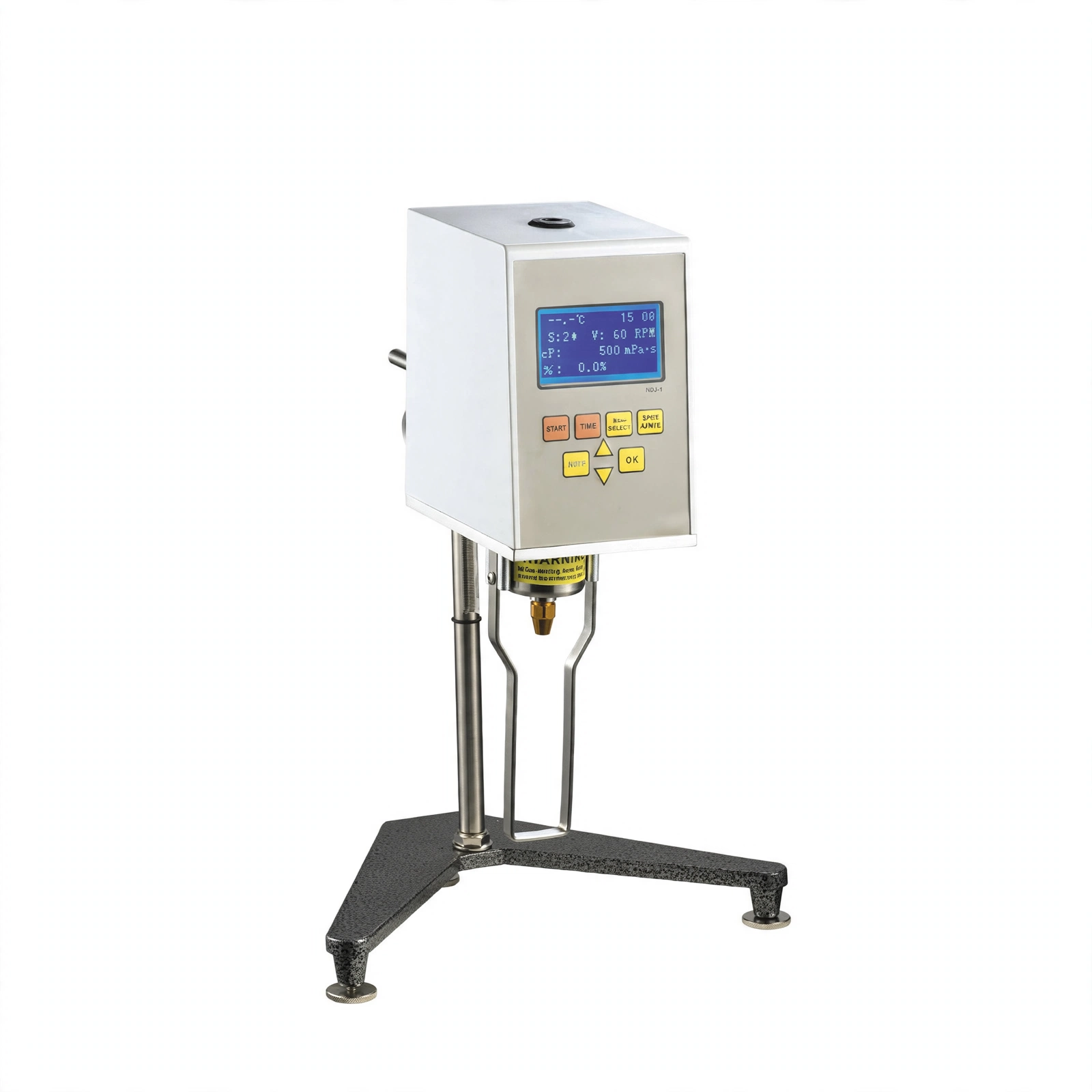

The Digital Viscometer is a high-precision instrument designed to measure the viscosity of liquids in industries such as food& beverage, cosmetics, chemicals, and petroleum.
Ask about availability, configuration and delivery to your location. We reply personally.
Enquiry only. No payment is taken.Features:
BDV-S series digital viscometer:
1. Central control circuit: 16 bit MCU.
2. Gearless driving, LCD display.
3. Optional accessories: Printer(BDV-5S and BDV-8S) and RTD temperature probe(Not including BDV-1S).
BDV-N series digital viscometer:
1. Measurement is more larger than BDV-S series.
2. Rotating speed is improved to non-polar shift.
3. RTD temperature probe can timely monitor the temperature of the sample.
4. Optional software: Data Collecting, Analysis and Plot Software(Only BDV-N series).
Technical Parameters:
| Model | BDV-1S | BDV-9S | BDV-5S | BDV-8S | BDV-1N | BDV-2N | BDV-3N | BDV-4N |
| Measured Range(mPa.s) | 1~100,000 | 1~6,000,000 | 20~100,000 | 20~2,000,000 | 20~600,000 | 12~6,000,000 | 160~80,000,000 | 50~10,000,000 |
| Rotation Speed(rpm) | 6, 12, 30, 60 | 0.1, 0.3, 0.6, 1.5, 3, 6, 12, 30, 60 | 6, 12, 30,
60 |
0.3, 0.6, 1.5, 3, 6, 12, 30, 60 | 1~60 | 0.1~99.9 | 0.1~99.9 | 0.1~200 |
| Number of Spindle |
4 types(L1~L4) |
4 types(L1~L4) |
4 types(21.27.28.29) | |||||
| Measurement Accuracy | ±5%(FS)(Newtonian Fluid) | ±3(FS)(Newtonian Fluid) |
±1%(FS)(Newtonian Fluid) |
|||||
| Repeatability |
±0.5%(FS)(Newtonian Fluid) |
|||||||
| Power Supply |
AC100~240V, 50/60Hz |
|||||||
| Standard Accessory | / | / |
RS232 standard output interface |
RTD temperature probe RS232 standard output interface |
||||
| Optional Accessory | / | RTD temperature probe |
RTD temperature probe, Specially used printer |
Specially used printer |
||||
| LO Spindle is for Option Measured Range(mPa.s) |
1~10 |
1~100 | 1~2000 | 1~600 | 0.6~6000 | 6~6000 | 3~6000 | |
| Package Size(W*D*H) |
475*220*375mm |
420*350*380mm |
410*350*560mm | |||||
| Gross Weight |
7.5kg |
8.5kg |
10.5kg | |||||
Request a quote on WhatsApp, or add several items to your enquiry list and send them together.
We confirm configuration, voltage, accessories, availability and a delivered price.
We handle procurement, packing and international shipping to your facility.
This instrument can be widely used to measure the viscosity of oils, paints, food, coatings, paper making, cosmetics, chemicals, capsule adhesives and other fluids.
The main measurement is solid at room temperature and liquid after high temperature heating, such as asphalt, hot melt adhesive, polyethylene wax and so on.This type of viscometer is capable of withstanding and accura…

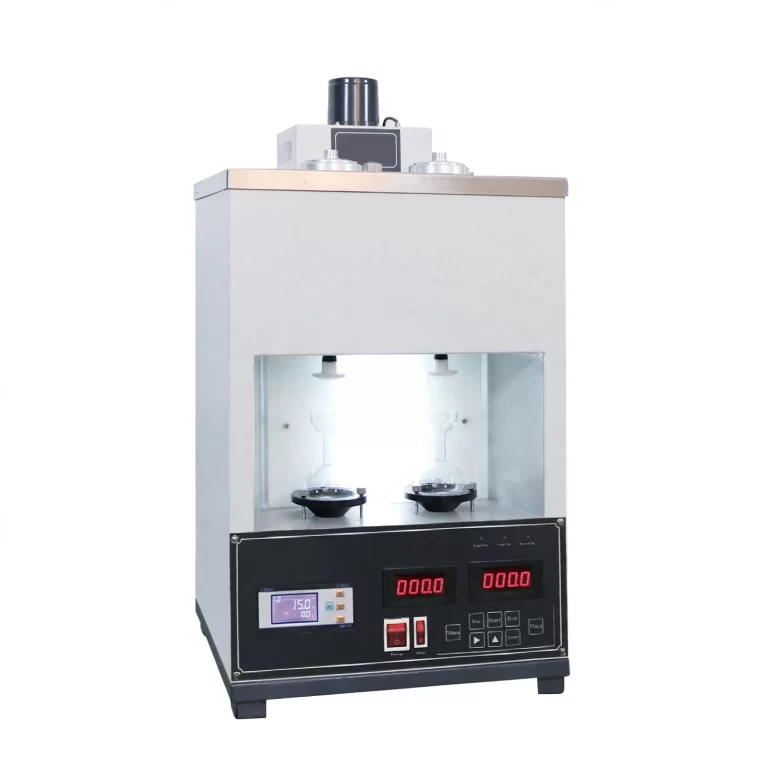

The instrument is designed and made as per T0623 and ASTM D88 Bitumen Saybolt Viscosity Test (Saybolt Viscometer Method) in the JTJ052 Standard Test Methods of Bitumen and Bituminous Mixtures for Highway Engineering.…
It is suitable for the viscosity and property testing of edible gelatin, medicinal gelatin, industrial gelatin, bone gelatin and other gelatin, as well as the viscosity detection of agar, protein powder and other gela…
