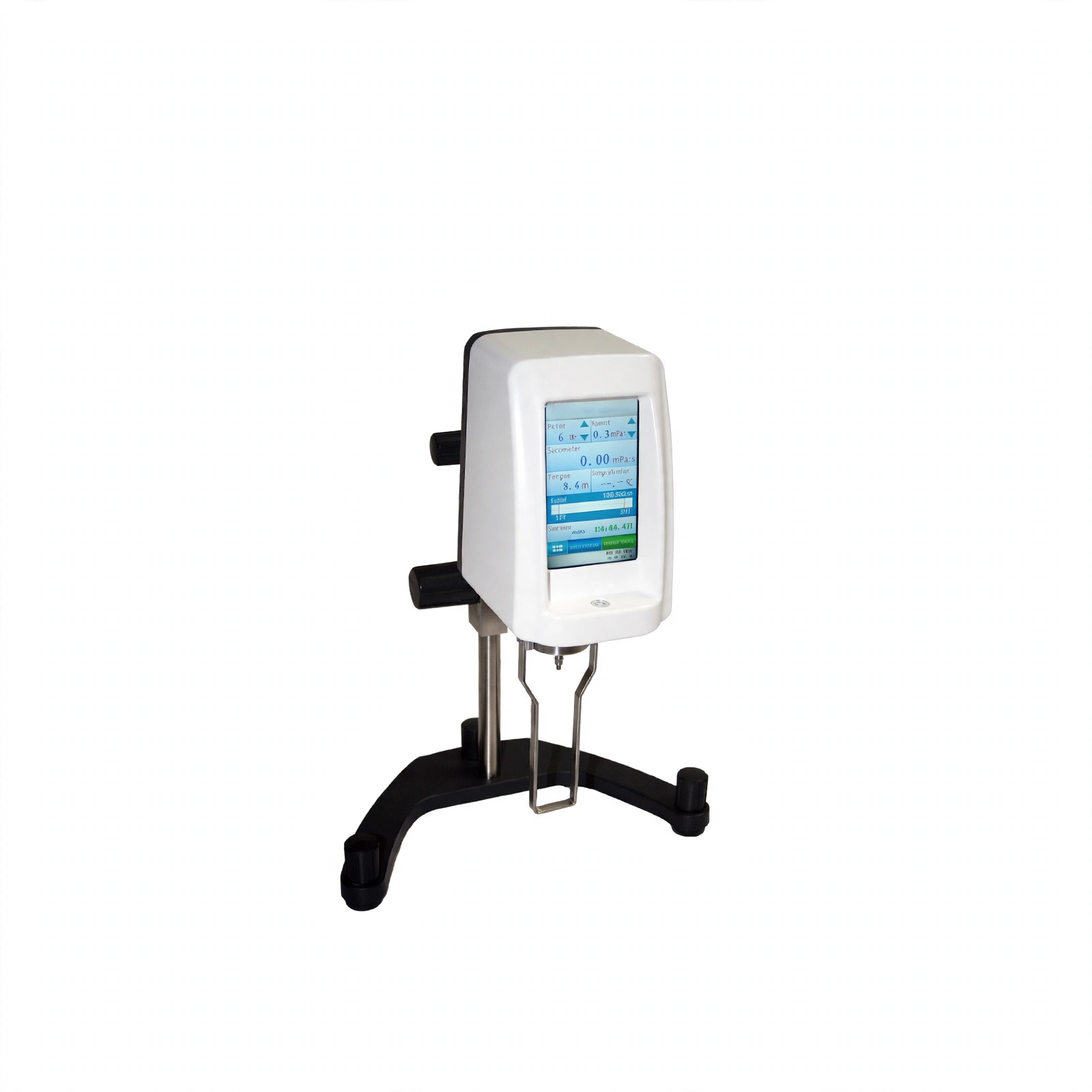

This instrument can be widely used to measure the viscosity of oils, paints, food, coatings, paper making, cosmetics, chemicals, capsule adhesives and other fluids.
Ask about availability, configuration and delivery to your location. We reply personally.
Enquiry only. No payment is taken.Features：
1. With automatic test mode.
2. With data storage function.
3. 5-inch LCD color touch screen, display parameters more intuitively, easy to use and operate, beautiful and generous shape.
4. Equipped with RS232 interface, it can be connected to the printer for output use, diversified to meet the public demand.
5. Equipped with temperature sensor interface, it can detect the sample temperature in real time.
6. Equipped with computer USB interface, easy to connect with the computer output use.
7. Microcomputer control technology, high measurement sensitivity, reliable test results, good anti-interference.
8. The rotor connection interface uses universal joint, easy to turn.
9. Handwheel for high wear-resistant, high-performance engineering plastic and stainless steel materials, easy to operate.
10. Chinese and English display, can be switched randomly.
11. It can be used to measure the absolute viscosity of Newtonian liquids and the apparent viscosity of non-Newtonian liquids.
Technical Parameters:
| Model | BDV-5SC | BDV-8SC | BDV-9SC |
| Measured Range | 1~1*10^5mpa.s | 1~2*10^6mpa.s | 1~6*10^6mpa.s |
| Measurement Accuracy |
±2%(FS)(Newtonian liquid) |
||
| Repetitive Error |
1%(FS)(Newtonian liquid) |
||
| Display Accuracy |
0.01mpa.s |
||
| Single Measurement Automatic |
When the measurement result is stable, the rotor stops automatically |
||
| Rotor Specification |
Standard: 1#, 2#, 3#, 4# Optional: 0# |
||
| Rotor Speed(rpm) | 6, 12, 30, 60 | 0.3, 0.6, 1.5, 3, 6, 12, 30, 60 | 0.1, 0.3, 0.6, 1.5, 3, 6, 12, 30, 60 |
| Standard Accessory |
Temperature sensor interface, computer USB interface, RS232 interface |
||
| Work Environment |
Temperature: 5~35℃ Relative Humidity: ≤80% |
||
| Power Supply |
AC110~240V, 50/60Hz, DC 12V |
||
| Package Size(W*D*H) |
200*440*480mm |
||
| Net Weight |
6.3kg |
||
| Gross Weight |
10.6kg |
||
