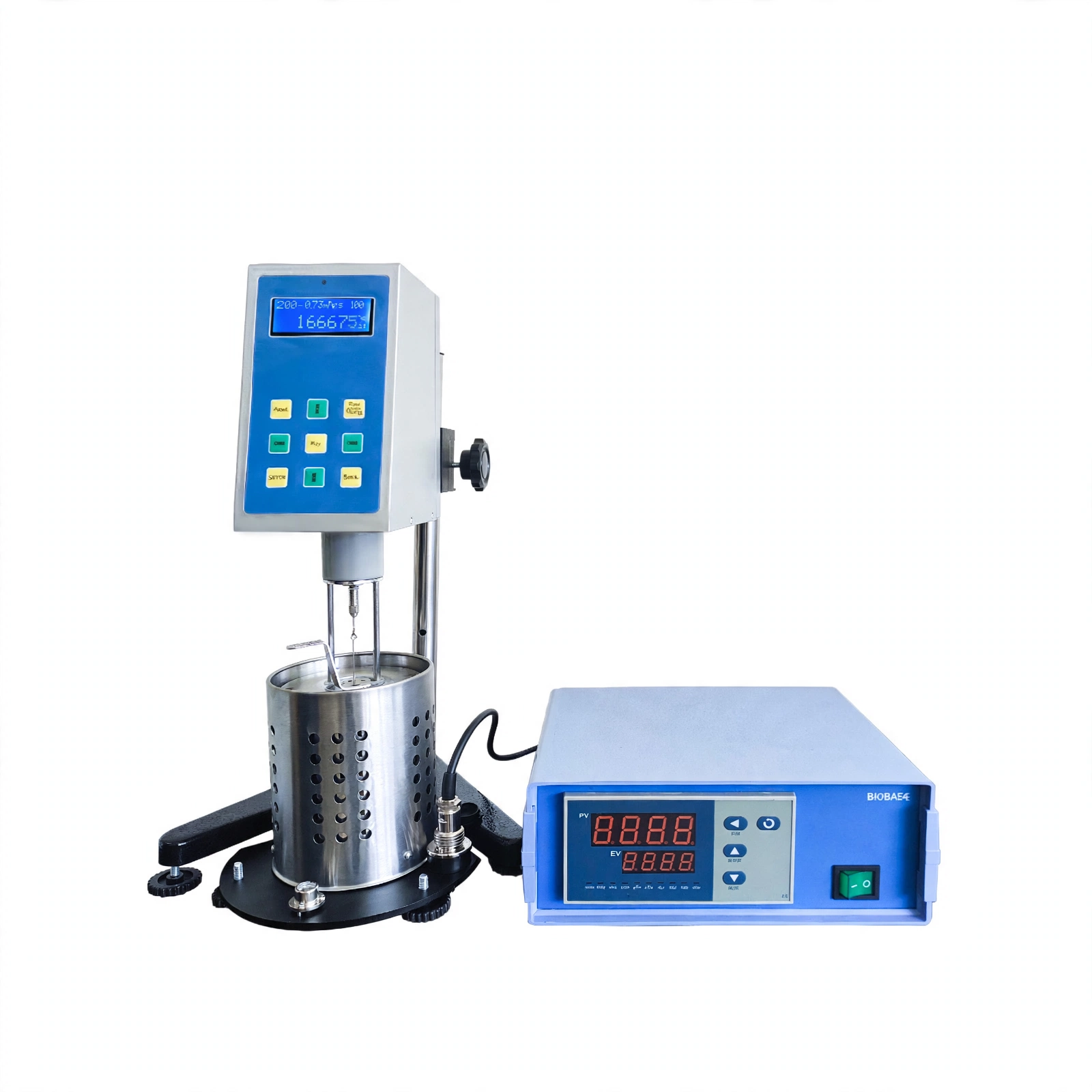

The main measurement is solid at room temperature and liquid after high temperature heating, such as asphalt, hot melt adhesive, polyethylene wax and so on.This type of viscometer is capable of withstanding and accurately measuring the flow characteristics of high-temperature fluids up to several hundred degrees celsius.
Ask about availability, configuration and delivery to your location. We reply personally.
Enquiry only. No payment is taken.Features：
1. The measured data can be displayed directly on the LCD screen without secondary calculation. < VSoft Viscometer Data Collection,Analysis and Graphing Software > can also be selected to realize data acquisition and analysis and to compile the viscosity-temperature curve
2. High subdivision stepper motor, accurate and stable speed
3. LCD liquid crystal with blue backlight function can directly display the viscosity, speed, percentile torque, spindle number and the maximum viscosity and temperature of the selected spindle at the current speed. BDV-2 series can also show shear rate and shear stress. Viscosity value shows continuous change, beyond the measurement range there is an alarm sound prompt
4. High-temperature furnace uses embedded integral heating, uniform heating and small thermal inertia
Technical Parameters:
|
Model |
BDV-1H | BDV-1HB | BDV-1L |
BDV-2H |
BDV-2HB | BDV-2L | ||
|
Measuring Range(mPa·s) |
100~10,000,000 | 800~80,000,000 | 10~1,000,000 |
50~10,000,000 |
400~80,000,000 | 5~1,000,000 | ||
|
Rotating Speed(RPM) |
0.1~99.9(Stepless Gear) |
0.1~200(Stepless Gear) |
||||||
|
Number of Spindles |
Spindles(21, 27, 28, 29) are equipped with the product |
|||||||
|
Measurement Accuracy |
±1% full scale range in use |
|||||||
|
Repeatability |
±0.5% full scale range in use |
|||||||
|
Sample Capacity(mL) |
10~20 |
|||||||
|
Temperature Control Range |
10℃ above ambient~300℃ |
|||||||
|
Power Supply |
Viscometer |
AC110~220V, 50/60Hz |
||||||
| Heating Furnace |
AC220V, 50/60Hz; 110V, 60Hz(Optional) |
|||||||
|
LCD Display |
Viscometer |
The LCD screen can display the viscosity, speed, torque spindle, temperature and the maximum viscosity can be measured in the current spindle speed value |
The LCD screen can display the viscosity, speed, torque spindle, temperature，shear rate, shear force and the maximum viscosity can be measured in the current spindle speed value |
|||||
| Temperature Controller |
Display setting temperature and actual measuring temperature |
|||||||
|
Standard Accessories |
Spindles(21, 27, 28, 29), temperature controller, heating furnace, RTD temperature probe |
|||||||
|
Optional Accessories |
Ultra-low viscosity adapter, spindles(L0, R1, R2, R3, R4, R5, R6, R7)(For BDV-1H, BDV-1HB, BDV-2H, BDV-2HB), spindles (L0, L1, L2, L3, L4, L5) (For BDV-1L, BDV-2L), data acquisition, analysis, and plotting software, DV programmable download software, constant temperature bath, standard solution(25℃), WR1401 viscometer wireless remote control |
|||||||
|
Packing Size(L*W*H) |
Viscometer |
400*350*560mm |
||||||
| Temperature Controller |
400*350*380mm |
|||||||
|
Gross Weight |
15kg |
|||||||
