Fume Hood

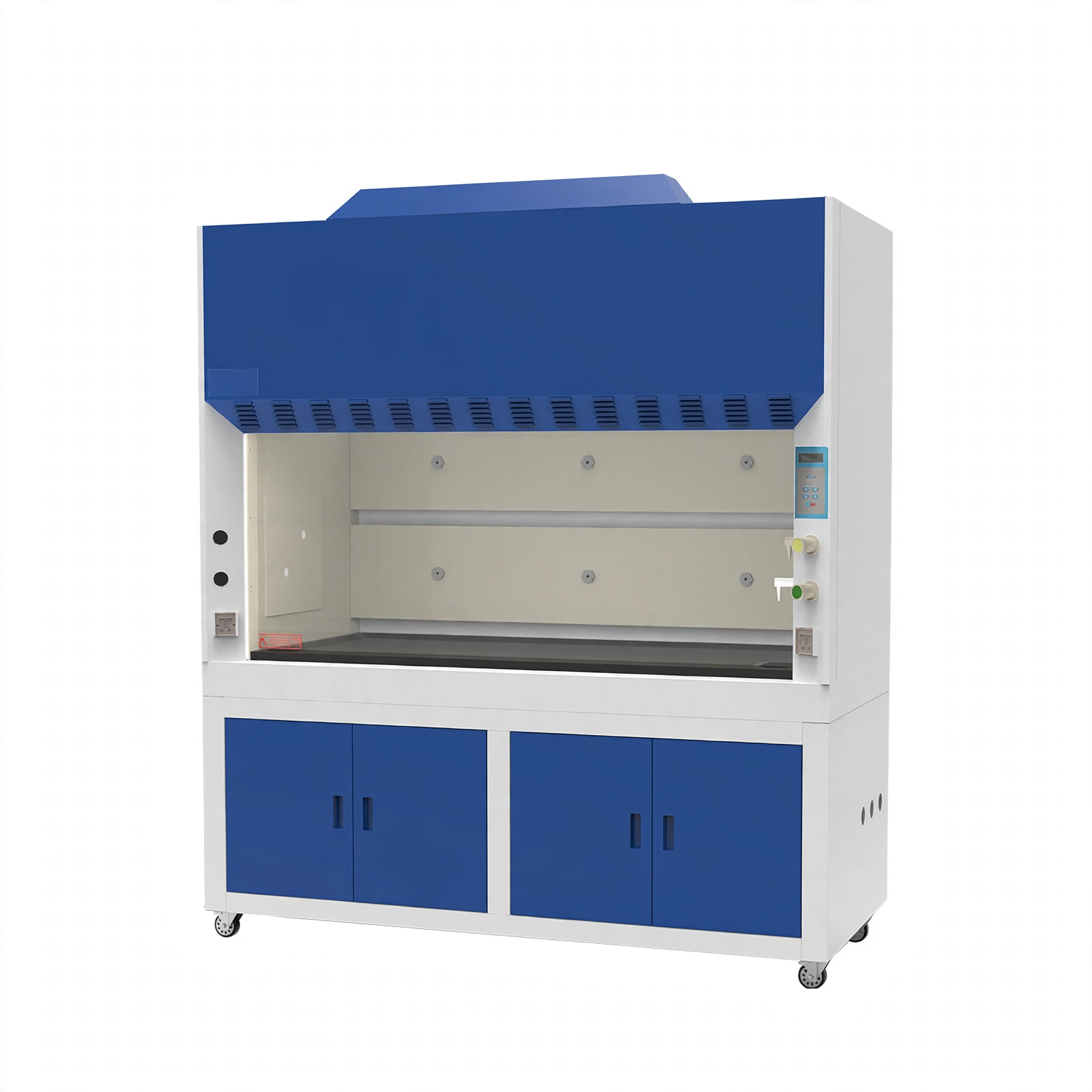

Ducted Fume Hood FH1000(A)

Model FH1000(A), FH1200(A), FH1500(A), FH1800(A)

Fume Hood is a kind of negative pressure ventilation system for protecting operator and laboratory environment. Room air flows inward from the front opening of the Fume Hood and is consistently ventilated by the extract blower. Therefore, contaminated fumes, vapors, toxic gasses, aerosol and corrosive substance which are probably generated during experiments could be prevented from spreading to the operator or into the laboratory room. In addition, the polluted air could be purified by the active carbon filter(optional) before exhausting through the duct. Thus, the outdoor environment could also be protected.

A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Features:
1. UV lamp for sterilization.

2. Resistant to weak acid and alkali.

3. Adjustable air speed: 9 levels.

4. Motorized front window, height adjustable.

5. Microprocessor control system, LED display.

6. With memory function in case of power-failure.

Technical Parameters:

Model

 FH1000(A) FH1200(A) FH1500(A) FH1800(A)

External Size(W*D*H)

 1040*800*2200mm 1240*800*2200mm 1540*800*2200mm 1840*800*2200mm

Internal Size(W*D*H)

 820*670*730mm 1020*670*730mm 1320*670*730mm 1620*670*730mm

Work Surface Height

850mm

Max Opening

520mm

Air Velocity

0.3~0.8m/s

Exhaust Air Volume

 590m³/h 730m³/h 950m³/h 1170m³/h

Noise

≤68dB

Exhaust Duct

PVC, Standard length: 5 meters

Φ300mm

LED Lamp

 8W*1 12W*1 16W*1 16W*1

UV Lamp

Emission of 253.7 nanometers for most efficient decontamination

Blower

Built-in centrifugal blower, Speed adjustable

Front Window

5mm toughened glass, Motorized, Height adjustable

Power Supply

AC220±10%, 50/60Hz; 110V±10%, 60Hz

Consumption

 400W 400W 500W 500W

Material

 Exterior

Cold-rolled steel with anti-bacteria powder coating
Interior

Compact laminate board with good acid and alkali resistance function
Work Table

Chemical resistant phenolic resin

Standard Accessory

UV lamp*2, LED lamp, Water tap, Gas tap, Water sink, Base cabinet

Total load of 2 waterproof sockets: 500W

5 meters PVC exhaust duct, pipe strap*2

Optional Accessory

Active carbon filter, HEPA filter

Gross Weight

 191kg; 79kg 207kg; 84kg 243kg; 100kg 285kg;113kg

Package

 Main Body 1190*995*1660mm 1390*995*1680mm 1690*995*1660mm 1990*995*1660mm
Base Cabinet 1190*995*930mm 1390*995*945mm 1690*995*930mm 1990*995*930mm
The details

Specifications

Ask our team for the full specification sheet for this model.
