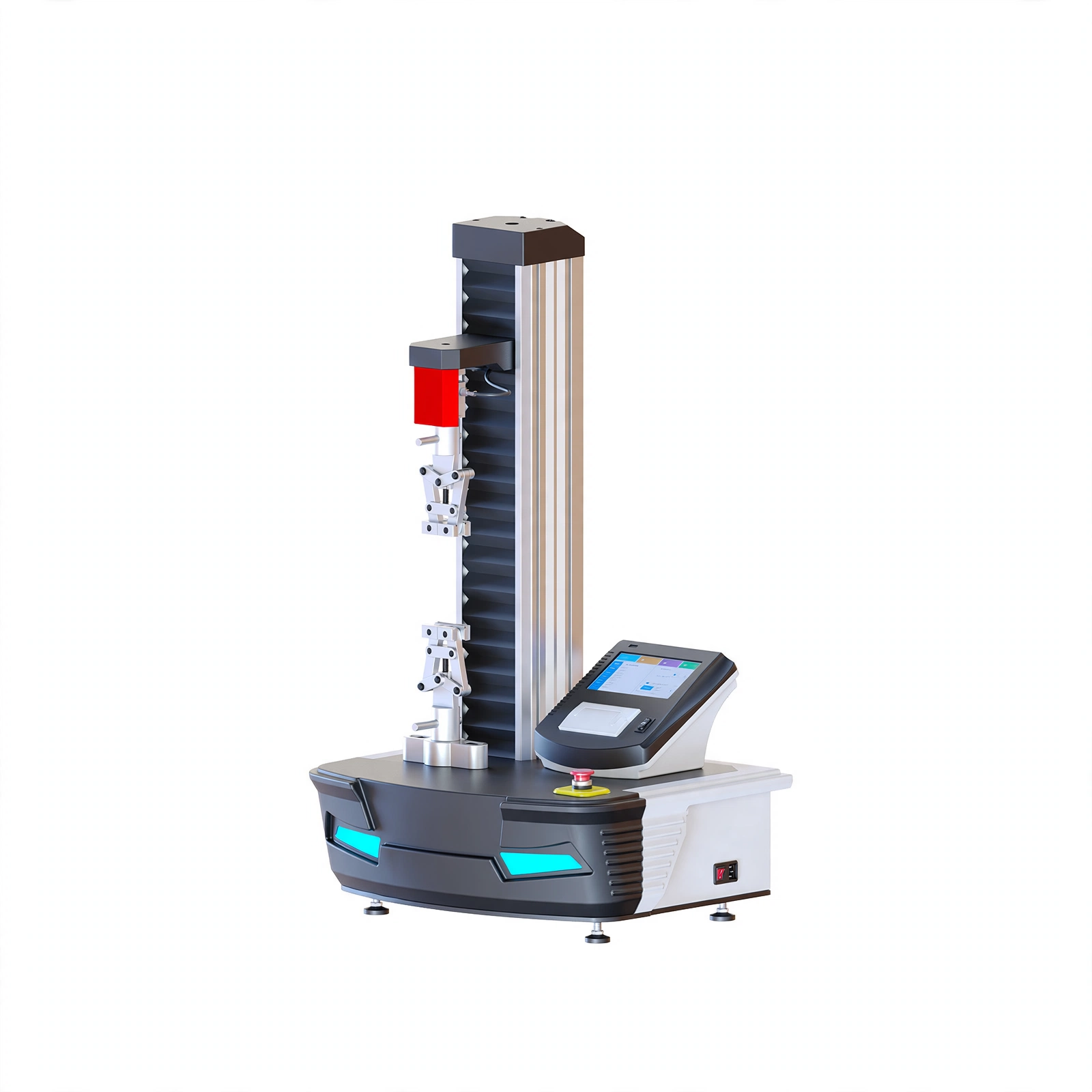

It is a precise equipment used for conducting mechanical performance testing on various materials(such as metals, non-metals, composite materials, etc.). It can simulate various stress conditions including tension, compression, bending, shear, peeling, and tearing, and accurately measure key parameters such as force, displacement, deformation, stress, and strain during the material's stress process. It is widely applied in fields such as material research and development, quality inspection, industrial production, and scientific research experiments.
Ask about availability, configuration and delivery to your location. We reply personally.
Enquiry only. No payment is taken.Features:
1. Real-time curve display: The system offers two display methods for curves: a convenient small curve interface display in the main interface, and a “single graph” large curve interface display.
2. Real-time data display: The system can simultaneously display 4 types of data, namely force value, displacement, deformation, and speed.
3. Overload emergency shutdown device, up and down travel limit device, automatic breakpoint shutdown function.
4. Machine automation: The entire testing process, including measurement, display, and control, is automatically completed by the digital display system. The test results will be automatically archived upon completion.
Technical Parameters:
| Model |
BK-UTM5 |
||||||
| Max Testing Force | 50N | 100N | 200N | 500N | 1000N | 2000N | 5000N |
| Accuracy Level |
Level 1 |
||||||
| Type |
Single-arm structure |
||||||
| Limit of Allowable Error for Testing Force Indication |
≤±1% of Indication |
||||||
| Force Measurement Range |
2%~100%FS |
||||||
| Force Resolution |
1/250000 of the maximum test force |
||||||
| Limit of Indication Error for Displacement |
≤±1% of Indication |
||||||
| Minimum Displacement Resolution |
0.01mm |
||||||
| Beam Speed Range |
0.01~500mm/min |
||||||
| Relative Error of Beam Speed |
≤±1% |
||||||
| Stretching Distance |
700mm |
||||||
| Power Supply |
AC220V, 50/60Hz(Standard); AC110V, 50/60Hz(Optional, external transformer) |
||||||
| External Size(L*W*H) |
420*280*1150mm |
||||||
| Net Weight |
120kg |
||||||
| Packing Size(L*W*H) |
550*600*1600mm |
||||||
| Gross Weight |
135kg |
||||||
Ask our team for the full specification sheet for this model.
Request a quote on WhatsApp, or add several items to your enquiry list and send them together.
We confirm configuration, voltage, accessories, availability and a delivered price.
We handle procurement, packing and international shipping to your facility.
