Fat Analyzer

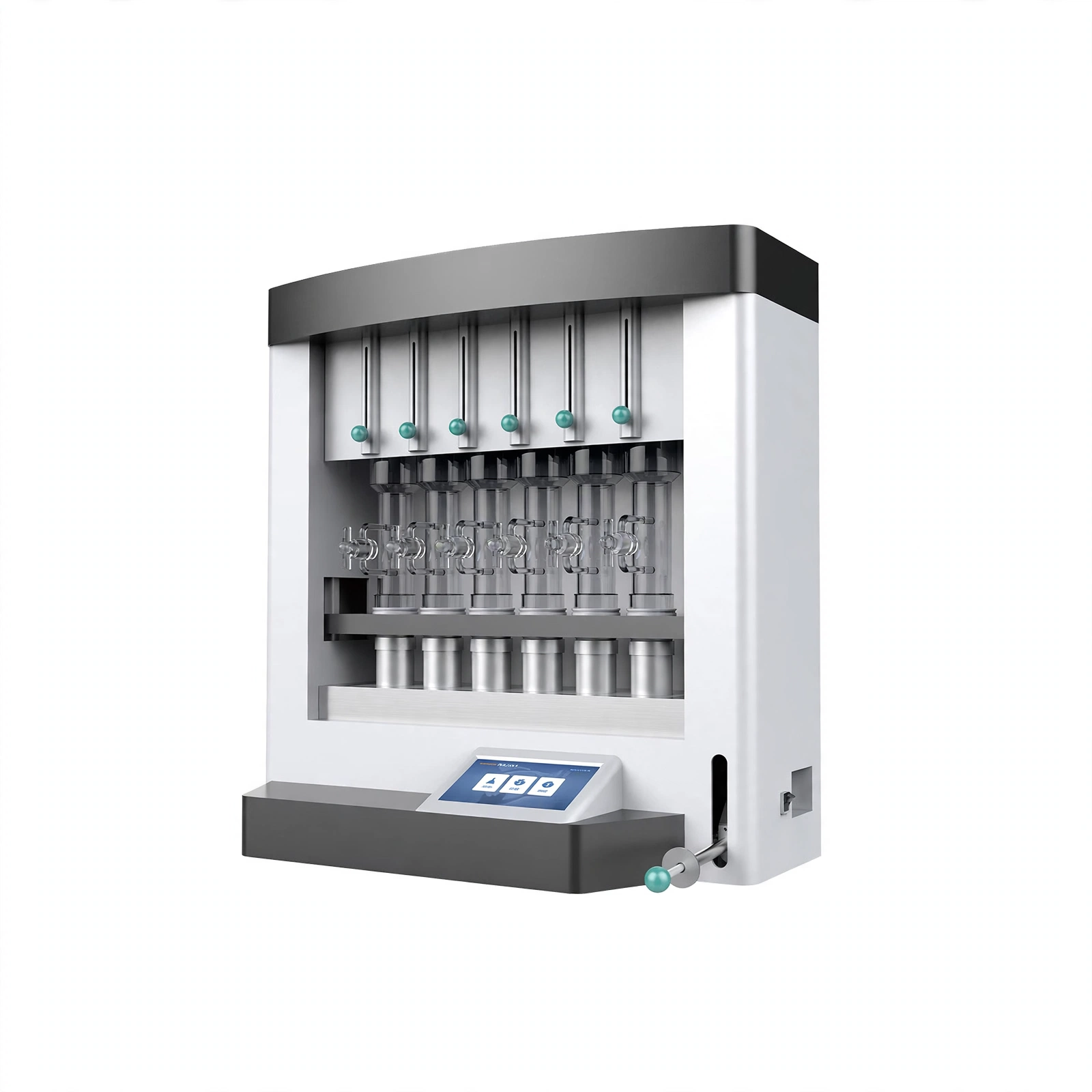

Fat Analyzer SFA-06S

Model SFA-06S

It is widely used in the determination of fat products in the fields of grain, feed, oil, food processing, chemical industry, animal husbandry, soil and fertilizer environmental monitoring, medicine, agriculture, scientific research, teaching, quality supervision and other fields with crude fat content >0.1%.

Capacity
6pcs/batch
Power
1000W
Net weight
35kg
Dimensions
650*320*680mm
A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Features:

1. Equipped with an integral metal bath heating module, featuring a wide temperature control range and high precision.

2. A7-inch high-resolution color LCD screen, capable of displaying both set temperature and actual temperature simultaneously;it shows the countdown of holding time and alarms when the time is up.

3. The circuit and extraction space are completely isolated, enhancing system safety.

4. PTFE valve core valves ensure safe, controllable, and leak-free solvent recovery.

5. The instrument is equipped with a complete time control system to strictly monitor the experiment.

6. Equipped with over-temperature alarm and timing reminder functions.

7. Lifting connection with linear bearing transmission technology ensures stable lifting and flexible operation.

8. Adopting new ceramic fiber insulation layer technology to keep the machine shell at room temperature, achieving both heat insulation and heat preservation effects.

Technical Parameters:

Model SFA-06S
Control Temp. Range RT+5~280℃
Measuring Range 0.1~100%
Control Temp. Precision ±1℃
Sample Weight 0.5~20g(Normally 2~5g)
Capacity 6pcs/batch
Solvent Cup Volume 80ml
Solvent Recovery ≥85%
Measuring Time Extraction time is adjustable
Power 1000W
Power Supply AC220V, 50/60Hz(Standard);

110V, 50/60Hz(Optional, external transformer or custom 110V heating accessory)
External Size(W*D*H) 650*320*680mm
Packing Size(W*D*H) 730*400*760mm
Net Weight 35kg
Gross Weight 50kg
The details

Specifications

Model
SFA-06S
Control Temp. Range
RT+5~280℃
Measuring Range
0.1~100%
Control Temp. Precision
±1℃
Sample Weight
0.5~20g(Normally 2~5g)
Capacity
6pcs/batch
Solvent Cup Volume
80ml
Solvent Recovery
≥85%
Measuring Time
Extraction time is adjustable
Power
1000W
Power Supply
AC220V, 50/60Hz(Standard);110V, 50/60Hz(Optional, external transformer or custom 110V heating accessory)
External Size(W*D*H)
650*320*680mm
Packing Size(W*D*H)
730*400*760mm
Net Weight
35kg
Gross Weight
50kg
