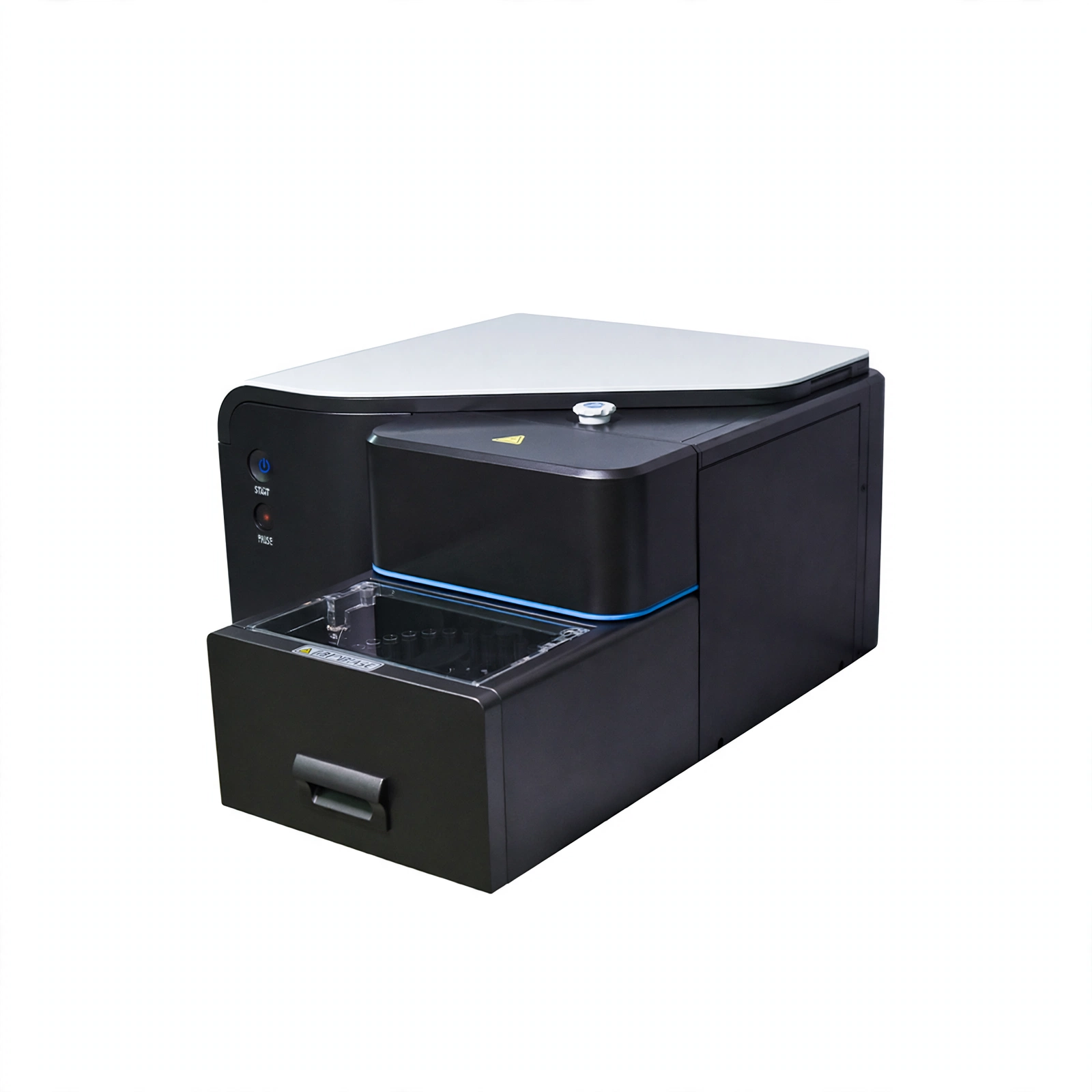

Flow Cytometer

Flow Cytometer FlowCyte B7H FlowCyte B7

Model FlowCyte B7H FlowCyte B7

Flow cytometer is a high-precision analytical instrument widely used in life sciences, medicine, immunology, and other fields. It integrates fluid mechanics, optics, electronics, and computer technology to rapidly analyze and sort individual cells (or particles) in a liquid suspension. By detecting scattered light signals and fluorescent signals from cells labeled with specific probes, the instrument can quantitatively measure multiple physical and chemical properties of cells (such as size, granularity, surface antigens, and intracellular components) at a speed of thousands to tens of thousands of cells per second, enabling high-throughput, multi-parameter, and non-destructive cellular analysis.

Net weight
30kg / 35kg
Dimensions
430*500*330mm / 650*5…
A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Features:

Recommended Reagent Information:

Item Recommended Reagent Application Department
Lymphocyte Subset T Analysis CD45

CD4

CD3

CD8

Clinical Laboratory

Infectious Disease Department

Oncology Department

Department of Rheumatology and Immunology

Department of Pediatrics Blood Specialty
Lymphocyte Subset T/B/NK Analysis CD45

CD3

CD16

CD56

CD19
Absolute Count of CD4+T Lymphocyte CD45

CD4

CD3

CD8

 CDC (AIDS)

Infectious Disease Department
Cytokine Th1/Th2/Th17 Analysis Th1: IL-2, IFN-γ, TNF-α

Th2: IL-4, IL-6, IL-10

Th17: IL-17

 Infectious Disease Department

Oncology Department

Department of Rheumatology and Immunology

Department of Organ Transplantation

Respiratory Department
HLA-B27 Detection for AS HLA-B27-FITC

HLA-B7-PE

IgG2a-FITC

IgG1-PE

 Department of Rheumatology and Immunology

Orthopedics
DFI Analysis Acridine orange (AO) Staining Solution Reproductive Department

Infertility Department

Reproductive Medicine Centre

Technical Parameters:

Model FlowCyte B7H FlowCyte B7
Laser

488nm solid（60mW）
Detector

FSC, SSC, FL1-FL5
Fluorescence Channel

FL1:525/50（FITC）

FL2:585/40（PE）

FL3:630/30（PE-Texas Red/ECD/PI）

FL4:697/60（PerCP/PE-Cy5/PE-Cy5.5）

FL5:780/60（PE-Cy7）
Fluorescence Sensitivity

FITC≤50 MESF, PE≤30MESF
Fluorescence Linearity

≥0.99
FSC Sensitivity

≤1μm
Test Particle Size

0.2~50μm
Carry Over

≤0.5%
Instrument CV

FSC and all FL channel CV less than 2%
FSC and SSC CV

Can separate red blood cells and platelet, can separate white blood cells into 3 groups
Test Speed

≥46000 cells/s
Minimum Sample Vol

90μL
Measure Range

Maximum Support 10⁷
Threshold

Double threshold, minimum cells fraction
Fluorescence Compensation

Support auto online compensation, offline compensation and visualized compensation
Item Template

Support Item template, acquisition conditions/fluorescence compensation one-click use
Intake Method

Manual intake

Rotary wheel auto-sampling with auto-mixing function:32tests/wheel
Liquid Storage Station

Sheath bottle, waste bottle, shutdown liquid bottle 2L,

cleaning liquid bottle 0.5L
Software

English/Chinese
PC

Dell（CPU i5/8G DDR4/1T hard disk）+Dell 27 inches monitor
Power Supply

AC220/110V±10%, 50/60Hz
Auto-sampler / 32-postions autosampler(Stanndard)
External Size(W*D*H) 430*500*330mm 650*500*330mm
Net Weight 30kg 35kg
Packing Size(W*D*H)

Main Instrument: 860*635*648mm

Accessories: 860*680*810mm

Reagent: 405*270*400mm
Gross Weight

Main Instrument: 56kg

Accessories: 54kg

Reagent: 16kg
The details

Specifications

Model
FlowCyte B7H / FlowCyte B7
Laser
488nm solid（60mW）
Detector
FSC, SSC, FL1-FL5
Fluorescence Channel
FL1:525/50（FITC）FL2:585/40（PE）FL3:630/30（PE-Texas Red/ECD/PI）FL4:697/60（PerCP/PE-Cy5/PE-Cy5.5）FL5:780/60（PE-Cy7）
Fluorescence Sensitivity
FITC≤50 MESF, PE≤30MESF
Fluorescence Linearity
≥0.99
FSC Sensitivity
≤1μm
Test Particle Size
0.2~50μm
Carry Over
≤0.5%
Instrument CV
FSC and all FL channel CV less than 2%
FSC and SSC CV
Can separate red blood cells and platelet, can separate white blood cells into 3 groups
Test Speed
≥46000 cells/s
Minimum Sample Vol
90μL
Measure Range
Maximum Support 10⁷
Threshold
Double threshold, minimum cells fraction
Fluorescence Compensation
Support auto online compensation, offline compensation and visualized compensation
Item Template
Support Item template, acquisition conditions/fluorescence compensation one-click use
Intake Method
Manual intakeRotary wheel auto-sampling with auto-mixing function:32tests/wheel
Liquid Storage Station
Sheath bottle, waste bottle, shutdown liquid bottle 2L,cleaning liquid bottle 0.5L
Software
English/Chinese
PC
Dell（CPU i5/8G DDR4/1T hard disk）+Dell 27 inches monitor
Power Supply
AC220/110V±10%, 50/60Hz
Auto-sampler
/ / 32-postions autosampler(Stanndard)
External Size(W*D*H)
430*500*330mm / 650*500*330mm
Net Weight
30kg / 35kg
Packing Size(W*D*H)
Main Instrument: 860*635*648mmAccessories: 860*680*810mmReagent: 405*270*400mm
Gross Weight
Main Instrument: 56kgAccessories: 54kgReagent: 16kg
