Fat Analyzer

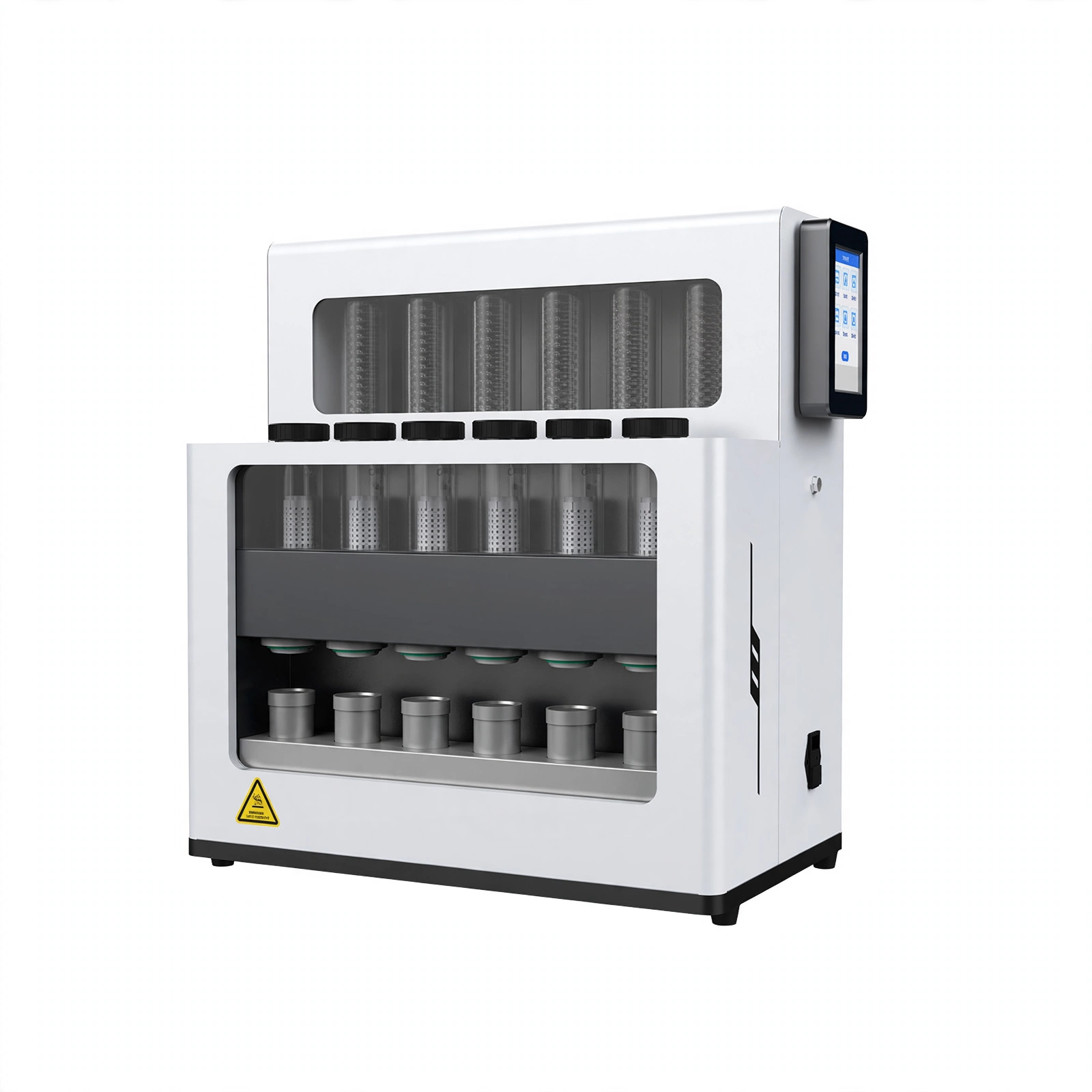

Fully Automatic Fat Analyzer

Model SFA-606 Refrigerated

The fully automatic fat analyzer is an instrument based on the Soxhlet extraction principle for the extraction and separation of fats and other organic substances. It features five extraction modes, dual heating blocks, and a gas leak alarm. Widely used for fat extraction in agriculture, food, environmental, and industrial sectors, it is also applicable for measuring soluble organic compounds in detergents, pharmaceuticals, petrochemical products, textiles, soil, and sludge.

Capacity
6pcs/batch
Temperature
5~300℃
Max. load
Automatic solvent loa…
A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Features:

1. The system is equipped with a full-fluorination fluidic path, resistant to high temperatures and chemical corrosion from various solvents—including benzenes, ethers, ketones, and more—making it compatible with all organic solvents and suitable for a wide range of sample testing requirements.

2. Featuring one-touch start and pause controls, the device simplifies operation and lowers the technical threshold, allowing flexible control over the experimental process.

3. It runs on an Android-based operating interface, designed to be intuitive and user-friendly for clear and straightforward operation.

4. The instrument supports five extraction modes to accommodate different sample types and extraction needs.

5. Pre-configured common reagent options are built in, enabling quick setup for high-frequency tests with a single click.

6. An integrated ether leak sensor and real-time anomaly monitoring system automatically pause experiments and issue alerts upon gas detection, ensuring operational safety and smooth procedure.

7. The fully transparent condensation and extraction modules provide clear visibility into the instrument, allowing easy monitoring of the experimental process.

8. With one-touch solvent recovery, operators can efficiently retrieve solvents via the controller after experiments, minimizing waste and simplifying cleanup.

Technical Parameters:

Model SFA-606(Customized)
Temp. Range 5~300℃
Measuring Range 0~100%
Temp. Accuracy ±0.1℃
Sample Weight 0.5~15g(Normally 2~5g)
Automated hot solvent extraction process available. Yes
Capacity 6pcs/batch
Condenser Borosilicate glass condenser
Loading Automatic solvent loading, eliminating contact with the solvent
Heating Position Independent heating position switch (on-off)
Display Touch screen;Real time displaying of essential parameters of extraction process;the screen based indication of active positions
Solvent Recovery ≥90%
Solvent Storage Internal solvent storage tank, visible and with optical sensor
Connection USB interface for scales connection
Solvent Volume 250ml
Seal/Gasket Universal seal/gasket, resistant to majority of solvents used
Controller 6 units controlled by one controller
Heating Plate Glass-ceramic heating plate with overheating protection in each position
Cooling water consumption 1.5 L/min
Pre-installed library of methods and customizable programs Yes
Temperature Setting Temperature setting to control all units
Data Analysis Ethernet connection for downloading results to a PC in accordance with LIMS

Downloading analysis results to a USB drive or equivivalent modern solution for transfering of measurement data
Extraction chamber protective screen Yes
Power Supply AC 220V, 50/60Hz(Standard)
Components, spare parts, consumables Auto extractor of solvents 1 pc .

Device or pneumatic drive for moving extraction cups 1 pc.

Thimble holder 6-slot 1 pc.

Fiberglass plugs 33x80mm, 25 pcs./pack, 1 pack .

Hydrolysis unit with all auxiliary glassware,1 set.

Crucible P1 for HU 6, 6 pcs / box 1 piece

Input fitting 1/4 NPT – tube Ø 4.3÷4.5 mm 1 pc.

Inlet fitting 1/4 NPT – tube Ø4.8÷5mm 1 pc.

Complete preventive maintenance kit 1 pack .
The details

Specifications

Model
SFA-606(Customized)
Temp. Range
5~300℃
Measuring Range
0~100%
Temp. Accuracy
±0.1℃
Sample Weight
0.5~15g(Normally 2~5g)
Automated hot solvent extraction process available.
Yes
Capacity
6pcs/batch
Condenser
Borosilicate glass condenser
Loading
Automatic solvent loading, eliminating contact with the solvent
Heating Position
Independent heating position switch (on-off)
Display
Touch screen;Real time displaying of essential parameters of extraction process;the screen based indication of active positions
Solvent Recovery
≥90%
Solvent Storage
Internal solvent storage tank, visible and with optical sensor
Connection
USB interface for scales connection
Solvent Volume
250ml
Seal/Gasket
Universal seal/gasket, resistant to majority of solvents used
Controller
6 units controlled by one controller
Heating Plate
Glass-ceramic heating plate with overheating protection in each position
Cooling water consumption
1.5 L/min
Pre-installed library of methods and customizable programs
Yes
Temperature Setting
Temperature setting to control all units
Data Analysis
Ethernet connection for downloading results to a PC in accordance with LIMSDownloading analysis results to a USB drive or equivivalent modern solution for transfering of measurement data
Extraction chamber protective screen
Yes
Power Supply
AC 220V, 50/60Hz(Standard)
Components, spare parts, consumables
Auto extractor of solvents 1 pc .Device or pneumatic drive for moving extraction cups 1 pc.Thimble holder 6-slot 1 pc.Fiberglass plugs 33x80mm, 25 pcs./pack, 1 pack .Hydrolysis unit with all auxiliary glassware,1 set.Crucible P1 for HU 6, 6 pcs / box 1 pieceInput fitting 1/4 NPT - tube Ø 4.3÷4.5 mm 1 pc.Inlet fitting 1/4 NPT - tube Ø4.8÷5mm 1 pc.Complete preventive maintenance kit 1 pack .
