Fume Hood

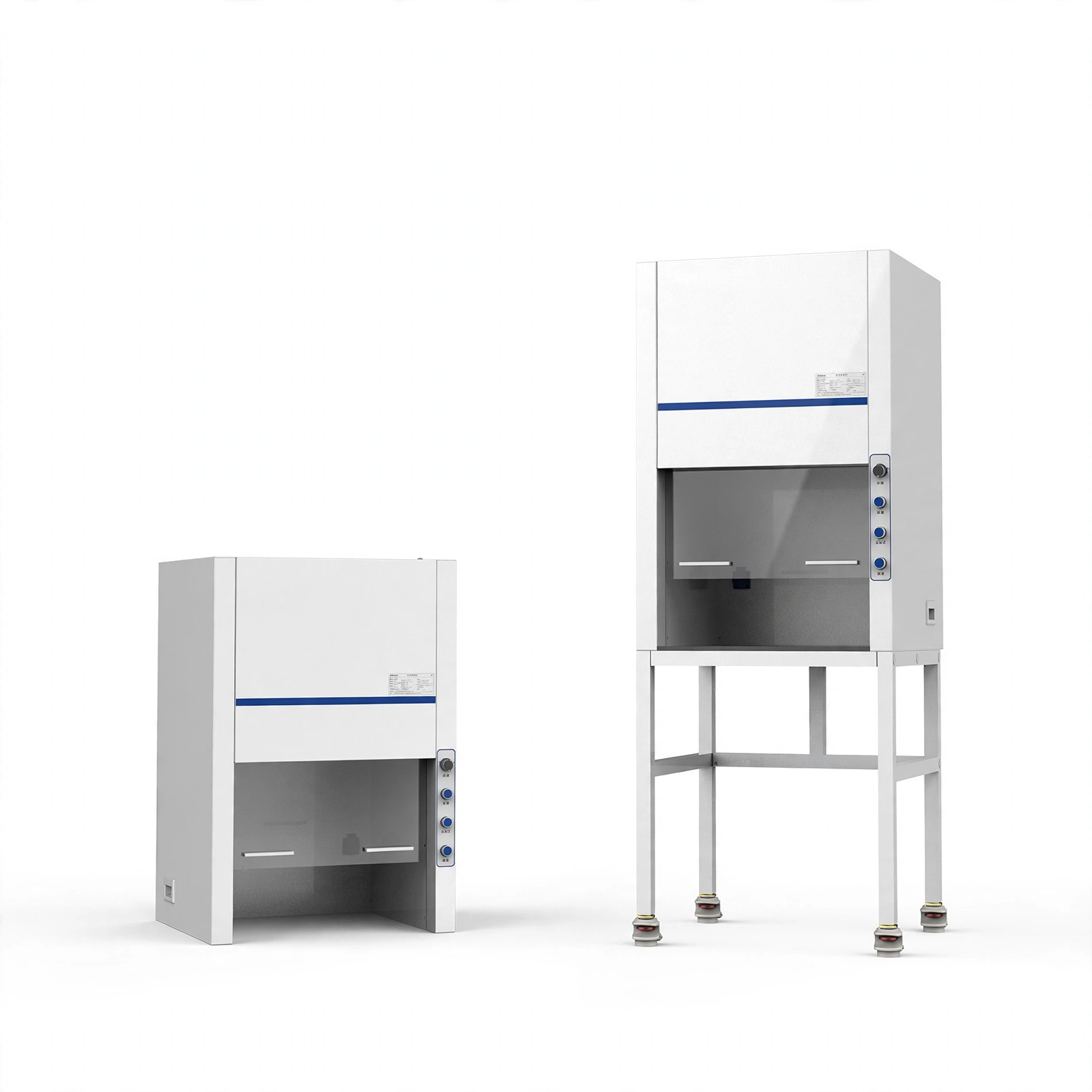

Fume Hood BK-FH700

Model bk-fh700

The Ducted Fume Hood is a robust laboratory safety device designed to capture and remove hazardous fumes, vapors, and particles during chemical experiments or industrial processes. By venting contaminated air through an external exhaust system, it provides a secure and efficient environment for handling toxic substances.

A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Features:

1. The cabinet is designed with a vertical surface, the operation perspective is wide and more humanized.

2. Made of high quality cold rolled steel plate material, surface electrostatic spraying, with good finish.

3. The platform panel of the operation area of the fume hood is made of solid physical and chemical plate, which is resistant to acid and alkali corrosion and can be disassembled for easy cleaning(integral type).

4. The front window adopts 5mm thick tempered glass to better protect the safety of personnel and experiments.

5. Counterweight manual front window, height adjustable.

6. The base bracket and footmaster castor integrated design, safely moved through the casters, also well fixed and levelled.

7. Equipped with PP axial flow fan, large air volume, low noise, long service life, easy installation.

8. The fan can be stepless speed regulation, the function button is push-button switch, stable performance.

9. The side of the cabinet body is equipped with lifting handles to facilitate carrying.

Technical Parameters:

Model

BK-FH700

Number of Users

Single

Rated Power

95W(Not including socket load power, load power cannot exceed 500W)

Power Supply

220V±10%, 50Hz(Standard); 110±10%V, 60Hz(Optional)

Exhaust Volume

1225m³/h

Air Velocity

0.3m/s~0.8m/s

Noise

≤65dB(A)

LED Lamp

4W

Max Opening

400mm(Integral Type)

Tabletop Height

810mm(Integral Type)

Standard Accessory

LED lamp, waterproof socket

Optional Accessory

UV lamp, water tap, active carbon filter, HEPA filter, chemical filter

Net Weight

Desktop Type 60kg
Integral Type 80kg

Gross Weight

Desktop Type 78kg
Integral Type 100kg

External Size(W*D*H)

Desktop Type 700*650*1050mm
Integral Type 700*650*1850mm

Internal Size(W*D*H)

580*510*687mm

Package Size(W*D*H)

Desktop Type 805*840*1250mm
Integral Type 960*840*1250mm
