Fume Hood

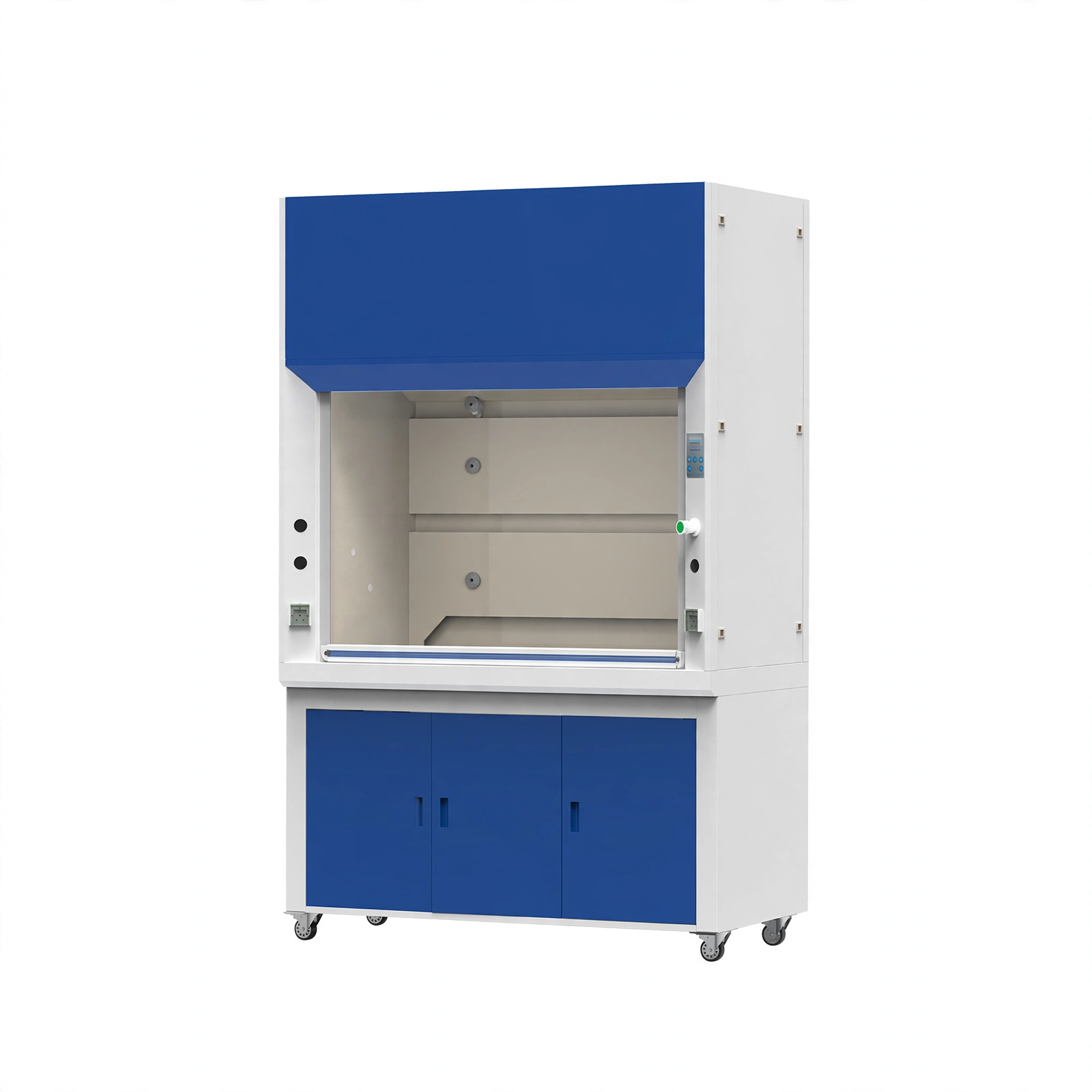

Fume Hood FH1000(E) FH1200(E) FH1500(E) FH1800(E)

Model FH1000(E) FH1200(E) FH1500(E) FH1800(E)

The primary goal of the Fume Hood is to protect operators and laboratory environment from exposure to infectious aerosol and toxic gas which may be generated from the reaction during experiments.

A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Features:

1. Adjustable air speed: 9 levels.

2. Microprocessor control system, LED display.

3. Resistant to moderate acid and alkali.

4. With memory function in case of power-failure.

5. Manual front glass window, height adjustable.

6. Built-in PP centrifugal blower, low noise, easy installation.

Technical Parameters:

Model

 FH1000(E)

FH1200(E)

 FH1500(E)

FH1800(E)

External Size(W*D*H)

 1000*800*2515mm

1200*800*2515mm

 1500*800*2515mm

1800*800*2515mm

Internal Size(W*D*H)

 790*600*870mm

990*600*870mm

 1290*600*870mm

1590*600*870mm

Work Surface Height

900mm

Max Opening

750mm

Air Velocity

0.3~0.8m/s

System Exhaust Volume

570m³/h

 710m³/h

930m³/h

 1140m³/h

Noise

≤68dB

Exhaust Duct

PVC, standard length; 5 meters, Φ300mm

Pipe Strap

2pcs

LED Lamp

20W*1

40W*1

Blower

Built-in PP centrifugal blower

Front Window

Manual, 5mm toughened glass, height adjustable
Power Supply 220V±10%, 60/50Hz; 110V±10%, 60Hz

Consumption

 400W

400W

 500W

500W

Material

 Exterior

1.0mm cold-rolled steel with anti-bacteria powder coating
Interior

Compact laminate board with good acid and alkali resistance function
Work table

Chemical resistant phenolic resin

Standard Accessory

PP water sink

Total load of 2 waterproof sockets: 500W

Base cabinet

Water tap

5 meters exhaust duct(φ300mm)

Optional Accessory

Gas valve, gas tap

Gross Weight

 186kg; 81kg

207kg; 89kg

 233kg; 101kg

279kg; 130kg

Package

Main Body

 1145*960*1865mm

1345*960*1865mm

 1645*960*1875mm

1945*960*1875mm

Base Cabinet

 1145*960*1040mm

1345*960*1040mm

 1645*960*1060mm

1945*960*1040mm
