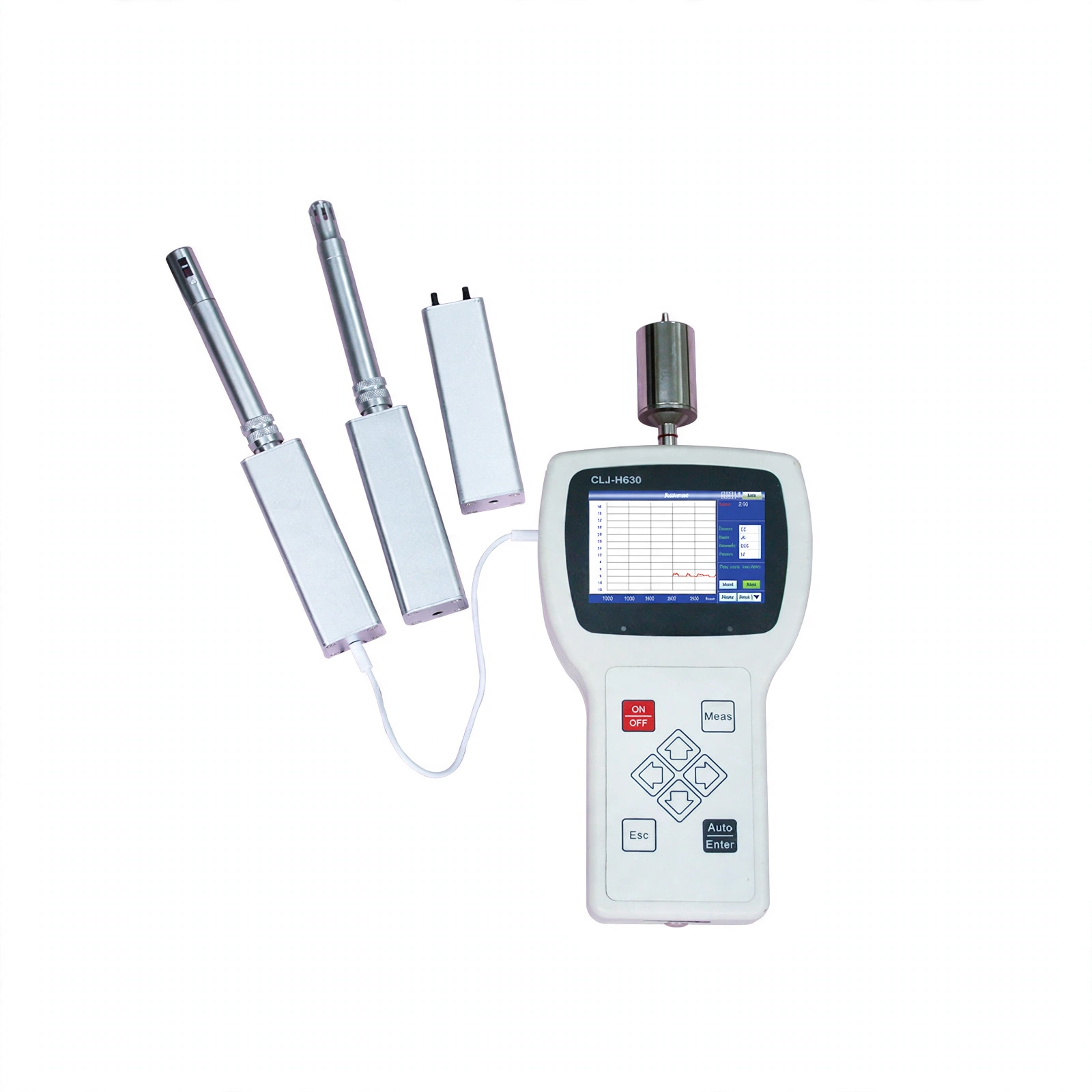

CLJ-H630 laser dust particle counter is a professional measuring instrument used to test the cleanliness level of air in clean room.
Ask about availability, configuration and delivery to your location. We reply personally.
Enquiry only. No payment is taken.Features:* 480*320 High-resolution colourLCD display.
* High capacity USB rechargeable Li-ion battery.* Internal audible alarm, and the alarm channel can be chosen arbitrarily.
* 95% UCL Calculation. * Large memory for storing data. * Free software, data easily downloaded to computer.
* Battery capacity display.
* External function module: temperature and humidity, differential pressure, Air velocity(Optional)* Supplied with FREE carrying case.
Technical Parameter:
| Model | CLJ-H630 |
| Channel Thresholds | 6 channels:0.3,0.5,1.0,2.0,3.0,5.0μm |
| Flow Rate | 0.1ft3/min(2.83 L/min) |
| Light Source | Laser diode |
| Calibration Particles | SIMT certification |
| Max. Concentration | 2,000,000/ft3 |
| Zero Count | <1 per 5 min. |
| Counting Efficiency | 50%@0.3μm, 100%@0.5μm |
| Data Display Modes | Counts, Counts/m3, Counts/ft3 |
| Sampling Modes | Manual repeated, Auto for UCL calculation (calculation for all 6 channels) |
| ISO Certification | ISO 5-8 @ 0.5 and 5.0μm |
| Data Storage | Upto 260,000 records |
| Power Supply | AC adapter:100~240V, 50/60Hz |
| Batteries | 3.7V Li-on rechargeable battery 10000mAH |
| Operating Time on Battery | More than 8hr for sampling |
| Operating Temp. | 0~35°C |
| Operating Humidity | 0~85% |
| AccessorySupplied Free | Case, Operation manual, Factory Calibration certificate, Filter, min USB cable, , Isokinetic Probe, Fuse. |
| External surface | ABS(plastic resin) |
| External Size(W*H*D) | 230*130*45mm |
| Package Size(W*H*D) | 340*135*275mm |
| Net/Gross Weight: | 0.9kg/3kg |
Request a quote on WhatsApp, or add several items to your enquiry list and send them together.
We confirm configuration, voltage, accessories, availability and a delivered price.
We handle procurement, packing and international shipping to your facility.
