High-frequency electron tube self-excited high-frequency oscillation instants to generate high-frequency electromagnetic field, so that the plastic internal polar molecules polarization and friction with each other to produce heat phenomenon, and then achieve the purpose of welding plastic, the welding temperature is uniform. It is applied to the sealed heat sealing of the catheters of medical PVC blood collection bags. It is mainly suitable for the blood transfusion departments of hospitals at all levels, the body collection departments and component departments of blood stations, blood banks as well as medical scientific research institutions.
Ask about availability, configuration and delivery to your location. We reply personally.
Enquiry only. No payment is taken.Features:
1. Equipped with a transistor high-frequency generator and filtering-shielding design, it emits minimal radiation.
2. Boasting multiple voltage safeguards, a stable circuit, it ensures long-term use.
3. The heat-sealing process is fully automated, eliminating the need for manual time adjustment.
4. With a user-friendly design, it’s compact, lightweight, portable, and easy to operate.
5. No preheating required. It can seal rapidly, ideal for mobile blood collection tubes.
6. The heat-sealing head has a pre-set groove-shaped cut, allowing easy separation by hand post-sealing.
7. Fitted with a reliable anti-splash protector, it’s easy to clean.
8. Its wrapped heat-sealing head design provides a flat seal, preventing hemolysis.
9. With a wide-voltage design, it’s compatible with global power supplies and can be paired with various standard plugs.
10. Featuring a high-security rechargeable battery, long-distance transport is worry-free.
11. It can operate with or without an external power source, making it perfect for mobile emergency scenarios.

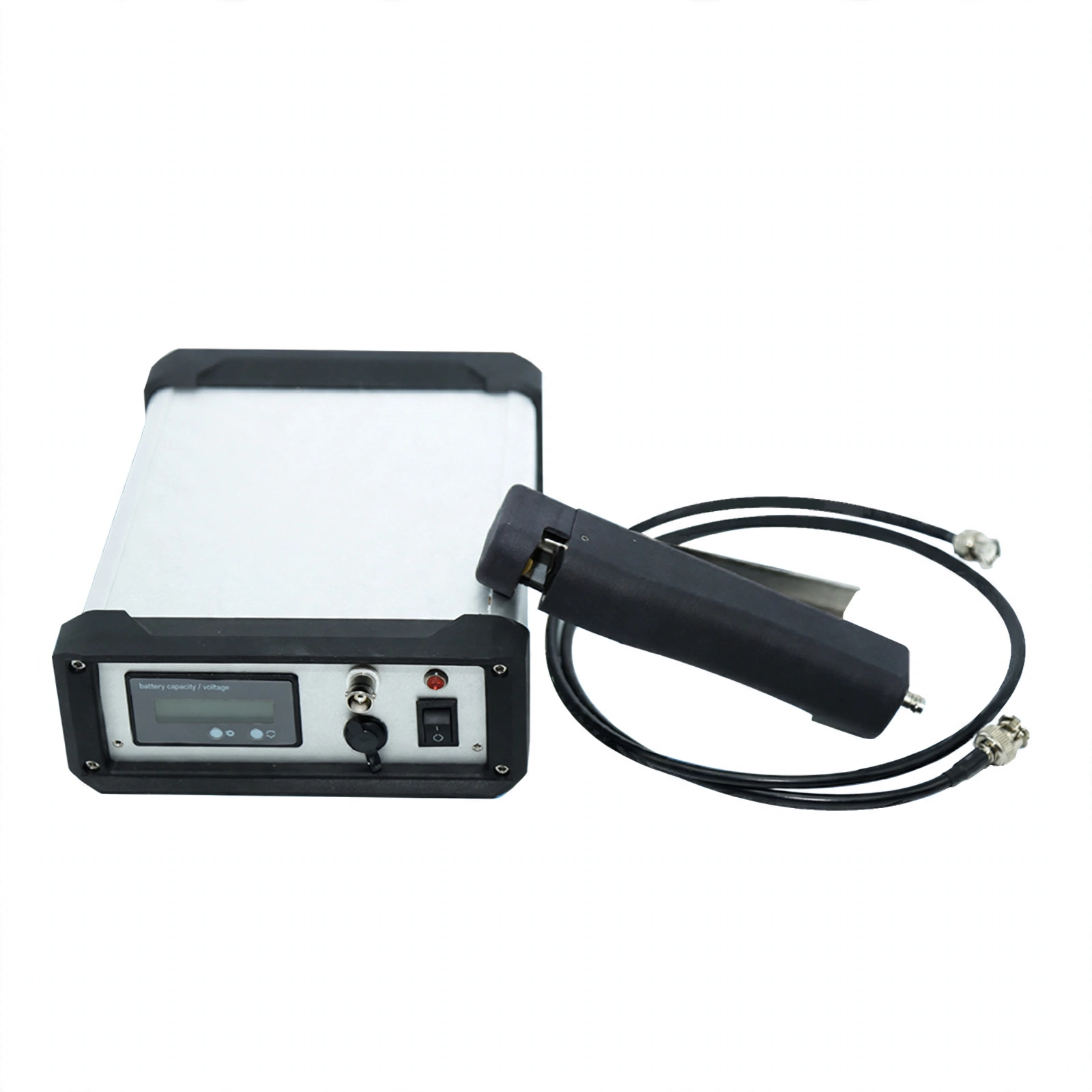

Technical Parameters:
| Model | BK-HS01 |
| Radio Frequency Output | 40.68MHz±10KHz |
| Sealing Radio Frequency(RF) Consumption | 30W |
| Battery | 24V, 4000mAH |
| Number of Heat Sealings | It takes 3 hours to fully charge the battery, and it can perform 800~1000 heat sealings(depending on the ambient temperature). |
| Sealing Type | Automatic |
| Sealing Time | 1~2.5s |
| Suitable Materials | PE or PVC, with an outer diameter of 2~7mm and a wall thickness of ≤1.5mm |
| Power Supply | Input: AC100~240V, 50Hz/60Hz, 0.7A; Output: DC 24V |
| Consumption | Working: 150W; Standby: 3W |
| Components | Heat sealing handle+control box |
| Standard Accessories | Canvas portable bag, 2-meter-long connecting cable, charger |
| External Size(W*D*H)mm | 145*205*55 |
| Packing Size(W*D*H)mm | 215*315*115 |
| Net Weight(kg) | 2 |
| Gross Weight(kg) | 4 |
Request a quote on WhatsApp, or add several items to your enquiry list and send them together.
We confirm configuration, voltage, accessories, availability and a delivered price.
We handle procurement, packing and international shipping to your facility.
The Fully Automatic High Frequency Heat Sealer is an advanced sealing machine designed for efficient and high-quality packaging of medical, laboratory, and industrial products.
