High-frequency electron tube self-excited high-frequency oscillation instants to generate high-frequency electromagnetic field, so that the plastic internal polar molecules polarization and friction with each other to produce heat phenomenon, and then achieve the purpose of welding plastic, the welding temperature is uniform.
Ask about availability, configuration and delivery to your location. We reply personally.
Enquiry only. No payment is taken.Features:
1. Fast response, instant heat sealing.
2. Status indicator light for easy monitoring of machine operation.
3. Automatic heat sealing for more convenient operation.
4. A carefully designed heat dissipation structure effectively reduces chamber temperature, ensuring long-term continuous operation.
5. Unique high-frequency protection design ensures safe use.
6. Suitable for pipes with a maximum diameter of 6mm, precise heat sealing time control ensures uniform seal thickness.
7. White safety cover is easily removed and cleaned without special tools.
8. Spark protection prevents sparks from damaging samples during operation.
Technical Parameters:
| Model | BJPX-PR | BJPX-PR-II |
| Heat Sealing Method |
Automatic heat sealing |
|
| Voltage Regulation | Manual pressure regulation with 3 adjustable levels | Automatic pressure regulation |
| Applicable Tube Diameter(mm) |
Infusion tube with an outer diameter of φ3~φ6, δ≤1(wall thickness) |
|
| Heat Sealing Time | 1~4s(Manual adjustment) | 0.1~9.9s(Automatic adjustment) |
| Rated Power |
≤360W |
|
| Power Supply | Standard: AC220V, 50/60Hz;
Optional: AC110V, 50/60Hz, external transformer |
AC220V, 50/60Hz; AC110, 50/60Hz, these two voltages can be switched |
| Product Size | 352*172*240mm | 380*180*170mm |
| Net Weight | 6.6kg | 8kg |
| Packing Size | 430*240*290mm | 430*240*290mm |
| Gross Weight | 7.7kg | 10kg |
Request a quote on WhatsApp, or add several items to your enquiry list and send them together.
We confirm configuration, voltage, accessories, availability and a delivered price.
We handle procurement, packing and international shipping to your facility.

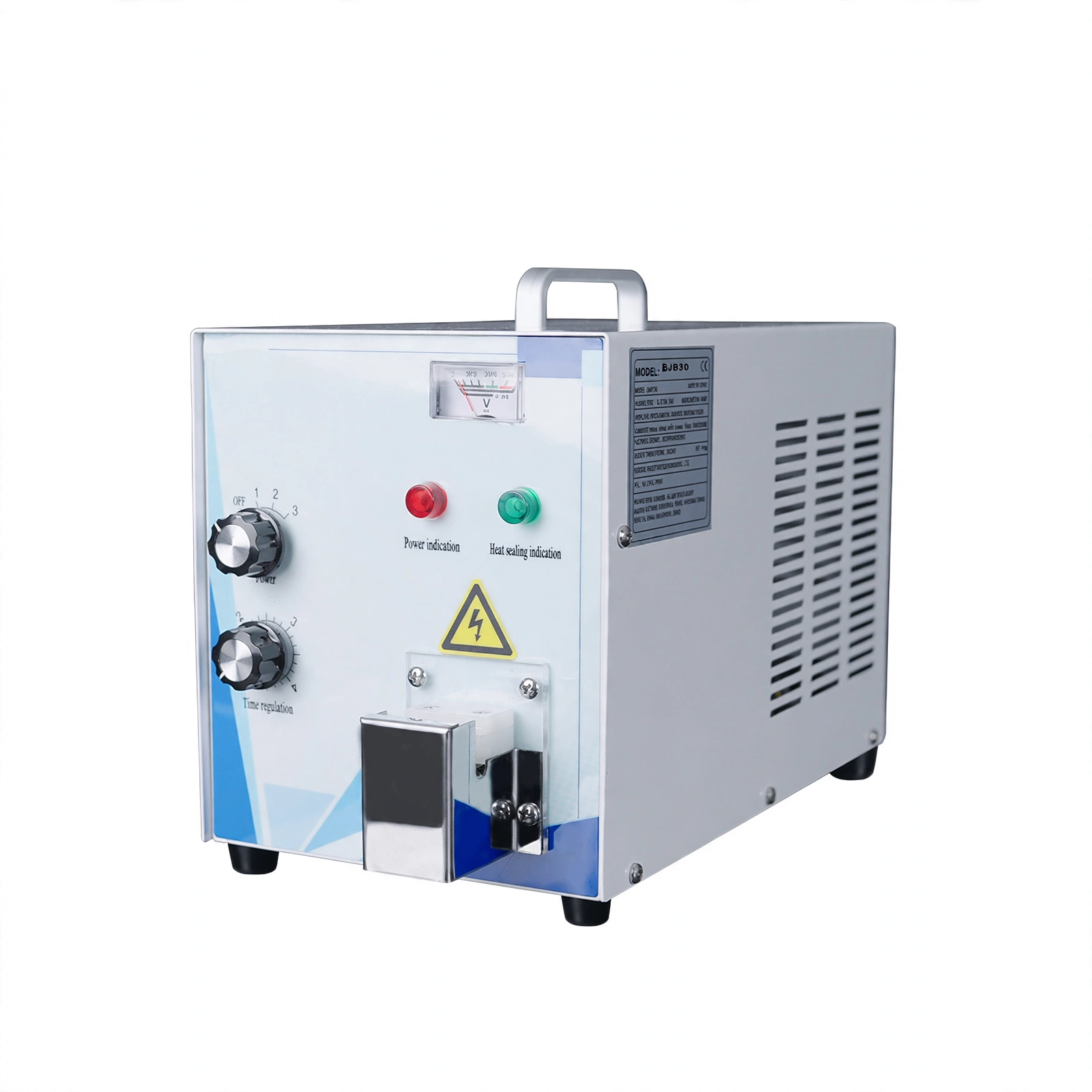

The Fully Automatic High Frequency Heat Sealer is an advanced sealing machine designed for efficient and high-quality packaging of medical, laboratory, and industrial products.
