High Performance Liquid Chromatography

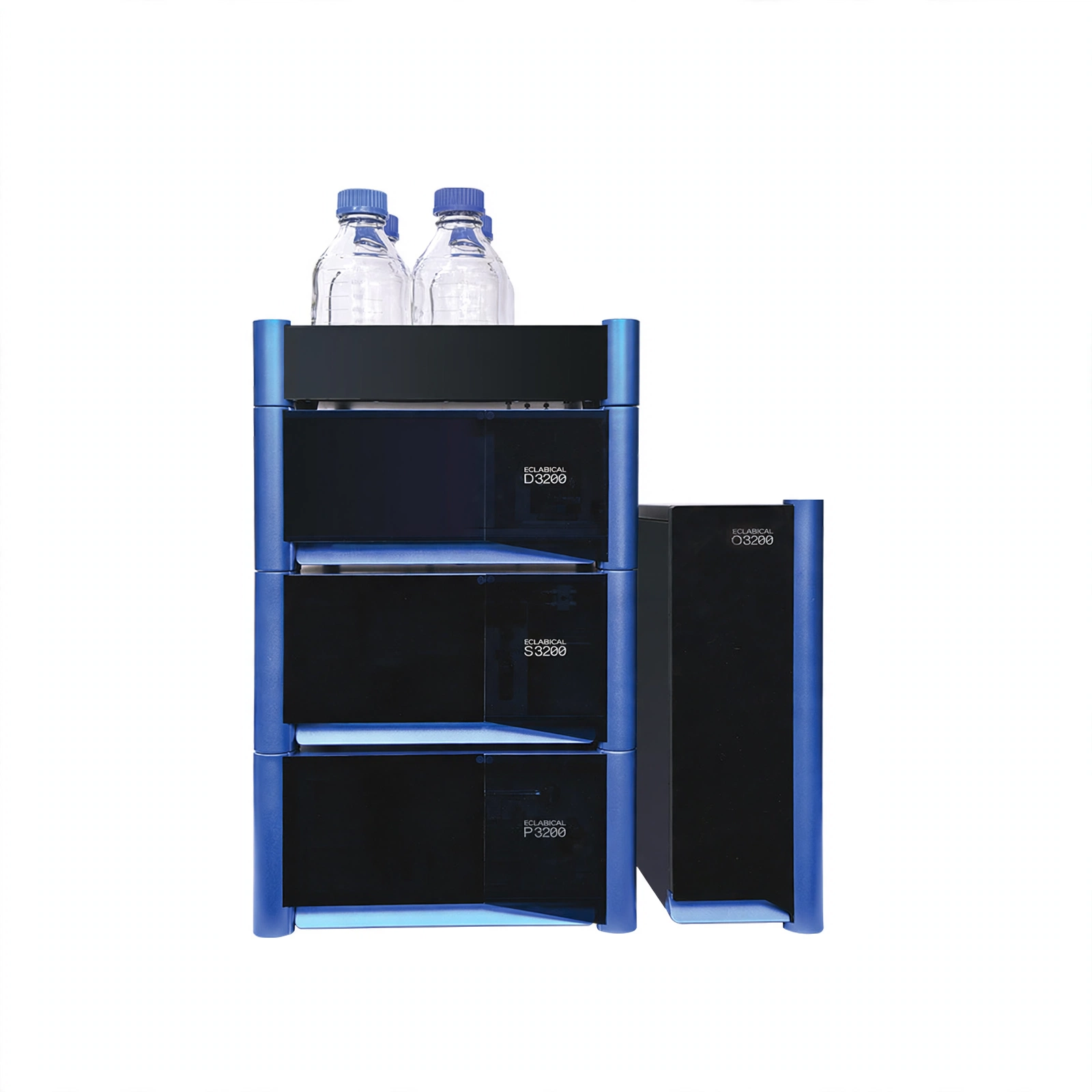

High Performance Liquid Chromatography System EClassical 3200

Model EClassical 3200 Refrigerated

The newly developed EClassical 3200 high performance liquid chromatography system meets the constantly upgraded regulatory requirements and redefines the appearance design of domestic liquid phase, perfects the continuity and integrity of the analysis process, demonstrates the stability of laboratory results, and meets the feasibility.

Temperature
Ambient+5~85℃
Noise
≤1.5×10-5AU
Dimensions
440*160*470mm/11kg
A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Features:

1. Classic, inherited product reliability for more accurate and consistent results.

2. Professional, national standard technology leader, making more effective and applicable.

3. Eficient, perfectly superb compatibility makes more convenient and easier.

O3220 Column Oven

Temperature range Ambient+5~85℃
Accuracy ≤±0.5℃
Precision ≤0.1℃
Power Supply AC220V±10%, 50Hz/130W
Dimensions/Weight 440*160*470mm/11kg

P3210 High Pressure Constant Flow Pump

Flow Range 0.001~10.000 mL/min (step 0.001 mL/min)
Accuracy ≤±2.0%(0.001mL/min~10.000mL/min)
Precision ≤0.1%(0.100mL/min~10.000mL/min)
Pressure Range 0~70MPa
Communication Method UDP Network Communication
Power Supply AC220V±10%, 50Hz/100W
Dimensions/Weight 440*380*180mm/13kg

P3220 High Pressure Constant Flow Pump

Flow Range 0.001~10.000 mL/min (step 0.001 mL/min)
Accuracy ≤±2.0%(0.001mL/min~10.000mL/min)
Precision ≤0.1%(0.100mL/min~10.000mL/min)
Pressure Range 0~70MPa
Communication Method UDP Network Communication
Power Supply AC220V±10%, 50Hz/300W
Dimensions/Weight 440*380*180mm/18kg

P3230 Low Pressure Quaternary Pump

Flow Range 0.001~10.000 mL/min (step 0.001 mL/min)
Accuracy ≤±2.0%(0.001mL/min~10.000mL/min)
Precision ≤0.1%(0.100mL/min~10.000mL/min)
Pressure Range 0~70MPa
Communication Method UDP Network Communication
Power Supply AC220V±10%, 50Hz/150W
Dimensions/Weight 440*380*180mm/13kg

D3210 UV-Vis Detector

Linearity ≥2.0AU
Wavelength Range 190~800nm
Wavelength Repeatability ±0.1nm
Wavelength Accuracy ±1.0nm
Noise ≤1.5×10-5AU (Single wavelength)
Drift ≤2.0×10-4 AU (Single wavelength)
Light Source Deuterium lamp, tungsten lamp
Optical Path Dual wavelength
Response Time 0.1~5s
Sampling Frequency 5Hz/10Hz/20Hz/50Hz; Double wavelength 1Hz
Cell Optical path 10mm; Pressure 1000psi
Communication Method UDP Network Communication
Power Supply AC220V±10%, 50Hz/100W
Dimensions/Weight 440*380*160mm/10kg

D3230 DAD Detector

Linearity ≥2.0AU
Wavelength Range 190~800nm
Wavelength Repeatability ±0.1nm
Wavelength Accuracy ±1.0nm
Noise ≤1.0×10-5AU
Drift ≤3.0×10-4 AU
Light Source Deuterium lamp (tungsten lamp optional)
Exposure Time 25ms, 50ms, 100ms
Sampling Frequency 5Hz (2, 10, 20)
Cell Optical path 10mm; Pressure 8MPa
Communication Method UDP Network Communication
Power Supply AC220V±10%, 50Hz/100W
Dimensions/Weight 440*380*160mm/10kg

Technical Parameters:

Model EClassical 3200 (Type I) EClassical 3200 (Type II) EClassical 3200 (Type III) EClassical3200 (Type IV) EClassical 3200 (Type V)
Pump P3210*1 P3220*1 P3230*1 P3220*1 P3230*1
Detector

D3210*1

D3230*1
Sample Cell

SC3210A

SC3230A
Solvent Bottle Tray

T3200*1
Sampler Injector

Rheodyne 7725i*1
Column

Supersil ODS2 5μm 4.6*250mm*1
Workstation

Kromstation*1
Valve Mounting Frame

VB3200*1
Multifunctional Mounting Frame

MB3200*1
Column Mounting Frame

CB3200*1
System Toolkit

EClassical 3200*1
Power Supply

AC220V±10%, 50Hz
Optional Accessory

S3210 autosampler, column, O3220column oven, evaporative light scattering detector, differential refractive index detector, fluorescence detector, solvent bottle
Packing Size (W*D*H)

580*470*370mm, 580*470*370mm, 490*350*100mm, 580*470*370mm
Gross Weight 22kg, 14kg, 4kg, 12kg 22kg, 14kg, 4kg, 13kg 22kg, 14kg, 4kg, 8kg 22kg, 15kg, 4kg, 13kg 22kg, 15kg, 4kg, 18kg
