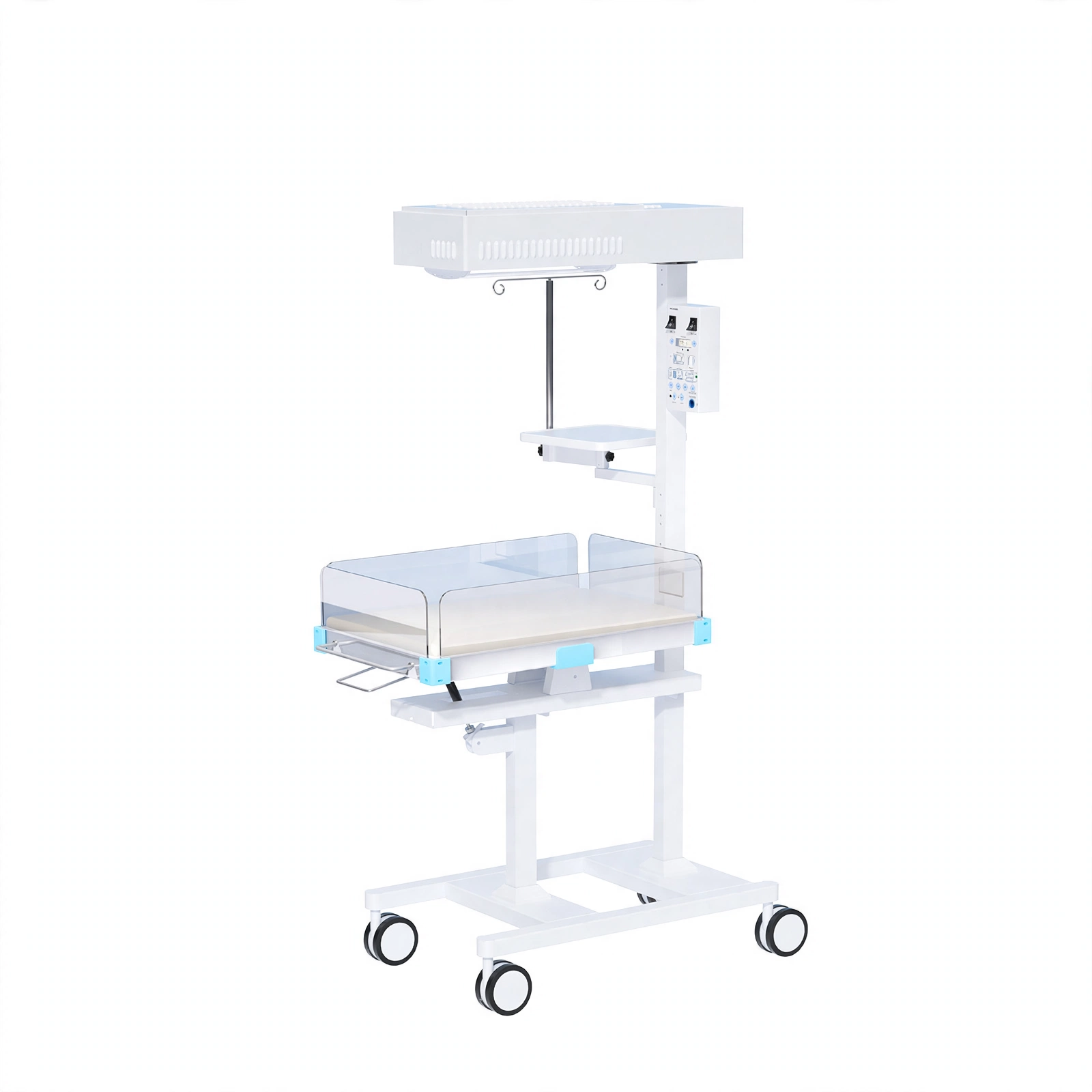

Infant Radiant Warmer is a specialized medical device designed for thermal care of low birth weight neonates, preterm infants, critically ill infants, and vulnerable newborns. It features an infrared radiant heating system to provide continuous warmth while incorporating a skin temperature sensor for real-time monitoring of the infant's body surface temperature during clinical care.
Ask about availability, configuration and delivery to your location. We reply personally.
Enquiry only. No payment is taken.Features:
1. Offers three temperature control modes: preheating, manual, and skin temperature.
2. Real-time LED split-screen display of set temperature, skin temperature, countdown, and heating power percentage.
3. Features an independent over-temperature protection system.
4. Adjustable horizontal angle of the radiation box and tilt angle of the infant bed.
5. Removable transparent acrylic panels around the infant bed for easy cleaning.
6. Sound and light alarms with self-check function for power failure, deviation, over-temperature, sensor failure, manual operation, and system alarms.
7. Temperature calibration function.
8. Skin temperature sensor disconnection alert.
9. APGAR score countdown function.
10. Reserved RS-232 interface for data connectivity.
11. LED lighting with independent switch and adjustable direction and angle.
12. Bed tilt mechanism uses a lockable gas spring mechanism for easy one-handed operation and smooth adjustment.
Technical Parameters:
| Model | BK-IRW-I |
| Display | High-contrast digital split-screen |
| Temp. Modes | Preheat, skin temperature, manual |
| Skin Temp. Control Range | 25~37.5°C |
| Skin Temp. Display Range | 5~65°C |
| Temp. Accuracy | ±0.5°C |
| Skin Sensor Accuracy | ±0.3°C |
| Cot Temp. Uniformity | ≤2°C |
| Heating Time | ≤45minutes |
| Bed Height | 850mm |
| Radiation Head Angle | ±45° bidirectional rotation |
| Bed Tilt Angle | ±12° stepless adjustment |
| Power Supply | AC220V, 50/60Hz |
| Power Rating | 750VA |
| External Size(W*D*H) | 700*1040*1820mm |
| Package Size(W*D*H) | 750*1160*1220mm |
| Net Weight | 55kg |
| Gross Weight | 61kg |
