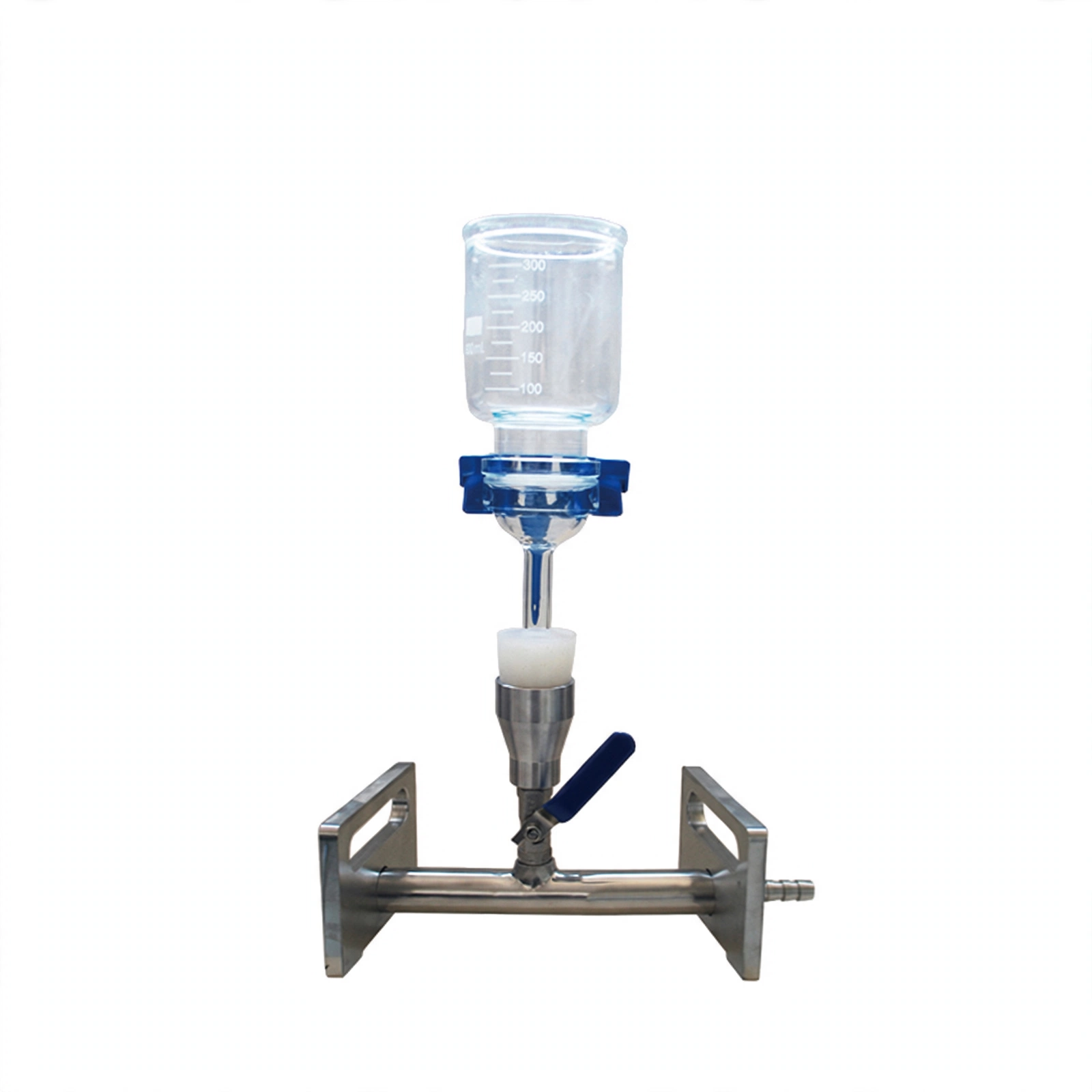

Manifolds Vacuum Filtration is a kind of basic equipment for solid liquid separation by producing pressure difference through negative pressure vacuum suction pump. The main principle is to extract the air inside the filter device through the suction pump, forming an obvious pressure difference, so that the external atmospheric pressure pushes the liquid to be filtered through the microporous filtration membrane, to achieve the purpose of solid-liquid separation.
Ask about availability, configuration and delivery to your location. We reply personally.
Enquiry only. No payment is taken.Features:
1. It is convenient to filtrate several samples at the same time.
2. 316L stainless steel holder, corrosion resistance, acid and alkali resistance.
3. Each holder has individual control valve, so one vacuum pump can support operations of single and multi-branch manifold filter.
4. Each individual manifold component(filter heads, valves and hose connections) is removable for easy cleaning and autoclaving at 121ºC.
5. Valves for vacuum control and air release.
6. Built-in check valve to prevent backflow from the vacuum system.
7. It can be widely used in chemistry analysis, pharmaceutical, sanitation test, water quality analysis, science research fields and so on.
Standard Accessory:
1. 316L stainless steel holder.
2. Glass funnel(300ml)/316L stainless steel funnel(300ml).
3. Borosilicate glass filter head/316L stainless steel filter head.
4. Lid.
5. Stainless steel valve.
6. Clamp of aluminum alloy
Optional Accessories:
1. MVF-1G & MVF-1S: GM-0. 2/0. 33II/0. 5/0. 5II/1. 0 Vacuum pump; Liquid collecting bottle.
2. MVF 3G & MVF-3S: GM-0. 5/0. 5II/1. 0 Vacuum pump; Liquid collecting bottle.
3. MVF-6G & MVF-6S: GM-1. 0 Vacuum pump; Liquid collecting bottle.
Technical Parameters:
| Model | Type | Funnel | Support Screen&Pore Size | Connection | Holder | Package Size(W*D*H) | G.W. |
| MVF-1G |
1-branch |
Glass | PTFE, 20μm | Ground Joint | SS316 | 270*230*130mm | 3kg |
| MVF-1S | SS316 | SS316, 100μm | Integral, SS316 | SS316 | 270*230*130mm | 2.9kg | |
| MVF-3G |
3-branch |
Glass | PTFE, 20μm | Ground Joint | SS316 | 535*360*380mm | 9kg |
| MVF-3S | SS316 | SS316, 100μm | Integral, SS316 | SS316 | 480*260*130mm | 5.7kg | |
| MVF-6G |
6-branch |
Glass | PTFE, 20μm | Ground Joint | SS316 | 965*365*390mm | 17kg |
| MVF-6S | SS316 | SS316, 100μm | Integral, SS316 | SS316 | 900*260*130mm | 10.3kg |
