Muffle Furnace

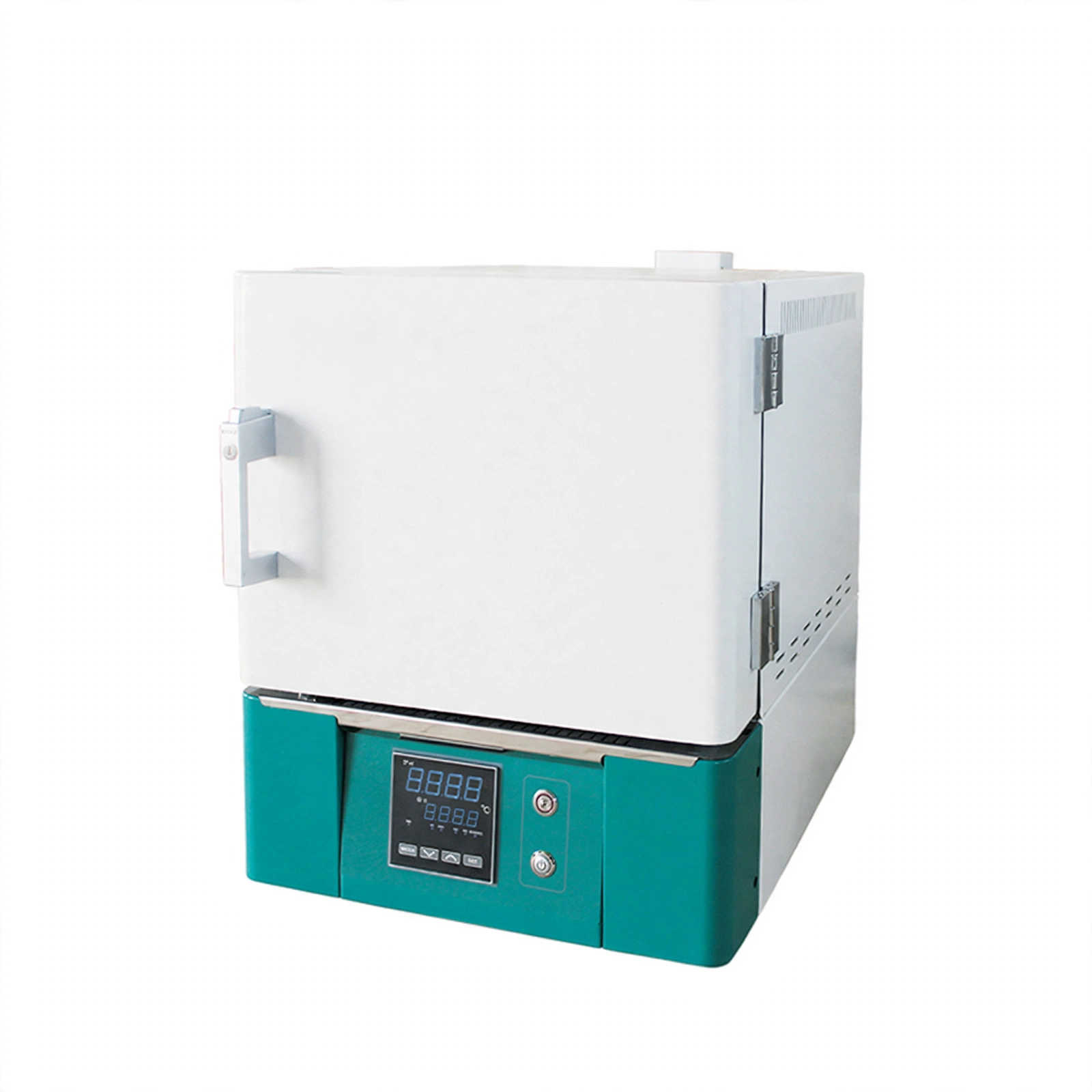

MC2.5-12 MC5-12 MC10-12 Lab 1200 Degree Celsius Muffle Furnace

Model MC2.5-12 MC5-12 MC10-12

The Muffle Furnace is a high-temperature laboratory heating device designed for precise heat treatment, material testing, ashing, and calcination processes. It provides a controlled environment for heating materials to extreme temperatures while ensuring uniform temperature distribution.

Capacity
2 / 7 / 16
Dimensions
450*685*600 / 530*785…
A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Features:

1. The fully mirrored stainless steel furnace mouth remains unchanged despite long-term use.

2. The high-quality, double-insulated ceramic liner ensures stable performance.

3. The vacuum-formed polycrystalline mullite fiber furnace chamber provides efficient heat preservation.

4. The high-precision microcomputer controller and precision sensors are perfectly integrated to ensure precise temperature control.

5. The double-shell design features an air jacket for insulation and dual air ducts, ensuring excellent ventilation and low shell temperature rise.

6. The power connection for MC10-12 is through the air switch

Technical Parameters:

Model MC2.5-12 MC5-12 MC10-12
Max Temp.

1200°C
Temp. Rising Time(Empty) ≤30min
Temp. Accuracy

±1°C
Capacity(L) 2 7 16
Power(KW) 1.5 3 6
Power Supply

Standard: AC220V, 50/60Hz;

Optional: AC110V, 50/60Hz

 Standard: AC380V, 50/60Hz;

Optional: AC220V, 50/60Hz
Internal Size(W*D*H)mm 120*200*80 200*300*200 250*400*160
External Size(W*D*H)mm 450*685*600 530*785*640 600*895*700
Packing Size(W*D*H)mm 570*770*740 650*870*780 720*980*845
Gross Weight(kg) 37 50 96
The details

Specifications

Model
MC2.5-12 / MC5-12 / MC10-12
Max Temp.
1200°C
Temp. Rising Time(Empty)
≤30min
Temp. Accuracy
±1°C
Capacity(L)
2 / 7 / 16
Power(KW)
1.5 / 3 / 6
Power Supply
Standard: AC220V, 50/60Hz; Optional: AC110V, 50/60Hz / Standard: AC380V, 50/60Hz; Optional: AC220V, 50/60Hz / Standard: AC380V, 50/60Hz; Optional: AC220V, 50/60Hz
Internal Size(W*D*H)mm
120*200*80 / 200*300*200 / 250*400*160
External Size(W*D*H)mm
450*685*600 / 530*785*640 / 600*895*700
Packing Size(W*D*H)mm
570*770*740 / 650*870*780 / 720*980*845
Gross Weight(kg)
37 / 50 / 96
How ordering works

From enquiry to delivery

  1. 01Send your enquiry

    Request a quote on WhatsApp, or add several items to your enquiry list and send them together.

  2. 02Confirm the details

    We confirm configuration, voltage, accessories, availability and a delivered price.

  3. 03We source and ship

    We handle procurement, packing and international shipping to your facility.

Need a different configuration?

Tell us the application, capacity or budget. We will suggest the right model or source an alternative.
