Muffle Furnace

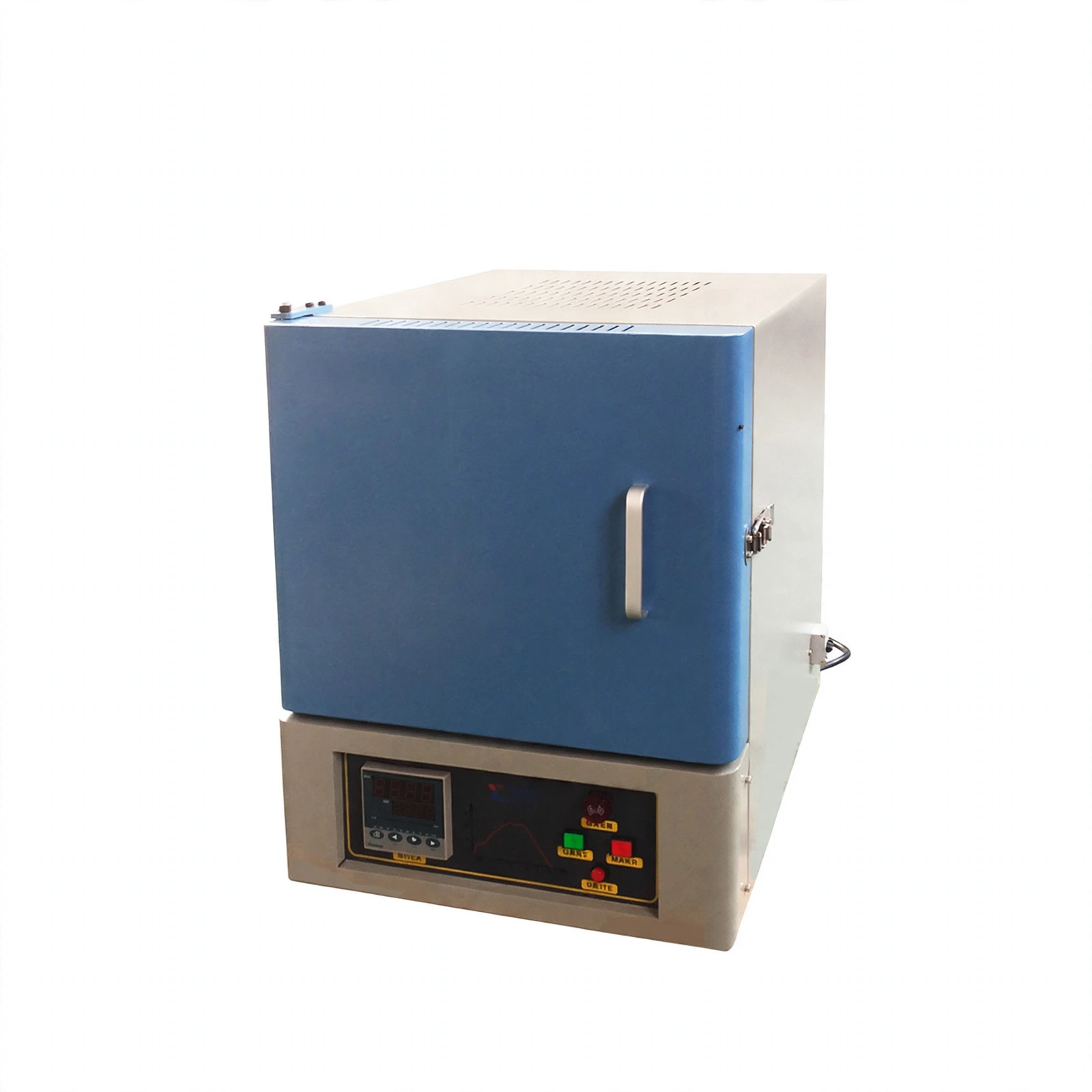

Muffle Furnace MX Series

Model MX6-10T/TP MX8-10T/Tp MX16-10T/TP MX30-10T/TP MX6-12T/TP MX8-12T/TP MX30-12T/TP MX8-13T/TP MX10-13T/TP MX6-16TP MX11-16TP MX6-17TP MX11-17TP

The Muffle Furnace is a high-temperature laboratory heating device designed for precise heat treatment, material testing, ashing, and calcination processes. It provides a controlled environment for heating materials to extreme temperatures while ensuring uniform temperature distribution.

Capacity
6 / 8 / 16 / 30 / 6 /…
Dimensions
500*510*640 / 500*580…
A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Features:

1. TP Series are programmable temperature control.

2. Utilizing vacuum forming technology and a unique thermal insulation design, the furnace shell maintains a low outer surface temperature.

3. Equipped with an over-temperature alarm and built-in parameter password control.

4. Fast heating speed and low energy consumption when the furnace is empty, saving over 50% in energy savings.

5. Display accuracy is ±1°C; the surge temperature is less than 3°C.

6. Multiple safety features ensure excellent safety performance and a long service life.

7. The side-opening door is convenient and easy to use.

8. The power connection is through the air switch.

Technical Parameters:

Model

 MX6-10T/TP MX8-10T/TP MX16-10T/TP MX30-10T/TP MX6-12T/TP MX8-12T/TP MX30-12T/TP

Max. Temp.(℃)

1000

1200

Capacity(L)

 6 8 16 30 6 8 30

Temp. Accuracy

±1℃

Power(kW)

 2.8 3.5 6 10 2.8 3.5 10

Power Supply

 Standard: AC220, 50/60Hz; Optional: AC110, 50/60Hz AC220, 50/60Hz Standard: AC220, 50/60Hz; Optional: AC380, 50/60Hz Standard: AC220, 50/60Hz(3-phase); Optional: AC380, 50/60Hz

AC220, 50/60Hz

 Standard: AC220, 50/60Hz(3-phase); Optional: AC380, 50/60Hz

Heating Rate

1~30℃/min for TP series

Temp. Uniformity

±6℃

Material

External material: Cold rolled steel carbon steel spraying
Internal material: Ceramic inner chamber

Heating Element

Electric furnace wire

Temp. Control

Intelligent temperature controller

Optional

 Accessory

Observation hole; Exhaust chimney; Furnace bottom plate(MX30-12T/TP is standard); Paperless recorder
Functions

Automatically power off once the door is opened; 30 programmable periods(only for T Type)

Internal Size(W*D*H)mm

 180*230*150 200*300*120 250*400*160 300*500*200 180*230*150 200*300*120 300*500*200

External Size(W*D*H)mm

 500*510*640 500*580*610 550*690*660 600*780*710 500*510*640 500*580*610 600*780*710

Packing Size(W*D*H)mm

 630*700*870 630*800*870 680*910*870 870*1110*990 630*700*870 630*800*870 870*1110*990

Gross Weight(kg)

 82 84 111 146 82 84 146

Model

 MX8-13T/TP MX10-13T/TP MX6-16TP MX11-16TP MX6-17TP MX11-17TP

Max. Temp.(°C)

1300

1600

1700

Capacity(L)

 8 10 6 11 6 11

Temp. Accuracy

±1℃

Power(kW)

4

 8 12 6 8

Power Supply

AC220, 50/60Hz

 Standard: AC220, 50/60Hz; Optional: AC380, 50/60Hz(2-phase) AC380, 50/60Hz(2-phase) Standard: AC220, 50/60Hz; Optional: AC380, 50/60Hz(2-phase) AC380, 50/60Hz(2-phase)

Heating Rate

1~30°C/min for TP series

1~15°C

Material

External material: Cold rolled steel carbon steel spraying

Internal material: Ceramic inner chamber

Heating Element

Silicon carbon rod S type thermocouple

Silicon molybdenum rod type B thermocouple

Temp. Control

Intelligent temperature controller

Optional

 Accessory

Observation hole; Exhaust chimney; Furnace bottom plate; Paperless recorder

Exhaust chimney; Paperless recorder
Functions

Automatically power off once the door is opened; 30 programmable periods(only for T Type)

Automatically power off once the door is opened

Internal Size(W*D*H)mm

 200*300*120 200*300*180 150*300*120 200*300*180 150*300*120 200*300*180

External Size(W*D*H)mm

 580*630*700 580*630*750 750*810*1360 1000*900*1600 750*810*1360 1000*900*1600

Package Size(W*D*H)mm

 710*910*920 770*860*1050 920*800*1150 1200*1100*1800 800*920*1150 1200*1100*1800

Gross Weight(kg)

 119 130 237 350 237 350
The details

Specifications

Model
MX6-10T/TP / MX8-10T/TP / MX16-10T/TP / MX30-10T/TP / MX6-12T/TP / MX8-12T/TP / MX30-12T/TP
Max. Temp.(℃)
1000 / 1200 / 1200 / 1200 / 1200 / 1200 / 1200
Capacity(L)
6 / 8 / 16 / 30 / 6 / 8 / 30
Temp. Accuracy
±1℃
Power(kW)
2.8 / 3.5 / 6 / 10 / 2.8 / 3.5 / 10
Power Supply
Standard: AC220, 50/60Hz; Optional: AC110, 50/60Hz / AC220, 50/60Hz / Standard: AC220, 50/60Hz; Optional: AC380, 50/60Hz / Standard: AC220, 50/60Hz(3-phase); Optional: AC380, 50/60Hz / AC220, 50/60Hz / Standard: AC220, 50/60Hz(3-phase); Optional: AC380, 50/60Hz / Standard: AC220, 50/60Hz(3-phase); Optional: AC380, 50/60Hz
Heating Rate
1~30℃/min for TP series
Temp. Uniformity
±6℃
Material
External material: Cold rolled steel carbon steel sprayingInternal material: Ceramic inner chamber
Heating Element
Electric furnace wire
Temp. Control
Intelligent temperature controller
Optional
Accessory / Observation hole; Exhaust chimney; Furnace bottom plate(MX30-12T/TP is standard); Paperless recorder / Observation hole; Exhaust chimney; Furnace bottom plate(MX30-12T/TP is standard); Paperless recorder / Observation hole; Exhaust chimney; Furnace bottom plate(MX30-12T/TP is standard); Paperless recorder / Observation hole; Exhaust chimney; Furnace bottom plate(MX30-12T/TP is standard); Paperless recorder / Observation hole; Exhaust chimney; Furnace bottom plate(MX30-12T/TP is standard); Paperless recorder / Observation hole; Exhaust chimney; Furnace bottom plate(MX30-12T/TP is standard); Paperless recorder
Optional
Functions / Automatically power off once the door is opened; 30 programmable periods(only for T Type) / Automatically power off once the door is opened; 30 programmable periods(only for T Type) / Automatically power off once the door is opened; 30 programmable periods(only for T Type) / Automatically power off once the door is opened; 30 programmable periods(only for T Type) / Automatically power off once the door is opened; 30 programmable periods(only for T Type) / Automatically power off once the door is opened; 30 programmable periods(only for T Type)
Internal Size(W*D*H)mm
180*230*150 / 200*300*120 / 250*400*160 / 300*500*200 / 180*230*150 / 200*300*120 / 300*500*200
External Size(W*D*H)mm
500*510*640 / 500*580*610 / 550*690*660 / 600*780*710 / 500*510*640 / 500*580*610 / 600*780*710
Packing Size(W*D*H)mm
630*700*870 / 630*800*870 / 680*910*870 / 870*1110*990 / 630*700*870 / 630*800*870 / 870*1110*990
Gross Weight(kg)
82 / 84 / 111 / 146 / 82 / 84 / 146
