Muffle Furnace

Muffle Furnace

Model MX2-12T/TP MX7-12T/TP MX16.5-12T/TP MX30.5-12T/TP

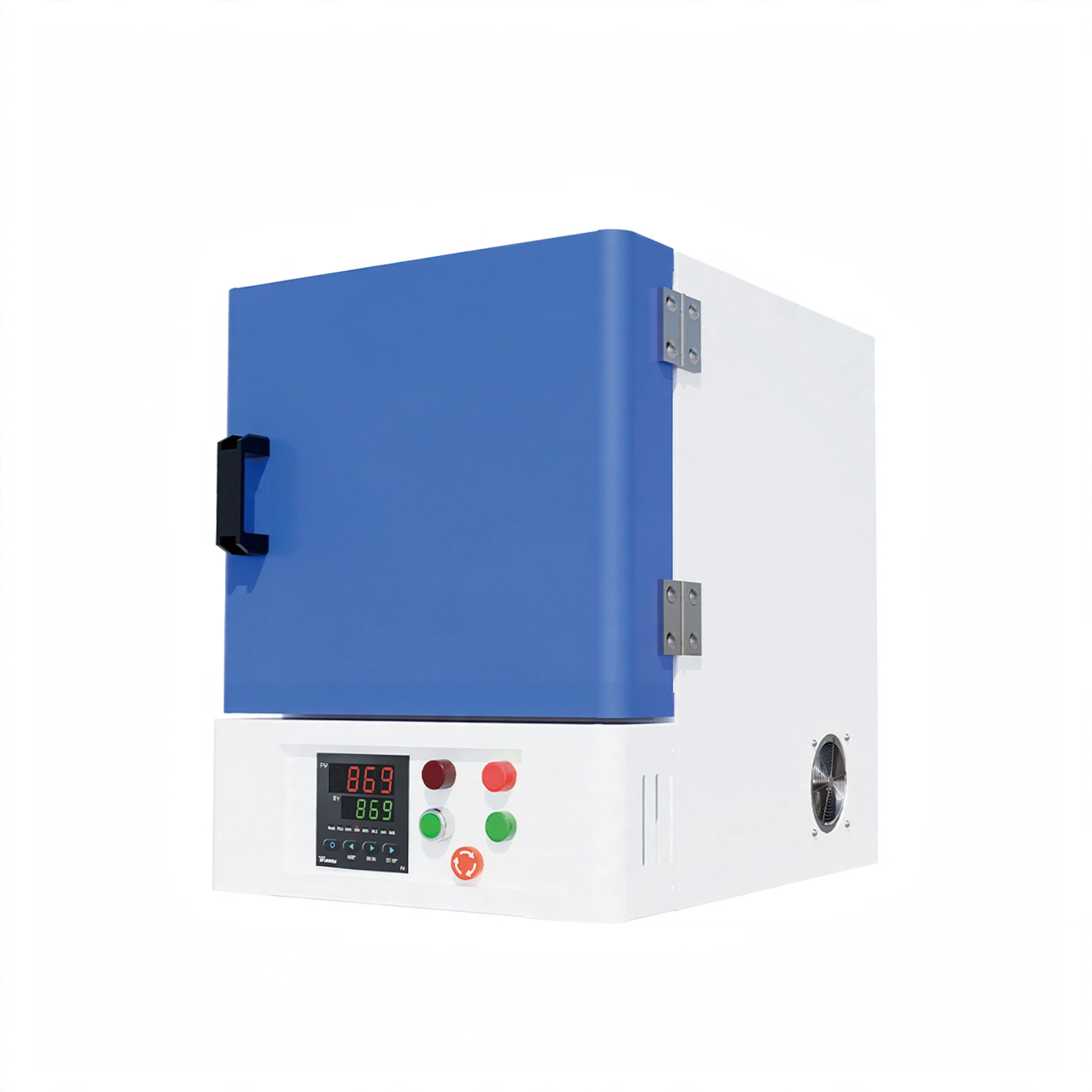

The Muffle Furnace is a high-temperature heating unit designed for laboratory and industrial applications. Constructed with a cold-rolled steel exterior and high-density ceramic fiber chamber, it ensures rapid heating and excellent thermal insulation. Advanced PID microprocessor control provides precise temperature regulation with over-temperature alarm and auto-stop safety features. The automatic parallel pressure door design maintains internal temperature uniformity while preventing heat leakage.

Capacity
2 / 8 / 16 / 30
Net weight
43 / 74 / 105 / 135
Dimensions
480*580*605 / 600*635…
A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Features:

1. External material: cold-rolled steel with anti-bacterial powder coating and internal material: high density ceramic fiber.

2. Dual ceramic inner chamber and hollow heat insulation ensure that the temperature can go up quickly.

3. Automatic parallel pressure door technology ensures the inner chamber temperature evenness and without leakage under the high temperature.

4. PID micro digital screen controller, fixing temperature, over-temperature alarming and auto-stop.

5. Safety protection measures: thermocouple failure, cut off power automatically when open the door and over temperature protection to avoid accidents occurring.

6. Double-shell hollow thermal insulation, the shell not hot and the furnace interior cool quickly.

7. TP series has 50-segment programmable temperature control, T series only has a single temperature segment.

Technical Parameters:

Model MX2-12T/TP MX7-12T/TP MX16.5-12T/TP MX30.5-12T/TP
Max. Temp.(℃)

1200
Capacity(L) 2 8 16 30
Temp. Accuracy(℃)

1
Temp. Uniformity(℃)

±15
Rising Time(Empty)

35 minutes
Material

External material: cold rolled steel carbon steel spraying

Internal material: ceramic inner chamber
Heating Element

Silicon carbide rod
Function

TP series has 50-segment programmable temperature control, T series only has a single temperature segment.
Standard Accessory

Two crucibles, one pair of crucible pliers
Optional Accessory

Power off upon door opening, timing function
Consumption(KW) 1.5 3.5 8 12
Power Supply

Standard: AC220V, 50/60Hz; optional: AC110V, 50/60Hz

 Standard: AC380V, 50Hz
Internal Size(W*D*H)mm 200*120*80 300*200*120 400*250*160 500*300*200
External Size(W*D*H)mm 480*580*605 600*635*690 645*885.5*760 720*920*813
Net Weight(kg) 43 74 105 135
Package Size(W*D*H)mm 755*695*945 765*865*905 825*1015*1000 860*1066*1025
Gross Weight(kg) 82 103 139 173
The details

Specifications

Model
MX2-12T/TP / MX7-12T/TP / MX16.5-12T/TP / MX30.5-12T/TP
Max. Temp.(℃)
1200
Capacity(L)
2 / 8 / 16 / 30
Temp. Accuracy(℃)
1
Temp. Uniformity(℃)
±15
Rising Time(Empty)
35 minutes
Material
External material: cold rolled steel carbon steel sprayingInternal material: ceramic inner chamber
Heating Element
Silicon carbide rod
Function
TP series has 50-segment programmable temperature control, T series only has a single temperature segment.
Standard Accessory
Two crucibles, one pair of crucible pliers
Optional Accessory
Power off upon door opening, timing function
Consumption(KW)
1.5 / 3.5 / 8 / 12
Power Supply
Standard: AC220V, 50/60Hz; optional: AC110V, 50/60Hz / Standard: AC380V, 50Hz / Standard: AC380V, 50Hz / Standard: AC380V, 50Hz
Internal Size(W*D*H)mm
200*120*80 / 300*200*120 / 400*250*160 / 500*300*200
External Size(W*D*H)mm
480*580*605 / 600*635*690 / 645*885.5*760 / 720*920*813
Net Weight(kg)
43 / 74 / 105 / 135
Package Size(W*D*H)mm
755*695*945 / 765*865*905 / 825*1015*1000 / 860*1066*1025
Gross Weight(kg)
82 / 103 / 139 / 173
