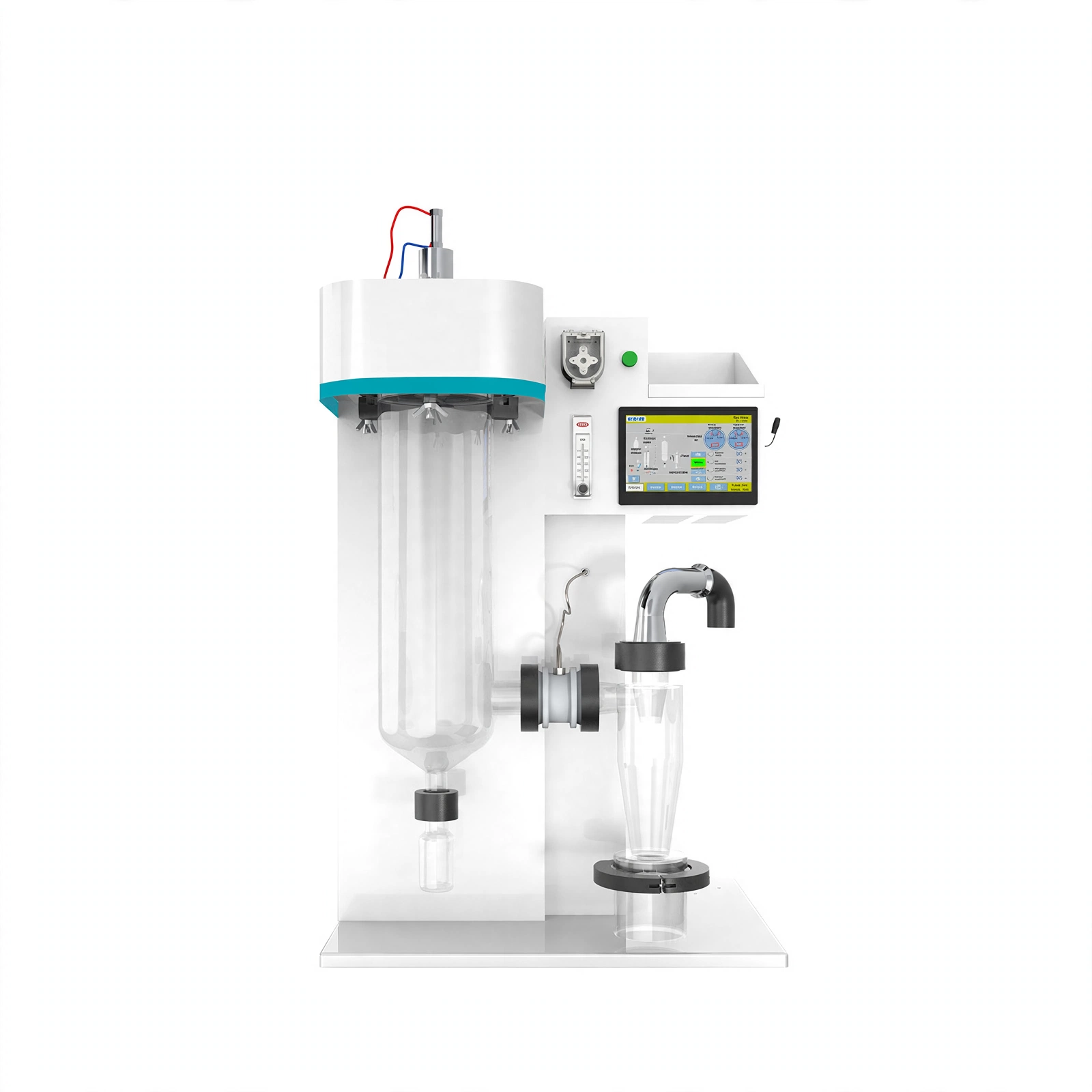

Mini Spray Dryer rapidly dries the liquid into powder by atomizing it and exposing it to hot air. It is compact in size, easy to operate, suitable for handling small batches of samples, and widely used in research and small-scale trials in fields such as food, medicine, and chemicals. It can retain the activity of the materials and has high efficiency, making it an ideal equipment for scientific research and small-scale production.
Ask about availability, configuration and delivery to your location. We reply personally.
Enquiry only. No payment is taken.Features:
1. High-quality nozzles ensure the high precision of the equipment and the maximum service life.
2. Machine buttons, thermometers, air pipes, and touch screens are all ergonomically designed, fast plugging and unplugging, and user-friendly operation.
3. Optional filter bag: High exhaust filtration efficiency, can capture fine dust with particle size larger than 1 micron, and the air purification efficiency can reach more than 99%.
4. The control interface is beautifully displayed, easy to operate, and fully functional.
Technical Parameters:
| Model | SD-Mini |
| Maximum Water Evaporation | 2000ml/h |
| Inlet Air Temperature | 30~250℃±1℃ |
| Outlet Air Temperature | 30~120℃±1℃ |
| Spray System | 0.7mm diameter dual-fluid nozzle |
| Average Drying Time | 1.0~1.5 seconds |
| Automatic Blocking Device | The frequency of automatic needle penetration is adjustable, 0~60 seconds/time |
| Display | 7-inch color touch screen |
| Quick Release Design | Thermometer, air line, power supply, all use quick-plug design |
| Operation Mode | Two operation modes: manual and automatic, which can be switched between each other |
| Standard Accessories | Air compressor |
| Optional Accessories | Magnetic stirrer, weight device, filter bag, special-purpose toolbox, wireless network control module, iPad Air(Dedicated), laptop(Dedicated), 1.2mm large-bore nozzle, 0.4mm small-bore nozzle |
| Consumption | 5KW |
| Power Supply | AC220V, 50/60Hz(Standard),
AC110V, 50/60Hz(Optional, external transformer) |
| External Size(L*W*H) | 620*570*900mm, 510*420*680mm |
| Net Weight | 65kg, 34kg |
| Packing Size(L*W*H) | 750*700*1150mm, 520*520*870mm |
| Gross Weight | 135kg, 40kg |
