Mode selection: There are two modes of white light and blue light, with blue light and white light switch function. with single timing, cumulative timing, countdown function. Light source: LED blue light source, produce natural soft blue light. Provide high strength cold light source to light treatment, prevent heat conduction effects on children.
Ask about availability, configuration and delivery to your location. We reply personally.
Enquiry only. No payment is taken.Features:

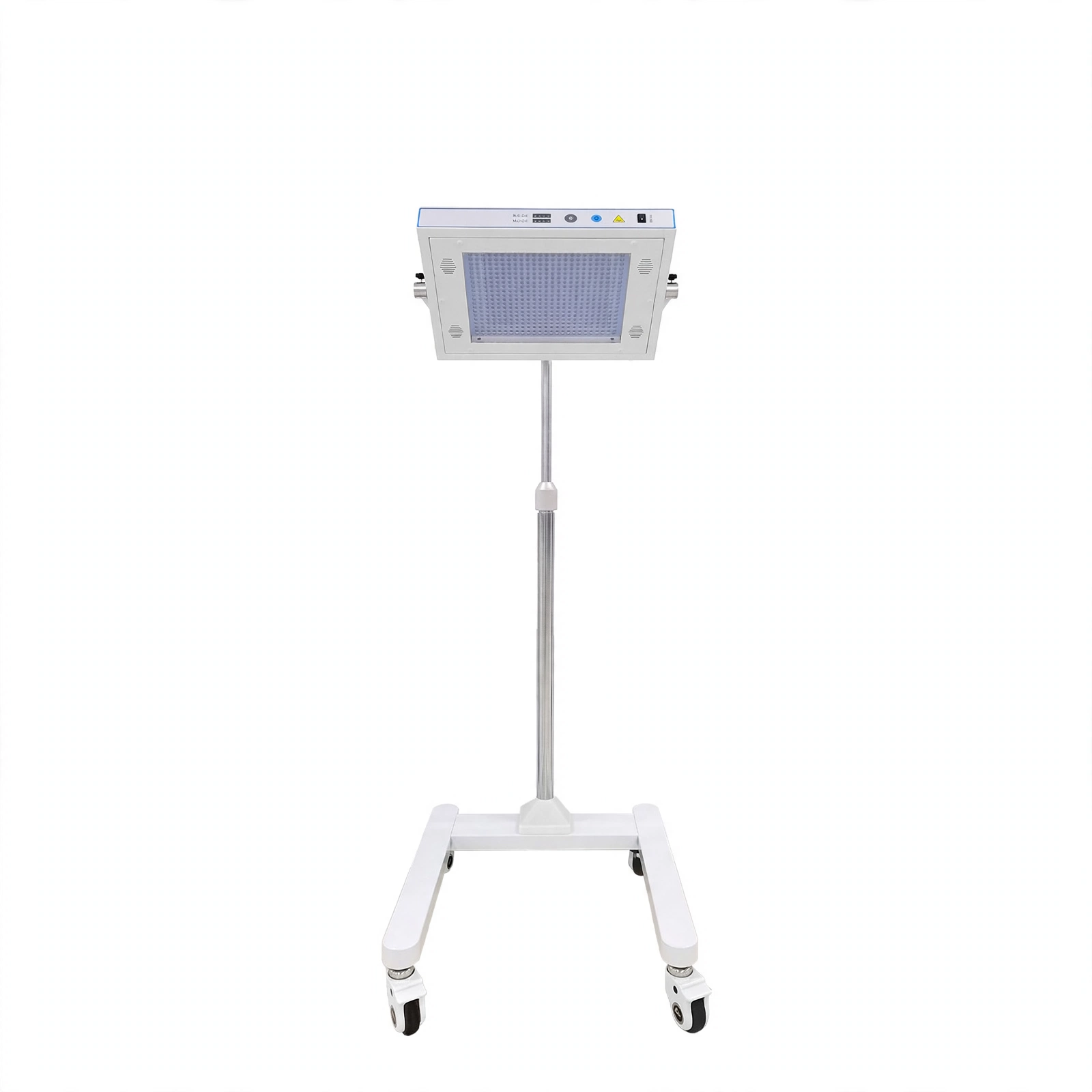

BHZ-001:
1. The adjustable range of the irradiation angle for the mobile jaundice treatment lamp box should be from 0° to 90°, with free adjustment up and down.
2. Square lift guide, guide to prevent left and right rotation at the same time.
BHZ-002:
1. It can be fixed to the top of the incubator by the bottom suction cup.
Technical Parameters:
| Model | BHZ-001 | BHZ-002 |
| Light Source |
LED |
|
| Dominant Wavelength of Blue Light(nm) |
425~475 |
|
| Lifetime of the LED |
5000h |
|
| Product Service Life |
6 years |
|
| Radiation Therapy Distance(mm) | Distance light box 450 | Distance light box 450 |
| Phototherapy Effective Surface Area(mm) |
300*200 |
|
| The Total lrradiance for Maximum Bilirubin on the Effective Surface Area | 5.2mW/cm2±0.5mW/cm2 | 2.4mW/cm2+0.3mW/cm2 |
| The Total lrradiance on the Effective Surface Area? | ≥2.5mW/cm2 | ≥1.0mW/cm2 |
| Average Value of the Total lrradiance for Bilirubin | 4.0mW/cm2±0.5mW/cm2 | 1.5mW/cm2±0.5mW/cm2 |
| Uniformity of the Total lrradiance for Bilirubin |
>0.4 |
|
| Noise |
≤45dB(A) |
|
| Light Box lrradiation Angle Adjustment Range | 0~90° adjusted up and down | |
| Light Box Height Adjustment Range(mm) | 1350~1650 | |
| Display Timer Range |
0~9999hours59minutes |
|
| Ambient Air Movement Rate(m/s) |
<0.3 |
|
| Working Temp. |
5~35℃ |
|
| Working Relative Humidity |
30%~80% |
|
| Working Atmospheric Pressure |
700~1060hPa |
|
| Overvoltage Category |
II |
|
| Pollution Grade |
2 |
|
| Waterproofing Grade |
IPXO |
|
| Application Environment Elevation(m) |
≤3000 |
|
| Power Supply |
AC100~240V, 50/60Hz |
|
| External Size(W*D*H) | 705*620*1350~1650mm | 470*320*65mm |
| Packing Size(W*D*H) | 750*710*1250mm | 615*415*180mm |
| Net Weight | 15kg | 4kg |
| Gross Weight | 33kg | 5.1kg |
Ask our team for the full specification sheet for this model.
Request a quote on WhatsApp, or add several items to your enquiry list and send them together.
We confirm configuration, voltage, accessories, availability and a delivered price.
We handle procurement, packing and international shipping to your facility.
