Nucleic Acid Extractor

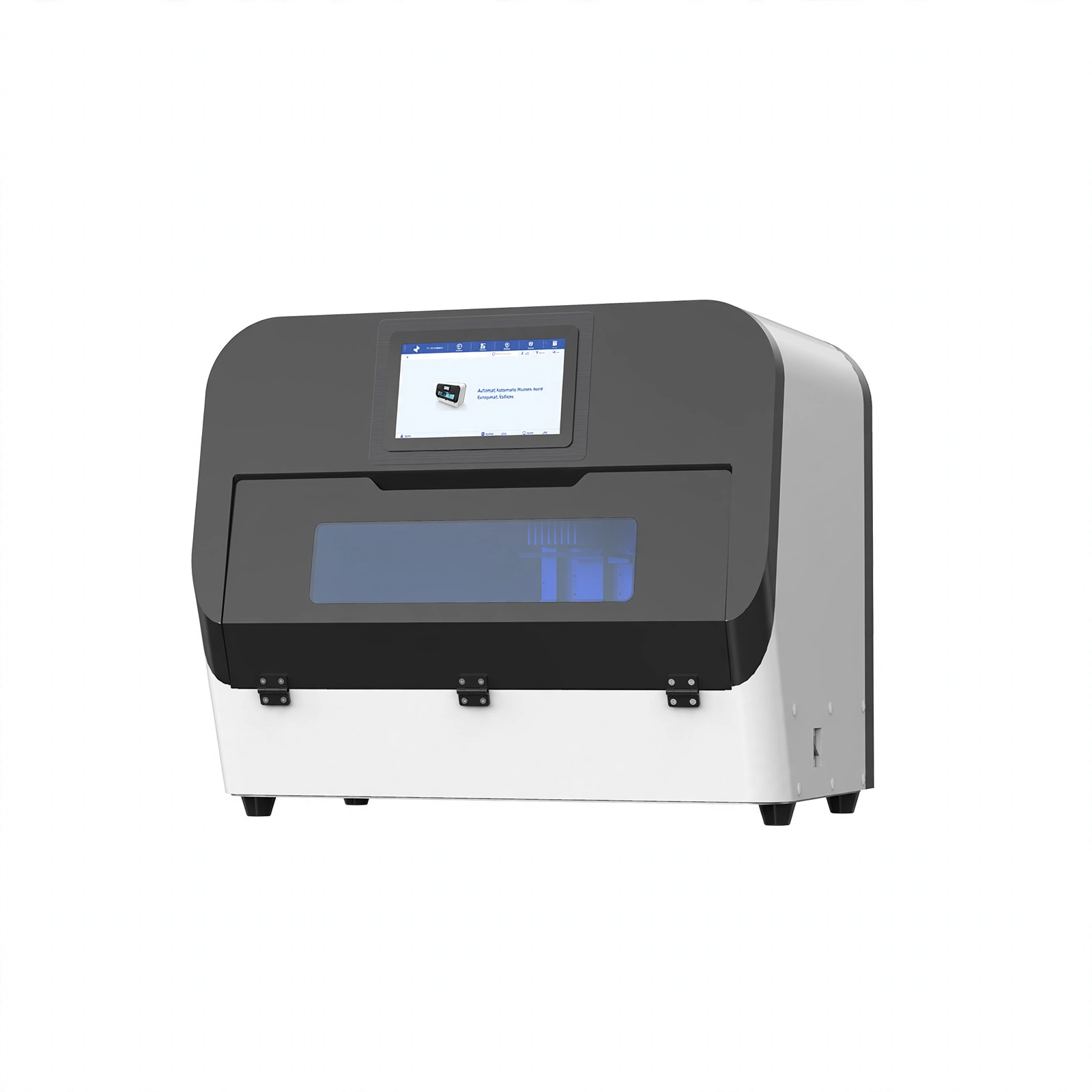

Nucleic Acid Extractor BK-HS96

Model BK-HS96

BK-HS96 is a high throughput, high sensitivity automatically extracted nucleic acid purification equipment, matching nucleic acid extraction kits is used to automatically complete the extraction of sample nucleic acid, flexible, stable result, low cost, equipped with efficient filtration device and safety gate design, it can effectively avoid cross infection and ensure the quality of nucleic acid extraction., guarantee the quality of nucleic acid.

A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Features:

1. Display: 10.1 inch touch screen, easy to operate.

2. Accurate temperature control and rapid temperature rise, can be adopted to actively reduce to room temperature and store samples in a short time at low temperature.

3. The module is integrated with shocking and heating, which can be mixed with shock while heating, saving extraction time.

4. Equipped with ultraviolet disinfection lamp, HEPA high efficiency filter and safety door protection function, it can effectively prevent aerosol pollution.

Technical Parameters:

Model BK-HS96
Nucleic Acid Extraction Method Paramagnetic particle method
Sample Capacity 96-well
Sample Volume 20~1000μl
Extraction Time 11min~60min
Magnetic Bead Recovery ≥98%
Magnetic Flux of Bar ≥4500Gs
Operating Temperature RT~105℃
Shock Function Yes
Temperature Accuracy 0.1℃
Sample Protection Function Power on self-check, power off protection, high-temperature alarm, over-temperature protection
Disinfection Method UV light
Safety Door Design The instrument is suspended when the safety door is opened
Operating System Windows system
Scanning Optional
Storage >1000
Interface USB interface
Power Supply AC100~240V, 50Hz/60Hz
Package Size(W*D*H) 940*710*910mm
Gross Weight 110kg
The details

Specifications

Model
BK-HS96
Nucleic Acid Extraction Method
Paramagnetic particle method
Sample Capacity
96-well
Sample Volume
20~1000μl
Extraction Time
11min~60min
Magnetic Bead Recovery
≥98%
Magnetic Flux of Bar
≥4500Gs
Operating Temperature
RT~105℃
Shock Function
Yes
Temperature Accuracy
0.1℃
Sample Protection Function
Power on self-check, power off protection, high-temperature alarm, over-temperature protection
Disinfection Method
UV light
Safety Door Design
The instrument is suspended when the safety door is opened
Operating System
Windows system
Scanning
Optional
Storage
>1000
Interface
USB interface
Power Supply
AC100~240V, 50Hz/60Hz
Package Size(W*D*H)
940*710*910mm
Gross Weight
110kg
