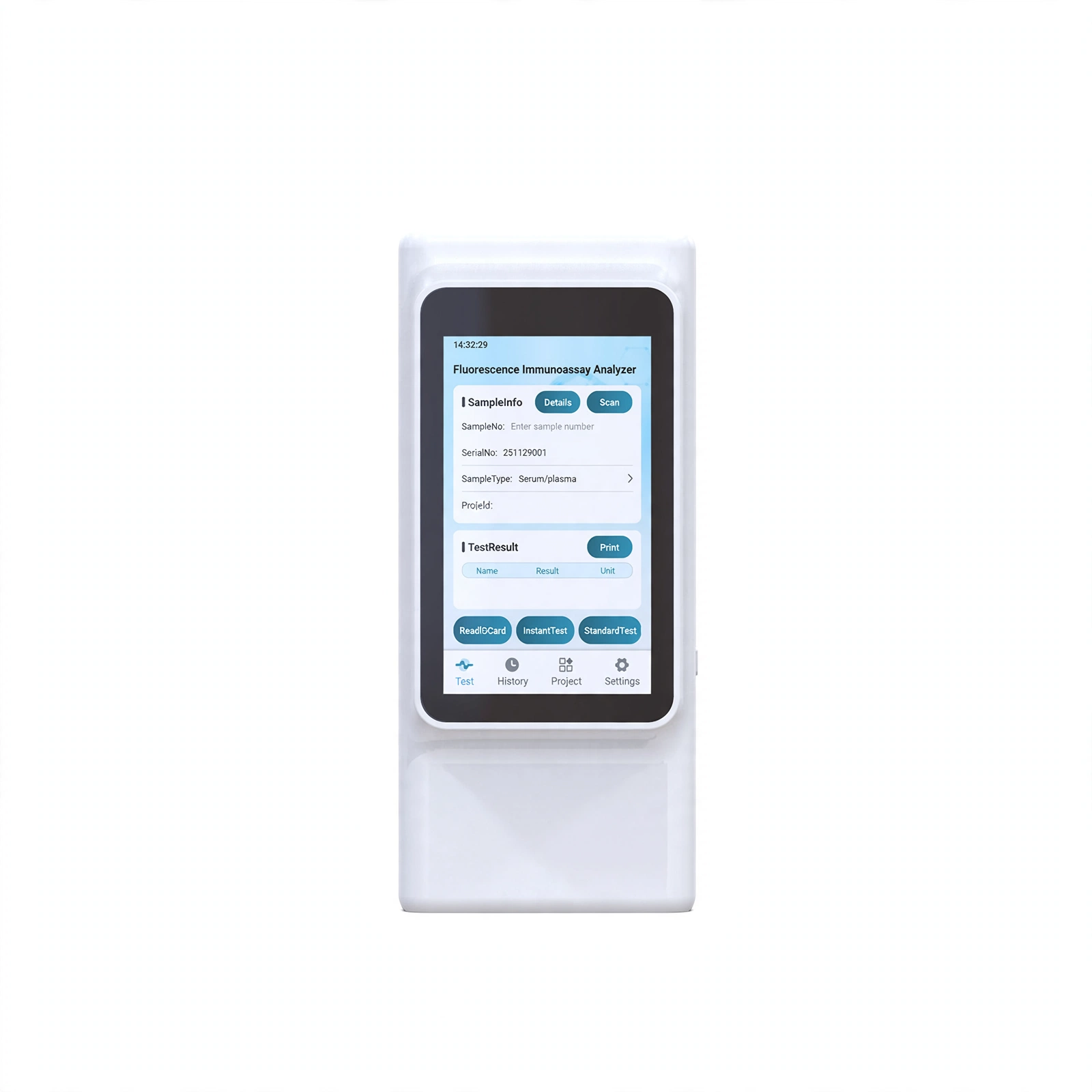

The BKP500 portable fluorescence immunoassay analyzer uses fluorescence immunoassay to accurately quantify specific analytes in human serum, plasma, whole blood, or urine samples. This instrument features fast detection speed, compact portability, long battery life, and supports barcode recognition and intelligent data management. It is suitable for disease control centers, scientific laboratories, field research, and emergency research under special conditions.
Ask about availability, configuration and delivery to your location. We reply personally.
Enquiry only. No payment is taken.Features:
1. Lightweight and compact, handheld design.
2. Long battery life: built-in high-performance lithium battery, providing up to 4 hours of continuous operation.
3. Single test completed in just 8 seconds; supports multiple tests per card, significantly improving work efficiency.
4. Equipped with a 5.0-inch color touchscreen, user-friendly interface, rapid response, and intuitive workflow.
5. Large storage capacity: can store over 100,000 data entries.
6. Optional thermal printer available.
Technical Parameters:
| Model | BKP500 |
| Reaction Principle | Fluorescence Immunoassay |
| Detection Channel | Single Channel |
| Detection Speed | <8 seconds per test |
| Detection Mode | Single-item per card; Multi-item combined detection per card |
| Sample Type | 20 customizable sample types (Whole blood, serum, plasma, urine, etc.) |
| Screen Size | 5.0-inch color touchscreen |
| Data Storage Capacity | >100,000pcs |
| Printer | External (Bluetooth/USB) thermal printer (Optional) |
| Barcode Scanning | 1D code, 2D code |
| Battery Life (Full Charge) | Continuous operation for 4 hours |
| Data Transmission | LIS, WIFI, USB, Bluetooth; 4G (Optional) |
| Power Supply | AC100~240V, 50/60Hz |
| Instrument Size(W*D*H) | 210*90*45mm |
| Net Weight | 0.75kg |
| Packing Size(W*D*H) | 250*160*145mm |
| Gross Weight | 2.5kg |
Request a quote on WhatsApp, or add several items to your enquiry list and send them together.
We confirm configuration, voltage, accessories, availability and a delivered price.
We handle procurement, packing and international shipping to your facility.
