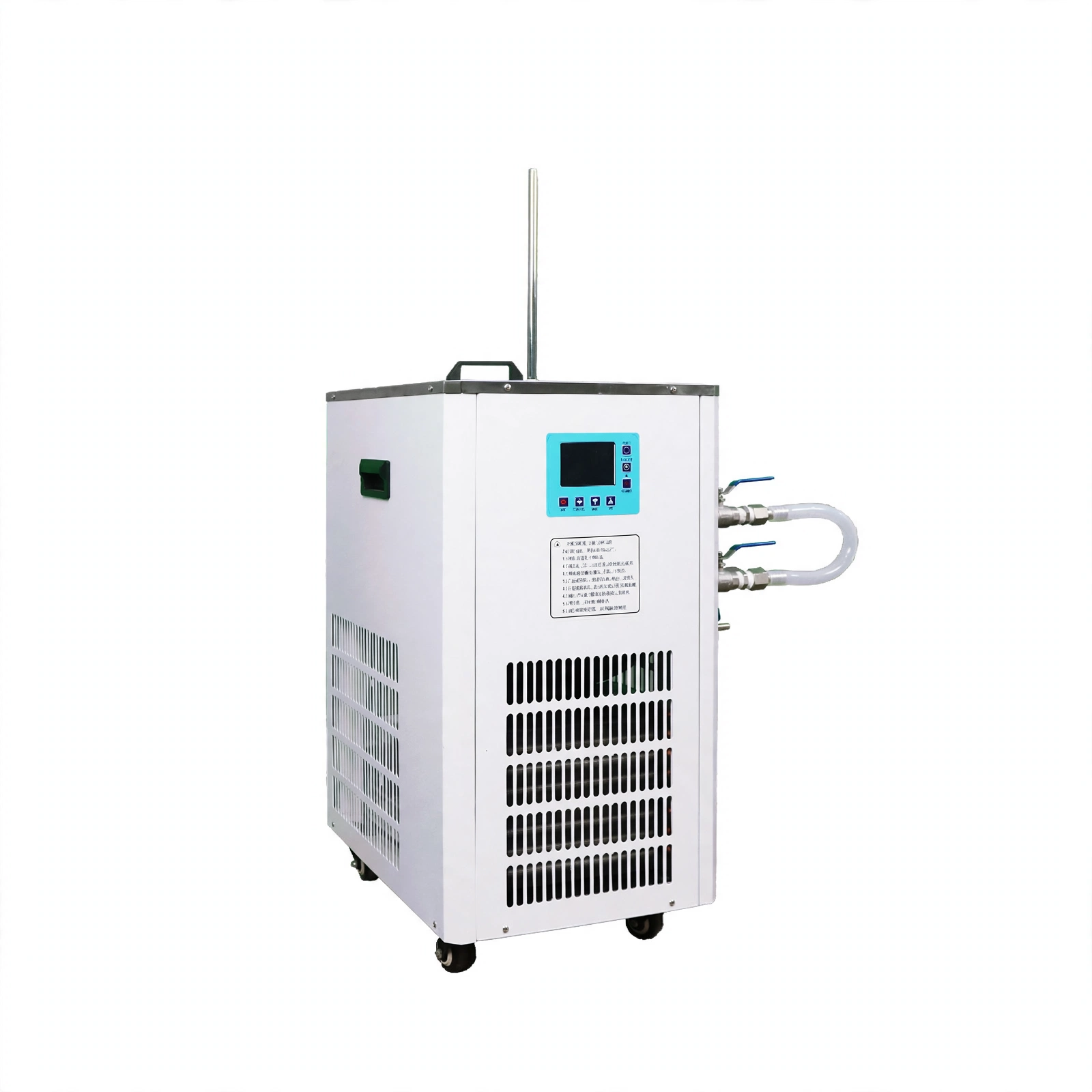

The refrigerated and heating circulator is a laboratory instrument for circulating high and low-temperature liquids for precise temperature control. It provides high and low-temperature liquids and a water bath, providing a highly precise, controlled, and uniform temperature source. It is widely used in bioengineering, defense, food, chemical engineering, metallurgy, chemical analysis, petroleum, and other fields.
Ask about availability, configuration and delivery to your location. We reply personally.
Enquiry only. No payment is taken.Features:
1. Supports both internal and external circulation.
2. The control interface is simple and easy to use, with upper and lower temperature alarms.
3. Has multiple safety protections.
4. Has the timing function.
5. Has the system self-tuning function.
Technical Parameters:
| Model | BJPX-DL5/10 | BJPX-DL5/20 | BJPX-DL10/10 | BJPX-DL10/10-L | BJPX-DL10/20 |
| Temperature Control Range | -10~100℃ | -20~100℃ | -10~100℃ | -10~100℃ | -20~100℃ |
| Display Mode |
LCD |
||||
| Temperature Control Accuracy |
±0.1℃ |
||||
| Liquid Storage Capacity |
5L |
10L |
|||
| Cooling Capacity | 319~1328W | 263~1328W | 884~1894W | 280~1100W | 813~2733W |
| Refrigerant |
R134a |
||||
| Control Method |
Intelligent digital display PID temperature control |
||||
| Refrigerant Cooling Method |
Air cooling |
||||
| Insulation Material |
Rubber and plastic insulation pipe |
||||
| Safety Protection |
Leakage, overload, delay, overcurrent |
||||
| Opening Size |
φ190mm |
φ200mm | 160*120mm | φ200mm | |
| Liquid Storage Tank |
φ220*180mm |
φ250*250mm | 280*200*180mm | φ250*250mm | |
| Circulation Power |
40W |
||||
| Flow Rate |
20L/min |
8L/min | 20L/min | ||
| Maximum Lift |
4~6m |
2.4m | 4~6m | ||
| Power Supply |
AC220V, 50/60Hz |
||||
| Product Size(W*D*H) |
360*520*760mm |
360*520*720mm | 360*400*850mm | 360*520*720mm | |
| Net Weight |
38kg |
45kg |
|||
| Packing Size(W*D*H) |
660*860*1150mm |
660*860*1150mm | 420*530*870mm | 660*860*1150mm | |
| Gross Weight |
48kg |
50kg |
|||
