Class N Autoclave

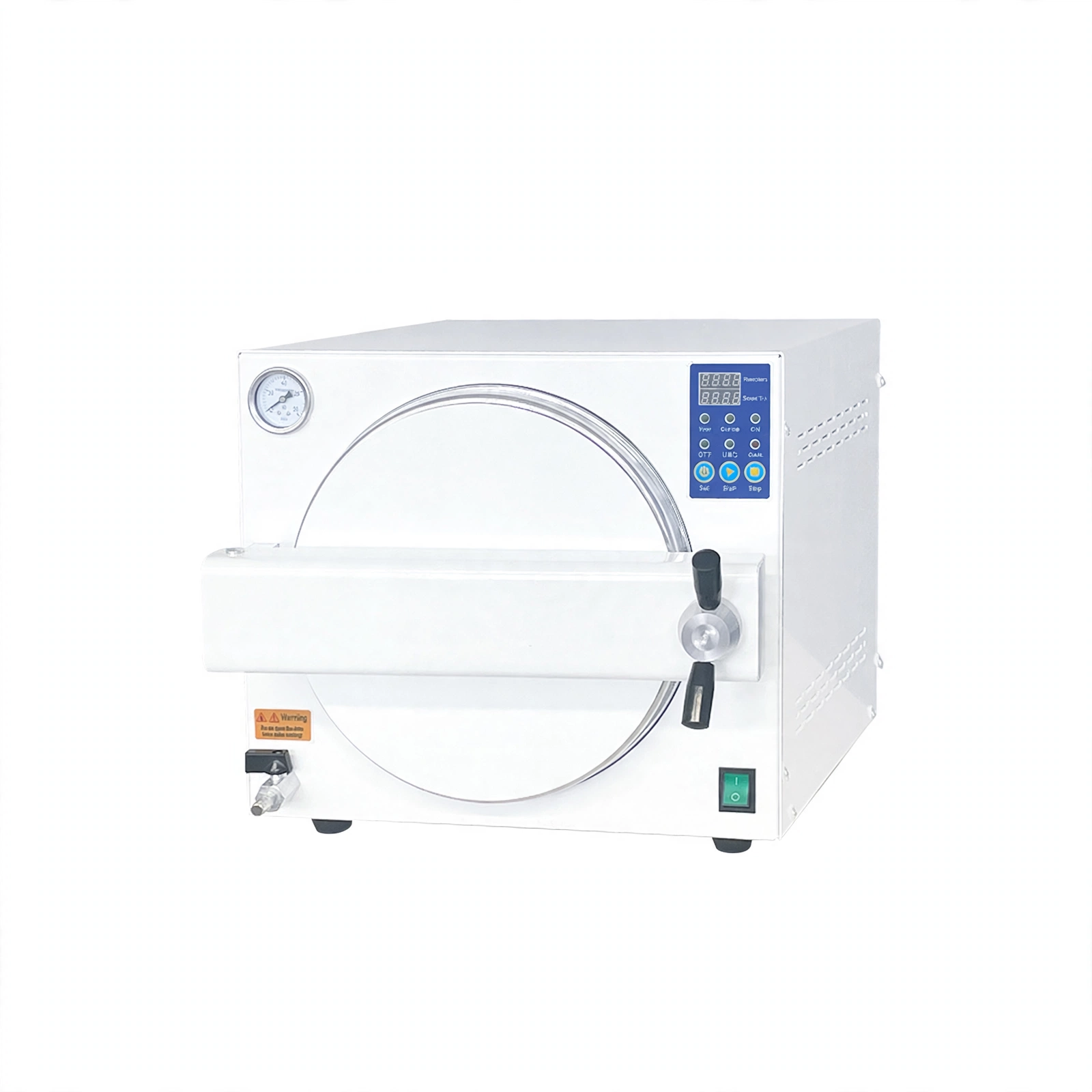

Table Top Autoclave Class N Series BKX-T18E BKX-T23E

Model BKX-T18E BKX-T23E Table-top

Class N autoclave discharges the cold air in the sterilization chamber by gravity displacement, saturates the internal steam, and reaches the set pressure and temperature. To achieve the purpose of sterilizing the items to be sterilized. Suitable for stomatology, ophthalmology, beauty, operating room and other places. It is suitable for sterilization of glassware, bare metal utensils, and unencapsulated solid instruments.

Capacity
18L / 23L
Power
1.5KW / 2KW
Net weight
24kg / 27kg
Dimensions
500*400*350mm / 600*4…
A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Features:

1. High quality stainless steel sterilization chamber and sealing cover.

2. Microcomputer control for automatic circulation, with 121°C and 134°C freely settable.

3. LED display with touch buttons.

4. Equipped with standard test interface.

5. European Class N standards.

6. Automatic protection functions: over-temperature protection, over-pressure protection, low water level protection to prevent dry burning.

7. Buzzer reminder at the end of sterilization and automatic shutdown.

8. Automatically discharge cold air. Automatically discharge steam at the end of sterilization.

9. Built-in steam generating device to quickly provide saturated steam.

10. Two sterilization procedures at 121°C and 134°C are selectable.

Technical Parameters:

Model BKX-T18E BKX-T23E
Capacity 18L 23L
Door

Manual
Display

LED
Max Designed Pressure

0.25MPa
Working Pressure

0.22MPa
Max Design Temp.

139℃
Working Temp.

121/134℃
Temp. Precision

0.1℃
Chamber Material

SUS304
Chamber Size φ250*370mm φ250*452mm
Altitude ≤2500m
Rack 1 rack with 2 trays
Standard Accessories Protective gloves, draining hose, door seal
Consumption 1.5KW 2KW
Power Supply

AC220V, 50Hz(Standard)

AC110V, 60Hz(Optional)
External Size(W*D*H) 500*400*350mm 600*400*350mm
Net Weight 24kg 27kg
Package Size(W*D*H) 540*450*390mm 640*450*390mm
Gross Weight 26kg 29kg
The details

Specifications

Model
BKX-T18E / BKX-T23E
Capacity
18L / 23L
Door
Manual
Display
LED
Max Designed Pressure
0.25MPa
Working Pressure
0.22MPa
Max Design Temp.
139℃
Working Temp.
121/134℃
Temp. Precision
0.1℃
Chamber Material
SUS304
Chamber Size
φ250*370mm / φ250*452mm
Altitude
≤2500m
Rack
1 rack with 2 trays
Standard Accessories
Protective gloves, draining hose, door seal
Consumption
1.5KW / 2KW
Power Supply
AC220V, 50Hz(Standard)AC110V, 60Hz(Optional)
External Size(W*D*H)
500*400*350mm / 600*400*350mm
Net Weight
24kg / 27kg
Package Size(W*D*H)
540*450*390mm / 640*450*390mm
Gross Weight
26kg / 29kg
