Class N Autoclave

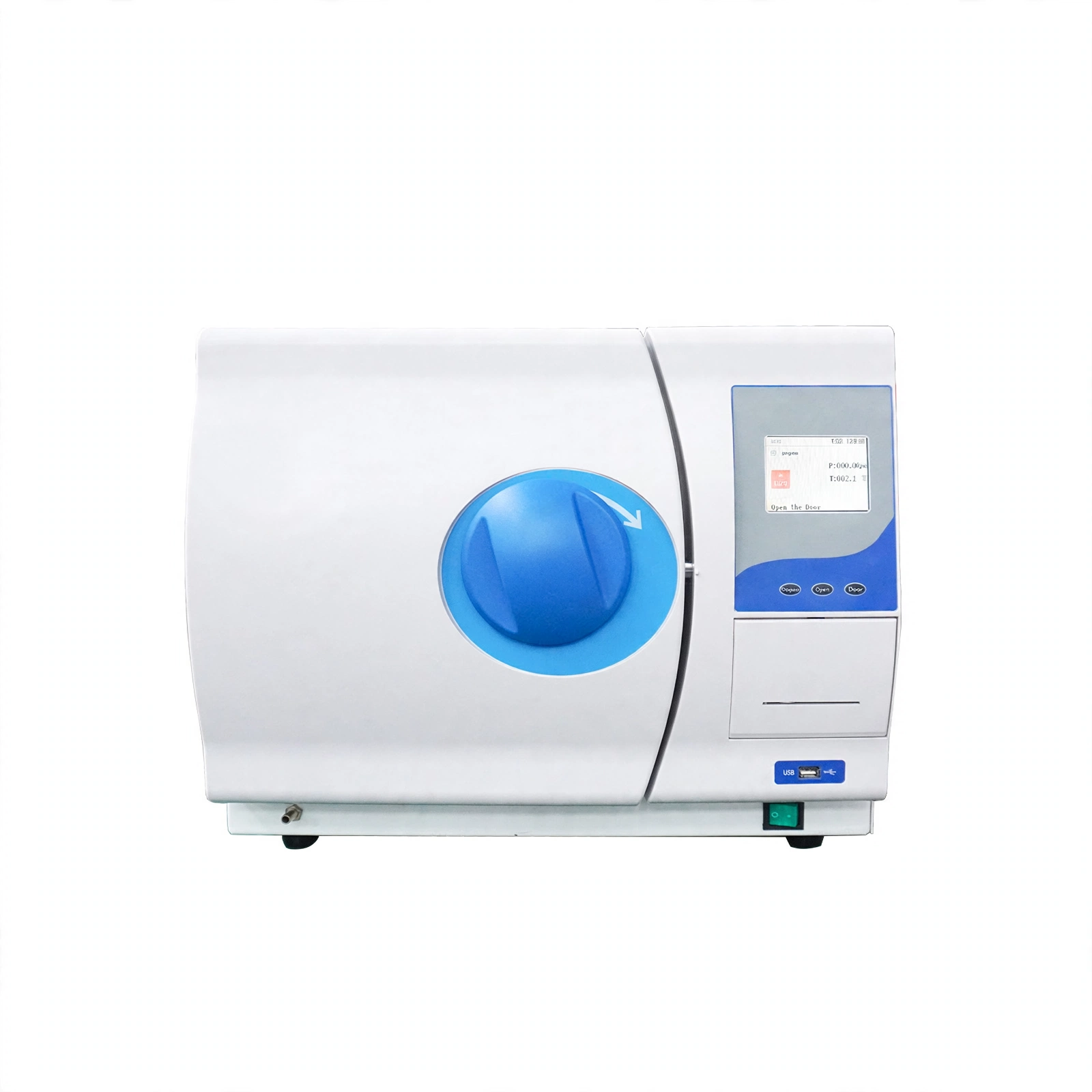

Table Top Autoclave Class N Series

Model BKM-K18N BKM-K23N Table-top

BKM-K18/23N sterilizer series is an N-level sterilizer. It discharges the cold air in the sterilization chamber by gravity displacement, saturates the internal steam, and reaches the set pressure and temperature. To achieve the purpose of sterilizing the items to be sterilized. Suitable for stomatology, ophthalmology, beauty, operating room and other places. It is suitable for sterilization of glassware, bare metal utensils, and unencapsulated solid instruments.

Capacity
18L / 23L
Power
1.6KW
Net weight
32kg / 36kg
Dimensions
650*495*410mm / 700*4…
A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Features:

1. High-quality material: the sterilization chamber is made of high-quality S30408 stainless steel electropolished.

2. Steam generation method: the main body is heated, no external steam source is required.

3. Operation interface: 3.5-inch capacitive color display screen is used to display pressure, temperature, time, alarm code and other information in real time, which is convenient for users to observe. When the sterilization cycle is over, a buzzer will sound.

4. Sterilization record: standard USB interface, optional printer, record program data.

5. New storage rack: increase the utilization space of the sterilization chamber, and the selection space for sterilization load is larger.

6. Control system: controlled by single chip microcomputer, automatic control of heating, sterilization and exhaust, without too much manual operation.

7. One-key start on the operation panel, using mechanical keys, the number of actions≥100,000 times.

8. Two sterilization procedures at 121°C and 134°C are selectable.

Safety Protection:

Over-temperature automatic protection, heating tube anti-dry protection, safety interlock device, double over-voltage protection, over-current leakage safety protection, door detection protection.

Technical Parameters:

Model BKM-K18N

BKM-K23N

Capacity 18L

23L

Door

Manual

Display

3.5-inch LCD

Max Designed Pressure

0.28Mpa

Working Pressure

0.23Mpa

Max Designed Temp.

150℃

Working Temp.

121/134℃

Temp. Precision

0.1℃

Chamber Material

S30408

Chamber Size

φ250*350mm

φ250*450mm
Altitude

≤2500m

Rack

1 rack with 3 trays

Standard Accessories

Aluminum tray, USB port

Optional Accessories

Stainless steel tray, printer

Consumption

1.6KW

Power Supply

AC220V, 50/60Hz(Standard)

AC110V, 50/60Hz(Optional)

External Size(W*D*H) 650*495*410mm

700*495*410mm

Net Weight

32kg

36kg
Package Size(W*D*H)

810*610*590mm

Gross Weight

47kg

50kg
The details

Specifications

Model
BKM-K18N / BKM-K23N
Capacity
18L / 23L
Door
Manual
Display
3.5-inch LCD
Max Designed Pressure
0.28Mpa
Working Pressure
0.23Mpa
Max Designed Temp.
150℃
Working Temp.
121/134℃
Temp. Precision
0.1℃
Chamber Material
S30408
Chamber Size
φ250*350mm / φ250*450mm
Altitude
≤2500m
Rack
1 rack with 3 trays
Standard Accessories
Aluminum tray, USB port
Optional Accessories
Stainless steel tray, printer
Consumption
1.6KW
Power Supply
AC220V, 50/60Hz(Standard)AC110V, 50/60Hz(Optional)
External Size(W*D*H)
650*495*410mm / 700*495*410mm
Net Weight
32kg / 36kg
Package Size(W*D*H)
810*610*590mm
Gross Weight
47kg / 50kg
