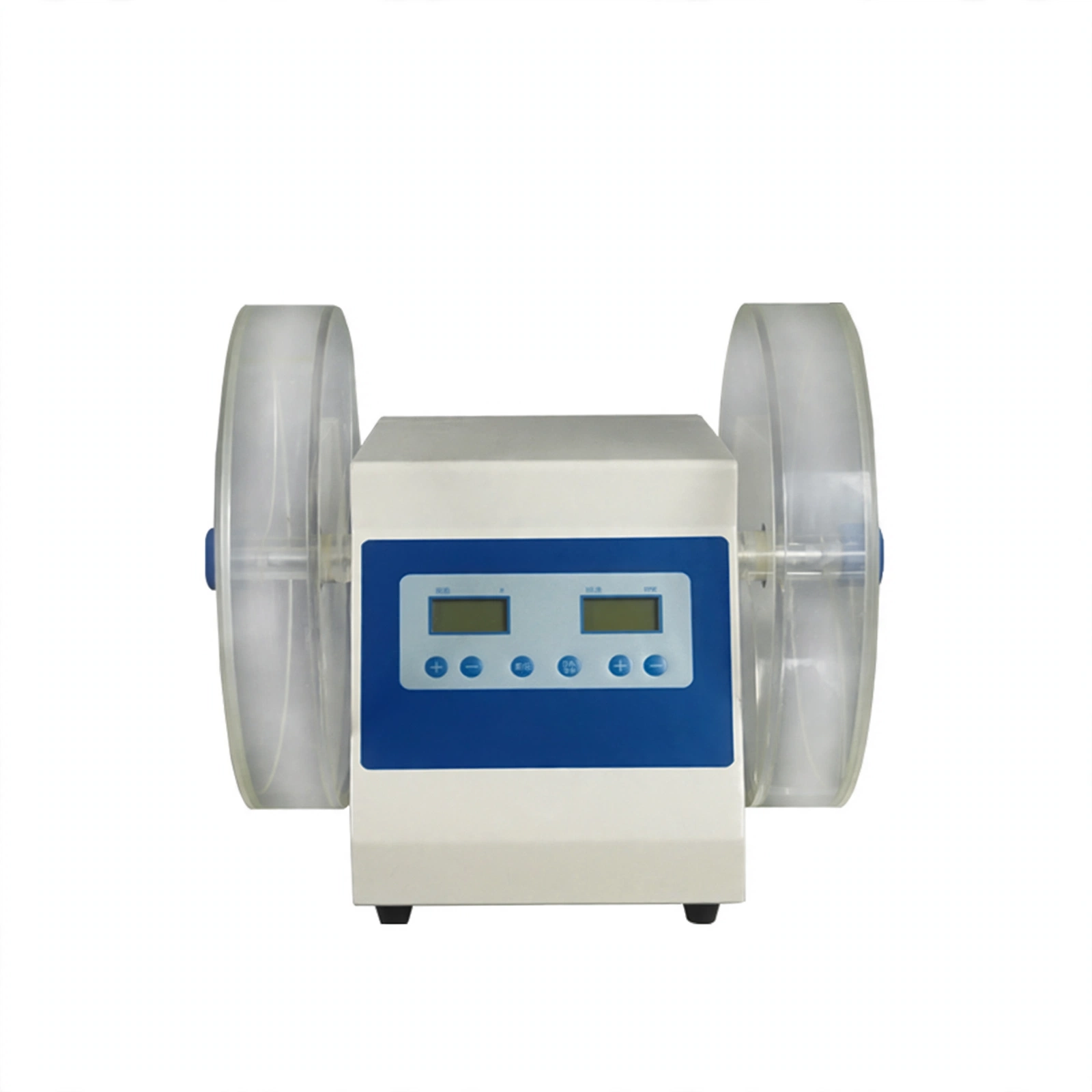

Tablet Friability Tester

Tablet Friability Tester

Model TFT-1 TFT-2 TFT-3 TFT-4

The Tablet Friability Tester is an essential quality control instrument used in the pharmaceutical industry to assess the durability of tablets by measuring their tendency to chip, crumble, or break under mechanical stress.

Max. speed
100 rpm
Power
40W / 20W / 50W / 50W
Dimensions
370*300*340 / 300*200…
A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Features:

1. Automation: auto-test, auto-diagnose, auto-alarm.

2. Intelligently control the rotating speed of cylinder and revolutions.

3. One cylinder runs synchronously. Auto stop at timing point.(only for TFT-4)

4. Single path and double cylinder, synchronous operation and automatic stop.

5. The revolution of the drum can be preset at any time, either preset or real data is displayed on the LCD.

6. Microprocessor unit is used to control all operations, high accuracy is achieved in testing rotary speed and circle number.

Technical Parameters:

Model TFT-1 TFT-2 TFT-3 TFT-4
Cylinder Number

2

 1
Cylinder Radius

Φ286
Cylinder Depth

39mm
Tablet Fall Height

156mm
Rotating Speed 20~100rpm

25 rpm
Rotation Count 5~900 turns 100 turns 5~900 turns 10-900 turns
Consumption 40W

20W

 50W
Power Supply

AC110 /220V±10%, 50/60Hz
External Size(W*D*H) mm

370*300*340

 300*200*340
Package Size(W*D*H) mm

450*410*535

 420*315*435
Gross Weight (kg) 13

12

 8
The details

Specifications

Model
TFT-1 / TFT-2 / TFT-3 / TFT-4
Cylinder Number
2 / 1 / 1 / 1
Cylinder Radius
Φ286
Cylinder Depth
39mm
Tablet Fall Height
156mm
Rotating Speed
20~100rpm / 25 rpm / 25 rpm / 25 rpm
Rotation Count
5~900 turns / 100 turns / 5~900 turns / 10-900 turns
Consumption
40W / 20W / 50W / 50W
Power Supply
AC110 /220V±10%, 50/60Hz
External Size(W*D*H) mm
370*300*340 / 300*200*340 / 300*200*340 / 300*200*340
Package Size(W*D*H) mm
450*410*535 / 420*315*435 / 420*315*435 / 420*315*435
Gross Weight (kg)
13 / 12 / 8 / 8
How ordering works

From enquiry to delivery

  1. 01Send your enquiry

    Request a quote on WhatsApp, or add several items to your enquiry list and send them together.

  2. 02Confirm the details

    We confirm configuration, voltage, accessories, availability and a delivered price.

  3. 03We source and ship

    We handle procurement, packing and international shipping to your facility.

Need a different configuration?

Tell us the application, capacity or budget. We will suggest the right model or source an alternative.
