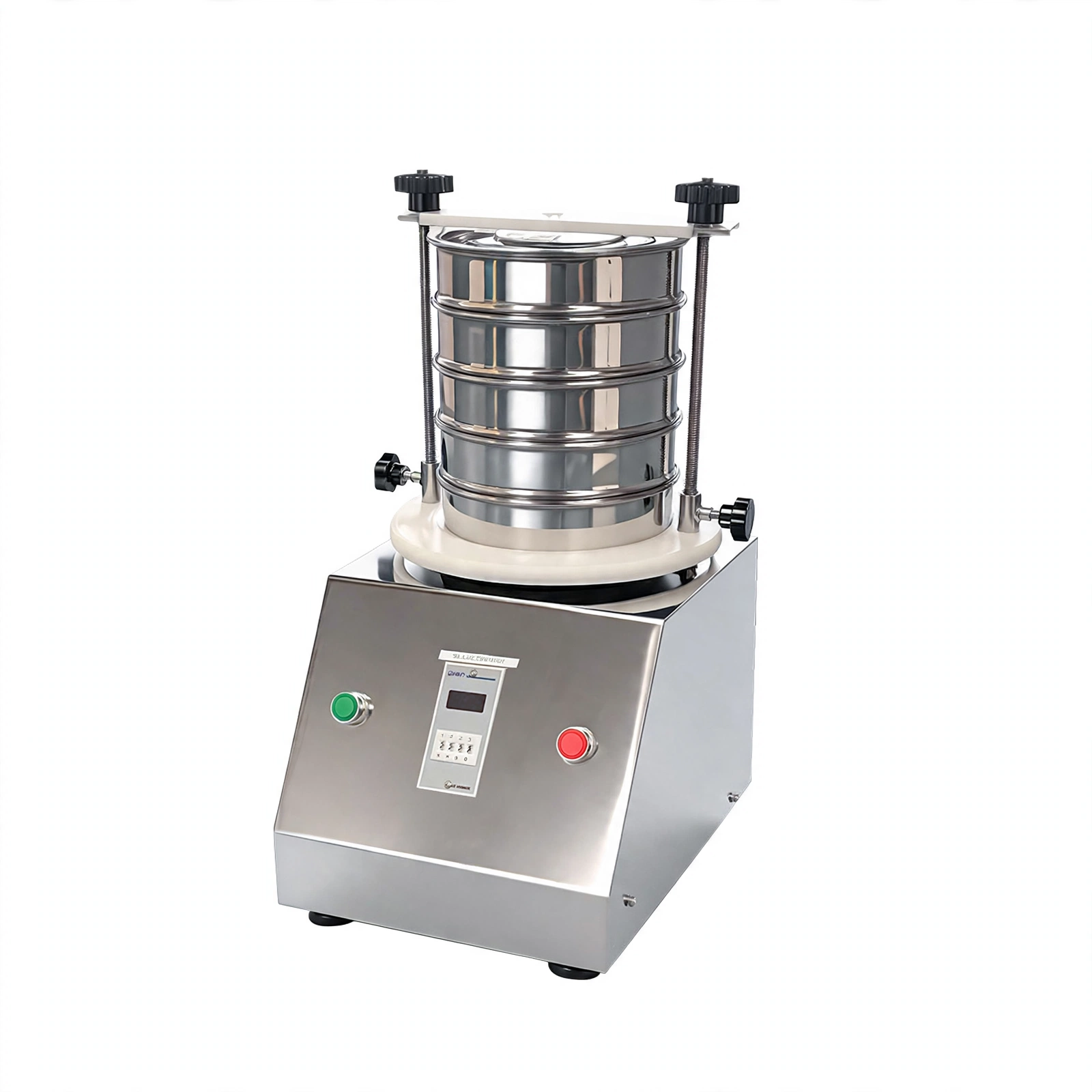

Application: BK-TS200X lab test sieve is suitable for particles distribution analysis. It is primarily used to determine particle size distribution for particles,power and liquid in laboratory and quality control department.
Ask about availability, configuration and delivery to your location. We reply personally.
Enquiry only. No payment is taken.Features:
1. Screen mesh size range: from 2 mesh to 2800 mesh.
2. Timing range: 0~99min59s, time can be set from seconds to hours freely.
3. Typically requires 50~150g of sample material.
Technical Parameters
| Model | BK-TS200 | BK-TS200X | BK-TS300 |
| Working Layer |
1~7 layers(Including lid and base) |
||
| Screen Mesh Size | 0.003~12.5mm | ||
| Diameter |
200mm |
300mm | |
| Material |
Stainless steel 304 |
||
| Timing Range |
0~99min59s |
||
| Speed |
1440r/min |
||
| Noise |
＜50dB |
||
| Power Consumption | 120W |
180W |
|
| Power Supply |
AC 220V, 50Hz(Standard); 220V, 60Hz; 110V, 60Hz(Optional) |
||
| Standard Accessory |
Lid and base(Except BK-TS300) |
||
| External Size(W*D*H) | 400*300*370mm | 400*340*340mm | 470*380*370mm |
| Package Size(W*D*H) | 460*380*470mm | 490*420*590mm | 560*480*490mm |
| Net Weight | 30kg | 30kg | 40kg |
| Gross Weight | 35kg | 40kg | 42kg |
Screen Mesh:
| Number of Mesh | Aperture(mm) | Number of Mesh | Aperture(mm) | Number of Mesh | Aperture(mm) |
| 2 | 12.5 | 45 | 0.4 | 220 | 0.065 |
| 3 | 8 | 50 | 0.355 | 240 | 0.063 |
| 4 | 6 | 55 | 0.315 | 250 | 0.061 |
| 5 | 5 | 60 | 0.28 | 280 | 0.055 |
| 6 | 4 | 65 | 0.25 | 300 | 0.050 |
| 8 | 3 | 70 | 0.224 | 320 | 0.045 |
| 10 | 2 | 75 | 0.2 | 325 | 0.043 |
| 12 | 1.6 | 80 | 0.18 | 340 | 0.041 |
| 14 | 1.43 | 90 | 0.16 | 360 | 0.040 |
| 16 | 1.25 | 100 | 0.154 | 400 | 0.0385 |
| 18 | 1 | 110 | 0.15 | 500 | 0.0308 |
| 20 | 0.9 | 120 | 0.125 | 600 | 0.026 |
| 24 | 0.8 | 130 | 0.112 | 800 | 0.022 |
| 26 | 0.71 | 140 | 0.105 | 900 | 0.020 |
| 28 | 0.68 | 150 | 0.100 | 1000 | 0.015 |
| 30 | 0.6 | 160 | 0.096 | 1800 | 0.010 |
| 32 | 0.58 | 180 | 0.09 | 2000 | 0.008 |
| 35 | 0.50 | 190 | 0.08 | 2300 | 0.005 |
| 40 | 0.45 | 200 | 0.074 | 2800 | 0.003 |
Request a quote on WhatsApp, or add several items to your enquiry list and send them together.
We confirm configuration, voltage, accessories, availability and a delivered price.
We handle procurement, packing and international shipping to your facility.

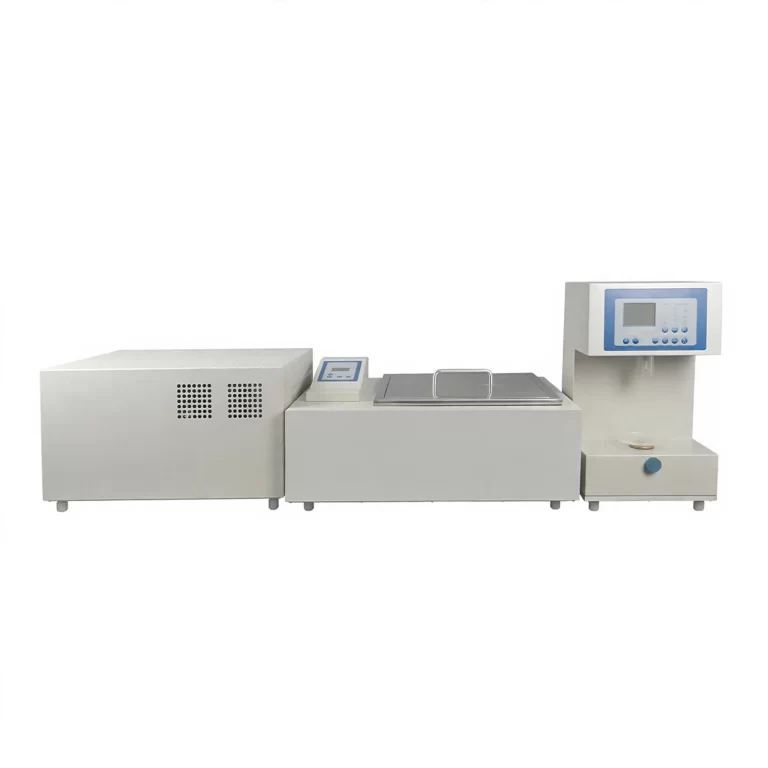

Gel strength test system is mainly used to measure the gel strength of gelatin under the stipulated environment. It consists of: 1. Gel Strength Tester; 2. Constant Temperature Bath; 3. Refrigerator.
