Disintegration Tester

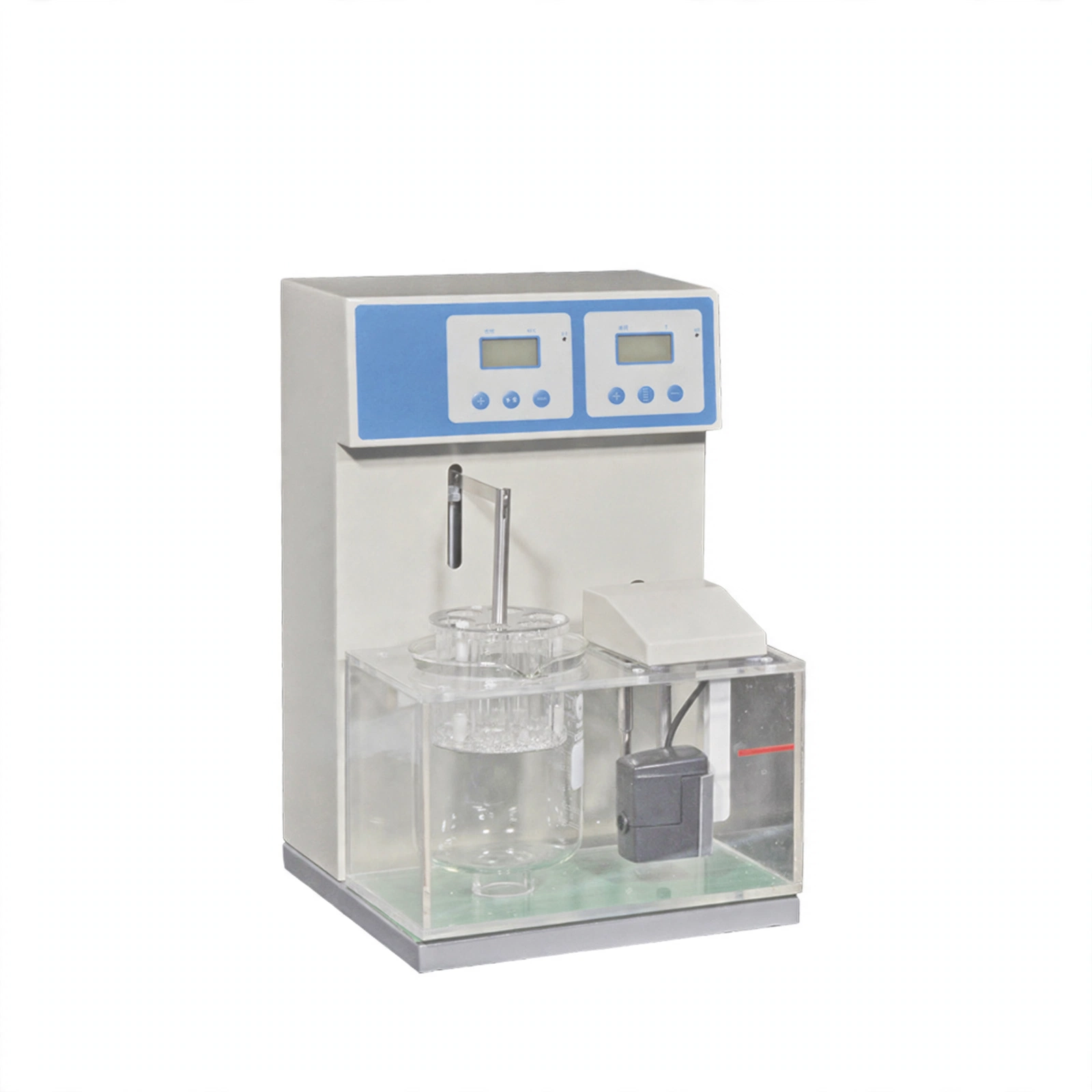

Disintegration Tester BJ Series

Model BK-BJ1 BK-BJ2 BK-BJ3 BK-BJ4 Refrigerated

Disintegration tester is used for detecting disintegration of solids under prescriptive conditions.

Temperature
RT~50°C
Power
600W
Dimensions
260*300*440 / 400*320…
A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Features:

1. Auto-diagnose, auto-alarm.

2. Stainless steel basket and paddle.

3. Micro processor and LCD display.

4. Each beaker can work alone.(except BK-J4)

5. Water circulating in the bath to keep the temperature conformity with magnetic pump.

Technical Parameters:

Model BK-BJ1 BK-BJ2 BK-BJ3 BK-BJ4
Basket 1pc 2pcs 3pcs 4pcs
Beaker Capacity

1000ml
Basket Lifting Frequency

30~31 times/min
Stroke Height

55±1mm
Minimum Spacing

25±2mm
Mesh Size

Standard 2mm
Temp. Range

RT~50°C
Temp. Precision

±0.3°C
Timing Range

1~900min
Time Precision

±0.5min
Working Time

>24h
Power Consumption

600W
Power Supply

AC220V/110V±10%, 50/60Hz
External Size(W*D*H)mm 260*300*440 400*320*440 540*320*440 600*320*440
Package Size(W*D*H)mm 360*400*535 510*410*535 640*400*535 700*400*535
Gross Weight(kg) 12 18.5 23 28
The details

Specifications

Model
BK-BJ1 / BK-BJ2 / BK-BJ3 / BK-BJ4
Basket
1pc / 2pcs / 3pcs / 4pcs
Beaker Capacity
1000ml
Basket Lifting Frequency
30~31 times/min
Stroke Height
55±1mm
Minimum Spacing
25±2mm
Mesh Size
Standard 2mm
Temp. Range
RT~50°C
Temp. Precision
±0.3°C
Timing Range
1~900min
Time Precision
±0.5min
Working Time
>24h
Power Consumption
600W
Power Supply
AC220V/110V±10%, 50/60Hz
External Size(W*D*H)mm
260*300*440 / 400*320*440 / 540*320*440 / 600*320*440
Package Size(W*D*H)mm
360*400*535 / 510*410*535 / 640*400*535 / 700*400*535
Gross Weight(kg)
12 / 18.5 / 23 / 28
