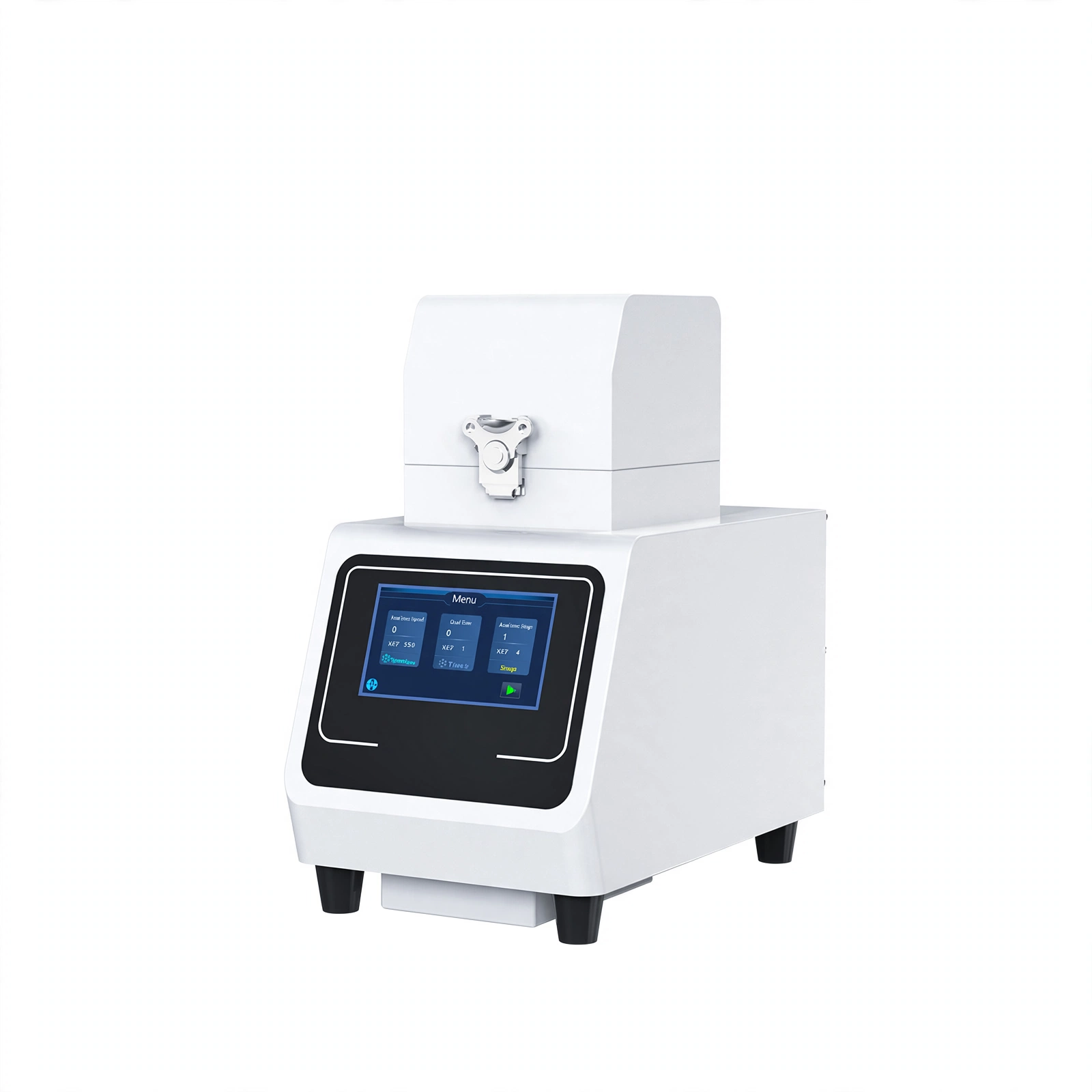

Tissue Grinding Machine

Model BHY2

Tissue Grinding Machine can extract and purify original DNA, RNA, and proteins from any source, including soil, plant and animal tissues/organs, bacteria, yeast, fungi, spores, paleontological specimens, etc. It completes the grinding, crushing, mixing, and cell wall disruption of samples in a very short time.

Power
180W
Net weight
29kg
Dimensions
265*405*520mm
A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Features:

1. In standard mode, BHY2 can process up to 24 samples in as little as 1 minute.

2. The grinding process is fully enclosed, with samples moving independently to avoid cross-contamination.

3. BHY2 has been upgraded to a dual-slide vertical oscillation mechanism, providing more thorough grinding, better stability, and a longer lifespan.

4. Supports placing centrifuge tubes directly into the adaptor, supports pre-freezing of centrifuge tubes.

5. Adopt for quiet operation to reduce interference with the surrounding environment.

Applicable Samples:

1. Animal tissues: brain, heart, lungs, stomach, liver, thymus, kidneys, intestines, lymph nodes, muscles, bones, hair, etc.

2. Volatile samples: coal, oil shale, wax products, etc.

3. Plant tissues: roots, stems, leaves, flowers, fruits, seeds, etc.

4. Microorganisms: yeast, E. coli, etc.

5. Food and pharmaceuticals: various foods, tablets, etc.

6. Plastics, polymers: PE, PS, textiles, resins, etc.

7. Environmental samples: soil, sediment, sludge, feces, etc.

Technical Parameters:

Model BHY2
Display 7-inch OLED touch screen
Oscillation Mode Up and down vertical oscillation
Grinding Speed 500~2300rpm
Grinding Way Dry grinding/wet grinding/low temperature grinding
Grinding Time Each segment 0~120s, can be set in multiple segments
Programming Multi-stage operation setup is available, automatically records the parameters of the last operation
Safety Lock Mechanical butterfly safety lock + door-controlled electronic operation limit
Adaptor Aluminum alloy material
Standard: 24*2ml
Optional(Can customize): 96*2ml/48*2ml/32*2ml/16*5ml/8*10ml/2*15ml/2*25ml/2*50ml
Not suitable for low temperature grinding:96*2ml/48*2ml
Grinding Ball Standard stainless steel grinding ball: φ3mm*800 and φ5mm*200
Consumption 180W
Power Supply AC110~220V,50/60Hz
External Size(W*D*H) 265*405*520mm
Package Size(W*D*H) 375*530*670mm
Net Weight 29kg
Gross Weight 41kg


Note: 1.Low temperature grinding means that the some adapter can be placed in a low temperature refrigerator or liquid nitrogen container to take out and then use, rather than the instrument with its own freezing function.

2.If you purchase 2*50ml adapters, a set of grinding balls will be included as standard: φ8mm*40, φ10mm*40, φ12mm*20 and φ14mm*20.

The details

Specifications

Model
BHY2
Display
7-inch OLED touch screen
Oscillation Mode
Up and down vertical oscillation
Grinding Speed
500~2300rpm
Grinding Way
Dry grinding/wet grinding/low temperature grinding
Grinding Time
Each segment 0~120s, can be set in multiple segments
Programming
Multi-stage operation setup is available, automatically records the parameters of the last operation
Safety Lock
Mechanical butterfly safety lock + door-controlled electronic operation limit
Adaptor
Aluminum alloy material
Adaptor
Standard: 24*2ml
Adaptor
Optional(Can customize): 96*2ml/48*2ml/32*2ml/16*5ml/8*10ml/2*15ml/2*25ml/2*50ml
Adaptor
Not suitable for low temperature grinding:96*2ml/48*2ml
Grinding Ball
Standard stainless steel grinding ball: φ3mm*800 and φ5mm*200
Consumption
180W
Power Supply
AC110~220V,50/60Hz
External Size(W*D*H)
265*405*520mm
Package Size(W*D*H)
375*530*670mm
Net Weight
29kg
Gross Weight
41kg
