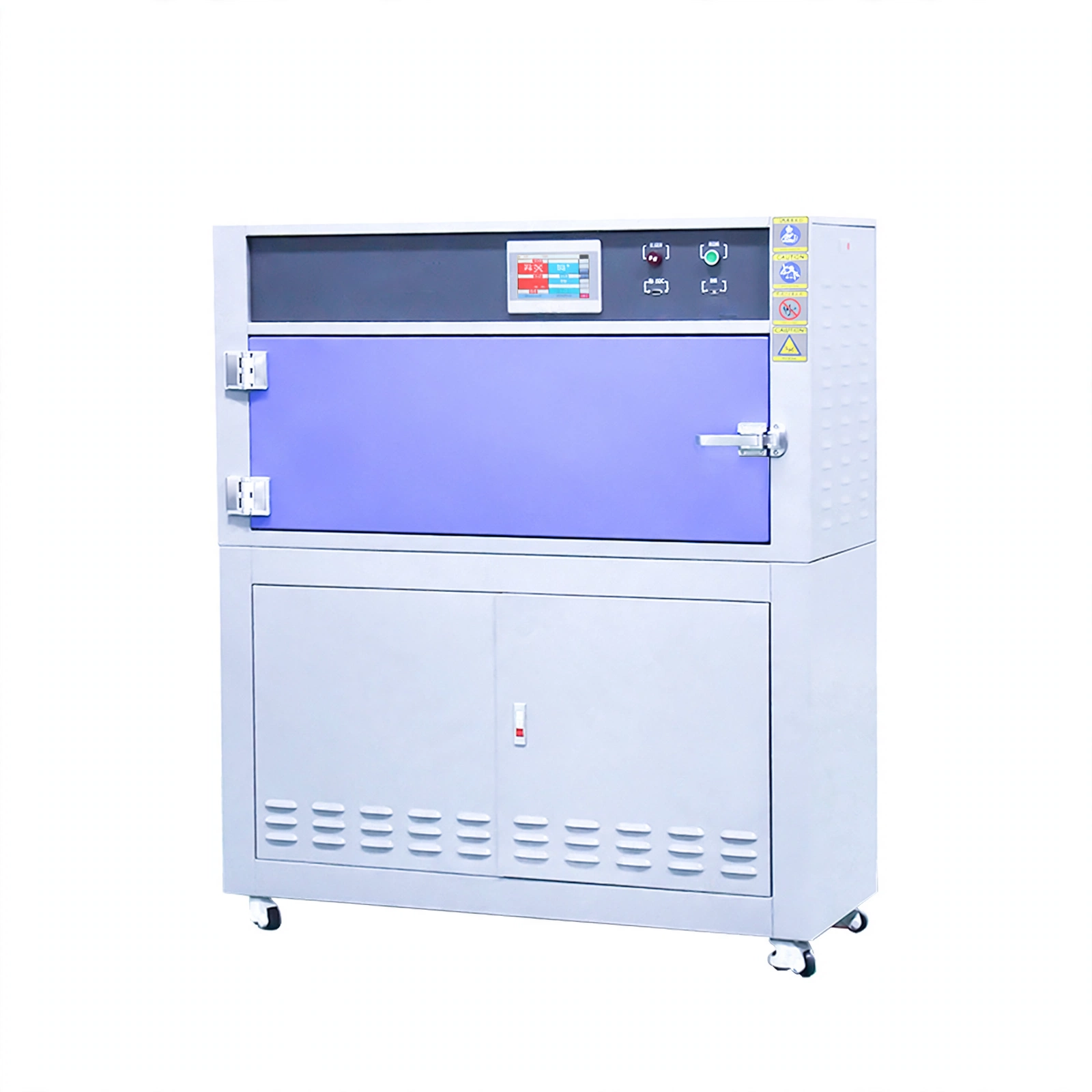

Simulate the harm caused by sunlight, UV aging test chamber used fluorescent ultraviolet lamps to simulate the effect of sunlight exposure. The tested material is placed in the light at a certain temperature for testing, Hazards that occur outdoor for months or years can be recreated in days or weeks. Types of hazards include: color fading, discoloration, loss of light, power light, cracking, peeling, turbidity, bubbles,brittle,reduced strength,decay and oxidation. It’s widely used in coating ink pain, resin, plastic, printing packaging, adhesives, automotive and motorcycle industry, cosmetics, metals, electronics and electroplating.
Ask about availability, configuration and delivery to your location. We reply personally.
Enquiry only. No payment is taken.Features:
1. Select imported brand of UVA and UVB lamps.
2. Good lighting, faster testing, long lifetime, good durable usage.
3. Equipped with a irradiatometer made in Beijing Normal University, with feedback signal and collect testing information from inner chamber.
4. Ensure simulation condition meet test condition in chamber by controller.
5. Prevent the lamp tube in the chamber from falling to reach the test conditions, resulting in no effect of the test.
Technical Parameters:
| Model | BJPX-UATC1 | BJPX-UATC2 | BJPX-UATC3 |
| Function | Lighting | Lighting+condensation | Lighting+condensation+raining |
| Lighting Temp. Range |
50~70℃(Temp. deviation: ±3℃) |
||
| Condensation |
40~60℃(Temp. deviation: ±3℃) |
||
| Blackboard Temp. Range |
30~80℃(Temp. deviation: ±1℃) |
||
| Center Distance of Light |
70mm |
||
| Distance |
50mm(The closest parallel distance between the specimen and the lamp surface) |
||
| Wavelength Range |
UVA-340: 315~400nm UVB-313: 280~320nm |
||
| Max. Radiation Intensity |
Within 1.2W/m2/340nm adjustable |
||
| Indication Resolution |
0.1℃ |
||
| Tank |
Water depth ≤25mm, with automatically feed water controller |
||
| Lamp Life |
About 1800~2500h(Depends on actual usage time) |
||
| Power Supply |
AC380V, 50/60Hz; 220V, 50/60Hz; 110V, 50/60Hz(Standard) |
||
| Inner Size(W*D*H) |
1130*500*400mm |
||
| External Size(W*D*H) |
1300*700*1700mm |
||
| Package Size(W*D*H) |
1600*1000*2000mm |
||
| Net Weight |
150kg |
||
| Gross Weight |
170kg |
||
Request a quote on WhatsApp, or add several items to your enquiry list and send them together.
We confirm configuration, voltage, accessories, availability and a delivered price.
We handle procurement, packing and international shipping to your facility.
