Vertical Autoclave

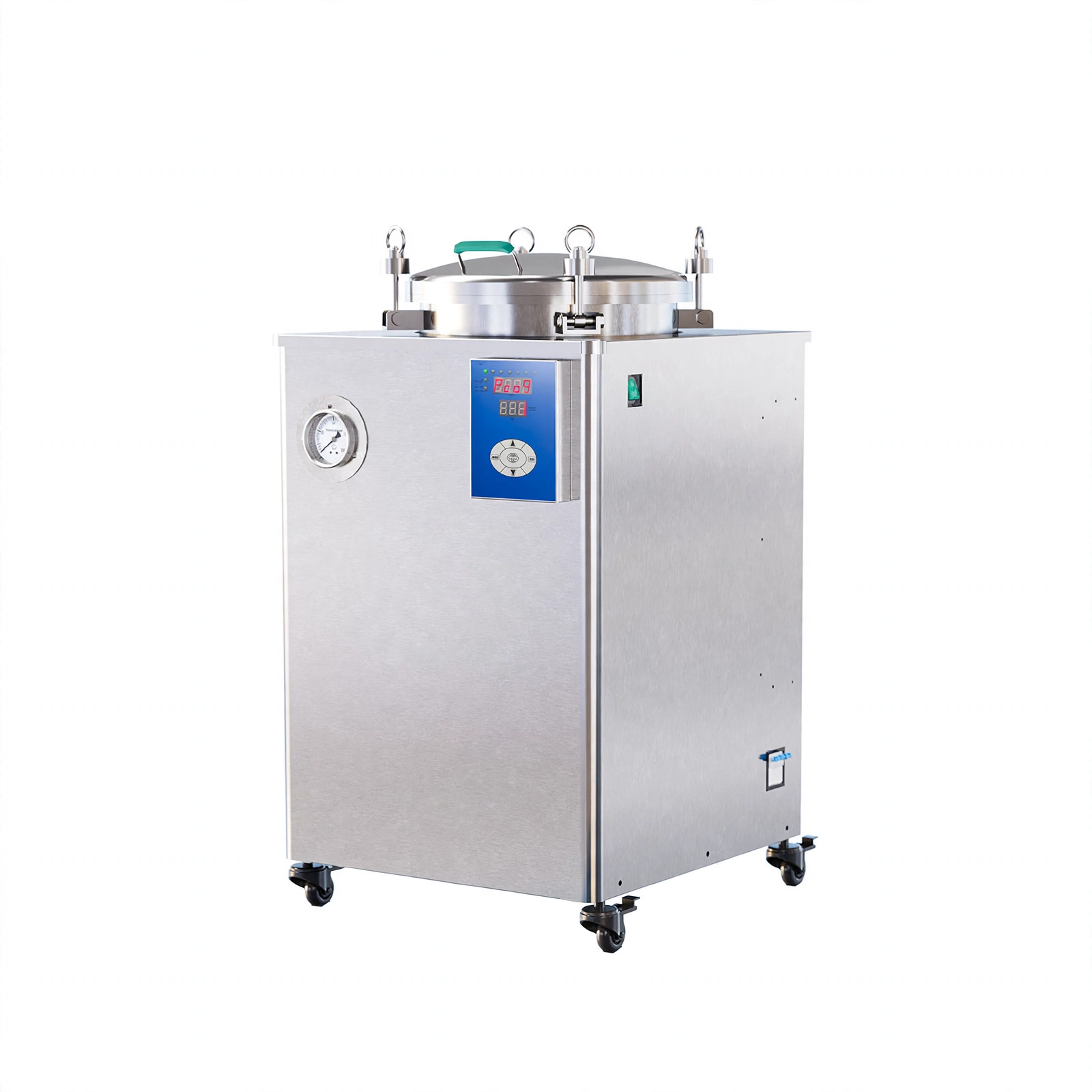

Vertical Autoclave 50L

Model BKQ-Z50E BKQ-B50E

Application: It is widely used in laboratories, inspection departments, food processing enterprises, etc for sterilization of equipment and medical waste. it uses gravity displacement to discharge the cold air in the sterilization chamber to ensure the sterilization effect. It is mainly applicable to the sterilization of solid surgical instruments, rubber products, dressings and cotton masks with packaging or without packaging.

Capacity
50L
Power
3.1KW
Noise
≤65dB
Net weight
49kg / 61kg
Dimensions
525*475*890mm / 525*4…
A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Features:
1. High-quality materials: The sterilization chamber is made of high-quality S30408 stainless steel with electrolytic polishing, which is not prone to corrosion and rust. The pot wall is covered with insulating cotton.

2. Operation interface: It uses an LED digital tube display, which can display real-time information such as the operating status of the equipment during operation, the temperature inside the chamber, and alarm codes, facilitating users’ observation.

3. Diverse programs:

BKQ-Z50E: Solid bare instrument program(126°C), packaged instrument program(126°C), rubber program(121°C), fabric program(126°C), liquid program(121°C), custom program 1(105~126°C), custom program 2(105~126°C), select the appropriate program and temperature according to the items to be sterilized.

BKQ-B50E: Solid bare instrument program(134°C), packaged instrument program(134°C), rubber program(121°C), fabric program(134°C), liquid program(121°C), custom program 1(105~136°C), custom program 2(105~136°C), select the appropriate program and temperature according to the items to be sterilized.

4. Safetyprotection: Automatic over-temperature protection function for the equipment, over-pressure protection, over-current device.

Technical Parameters:

Model BKQ-Z50E BKQ-B50E
Capacity

50L

Designed Pressure 0.2MPa 0.28MPa
Working Pressure 0.16MPa 0.23MPa
Designed Temp. 126℃ 121/134℃
Temp. Precision

0.1℃

Chamber Material

S30408

Chamber Size φ319*610mm φ316*640mm
Basket/ Bucket

φ300*250, 2pcs

Noise

≤65dB

Altitude

≤2700m

Standard Accessory

Mesh bottom basket

Optional Accessories

Printer, bucket, tray

Consumption

3.1KW

Power Supply

AC220V, 50/60Hz(Standard); AC110V, 50/60Hz(Optional)

External Size(W*D*H) 525*475*890mm 525*475*960mm
Net Weight 49kg 61kg
Package Size(W*D*H) 635*550*1020mm 635*550*1090mm
Gross Weight 60kg 72kg
The details

Specifications

Model
BKQ-Z50E / BKQ-B50E
Capacity
50L
Designed Pressure
0.2MPa / 0.28MPa
Working Pressure
0.16MPa / 0.23MPa
Designed Temp.
126℃ / 121/134℃
Temp. Precision
0.1℃
Chamber Material
S30408
Chamber Size
φ319*610mm / φ316*640mm
Basket/ Bucket
φ300*250, 2pcs
Noise
≤65dB
Altitude
≤2700m
Standard Accessory
Mesh bottom basket
Optional Accessories
Printer, bucket, tray
Consumption
3.1KW
Power Supply
AC220V, 50/60Hz(Standard); AC110V, 50/60Hz(Optional)
External Size(W*D*H)
525*475*890mm / 525*475*960mm
Net Weight
49kg / 61kg
Package Size(W*D*H)
635*550*1020mm / 635*550*1090mm
Gross Weight
60kg / 72kg
