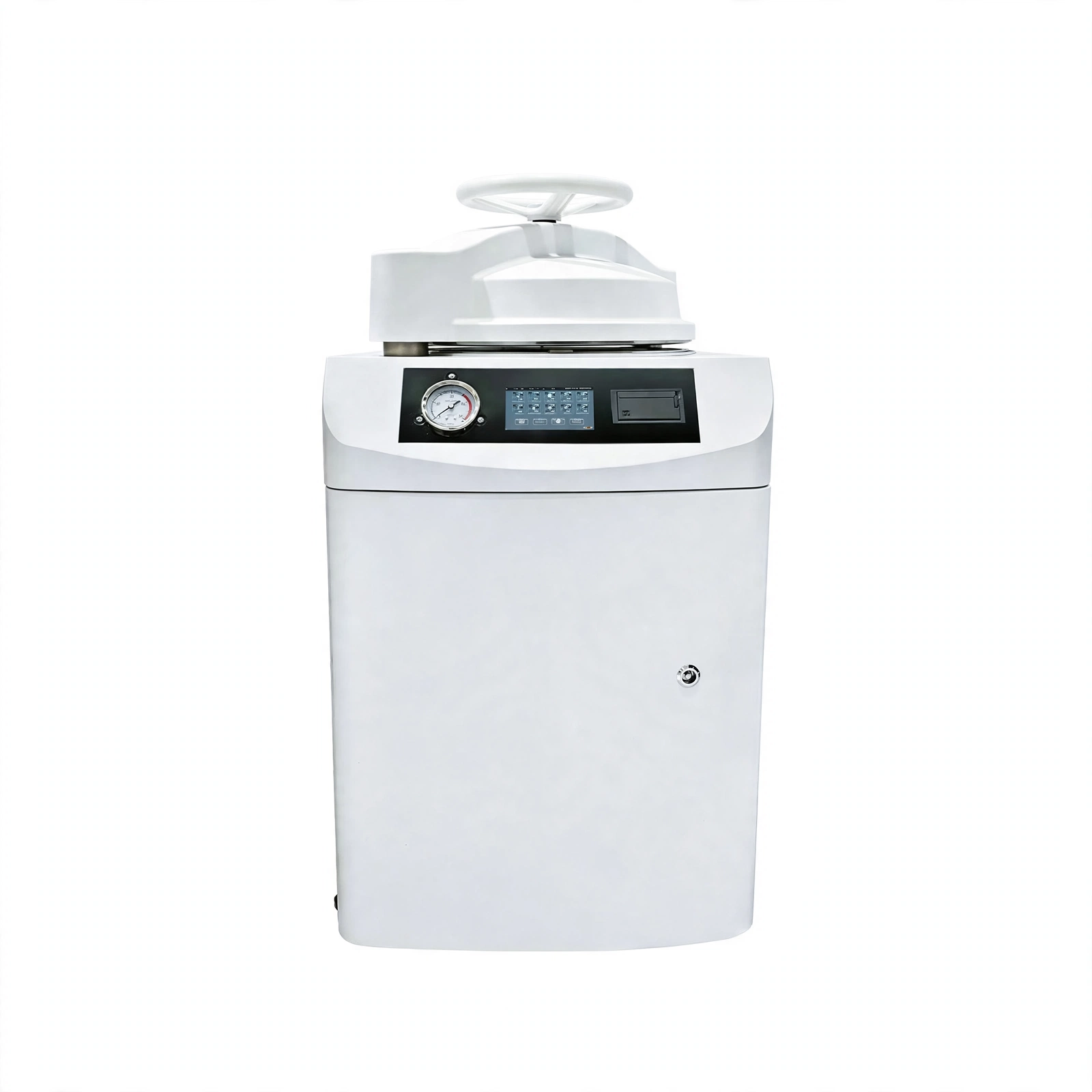

Vertical Autoclave

Vertical Autoclave

Model BKQ-L60 BKQ-L80 BKQ-L100 BKQ-L120

The Vertical Autoclave is a high-pressure steam sterilizer designed for laboratories and medical facilities. It features diverse built-in programs for liquids, media, rubber, and custom sterilization, with a delayed start function for automated operation. Dual temperature sensors and comprehensive safety protections — including double over-pressure, over-temperature, and dry-burning prevention — ensure safe, reliable sterilization performance.

Capacity
60L / 80L / 100L / 12…
Power
4.4KW / 4.7KW / 5.2KW…
Noise
≤65dB
Net weight
87kg / 93kg / 103kg /…
Dimensions
505*750*870mm / 505*7…
A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Features：

1. Diverse programs: exposed program, packaged program, rubber program, dressing program, liquid programs, medium sterilization programs, medium dissolution programs, solid customization and liquid customization.

2. Delayed start function, can operate automatically according to the set time.

3. With fixed temperature sensors and mobile temperature sensors for dual temperature control.

4. Safety device: dual safety interlock device for electronics and mechanics, dual protection device against dry burning, dual over-pressure protection device for electronics and mechanics, over-temperature protection device, over-current protection device and door detection device.

Technical Parameters:

Model BKQ-L60 BKQ-L80 BKQ-L100 BKQ-L120
Capacity 60L 80L 100L 120L
Designed Pressure

0.32Mpa
Working Pressure

0.23Mpa
Designed Temp.

150℃
Working Temp.

40~138℃
Temp. Precision

±0.1℃
Chamber Material

304 stainless steel
Chamber Size Φ386*517mm Φ386*697mm Φ386*877mm Φ386*1057mm
Basket Φ365*360mm, 1pc Φ365*265mm, 2pcs Φ365*360mm, 2pcs Φ365*265mm, 1pc；
Φ365*265mm, 2pcs
Noise

≤65dB
Altitude

≤3000m
Standard Accessories

Basket, printer, USB, mobile temperature sensor
Optional Accessory

Bucket
Consumption 4.4KW 4.7KW

5.2KW
Power Supply

AC220V, 50/60Hz(Standard);
AC110V, 50/60Hz(Optional)
Wiring method: air switch
External Size(W*D*H) 505*750*870mm 505*750*1050mm 505*750*1230mm 505*750*1430mm
Net Weight 87kg 93kg 103kg 110kg
Package Size(W*D*H) 620*850*1070mm 620*850*1250mm 620*850*1430mm 620*850*1610mm
Gross Weight 103kg 111kg 121kg 131kg
The details

Specifications

Model
BKQ-L60 / BKQ-L80 / BKQ-L100 / BKQ-L120
Capacity
60L / 80L / 100L / 120L
Designed Pressure
0.32Mpa
Working Pressure
0.23Mpa
Designed Temp.
150℃
Working Temp.
40~138℃
Temp. Precision
±0.1℃
Chamber Material
304 stainless steel
Chamber Size
Φ386*517mm / Φ386*697mm / Φ386*877mm / Φ386*1057mm
Basket
Φ365*360mm, 1pc / Φ365*265mm, 2pcs / Φ365*360mm, 2pcs / Φ365*265mm, 1pc；Φ365*265mm, 2pcs
Noise
≤65dB
Altitude
≤3000m
Standard Accessories
Basket, printer, USB, mobile temperature sensor
Optional Accessory
Bucket
Consumption
4.4KW / 4.7KW / 5.2KW / 5.2KW
Power Supply
AC220V, 50/60Hz(Standard);AC110V, 50/60Hz(Optional)Wiring method: air switch
External Size(W*D*H)
505*750*870mm / 505*750*1050mm / 505*750*1230mm / 505*750*1430mm
Net Weight
87kg / 93kg / 103kg / 110kg
Package Size(W*D*H)
620*850*1070mm / 620*850*1250mm / 620*850*1430mm / 620*850*1610mm
Gross Weight
103kg / 111kg / 121kg / 131kg
