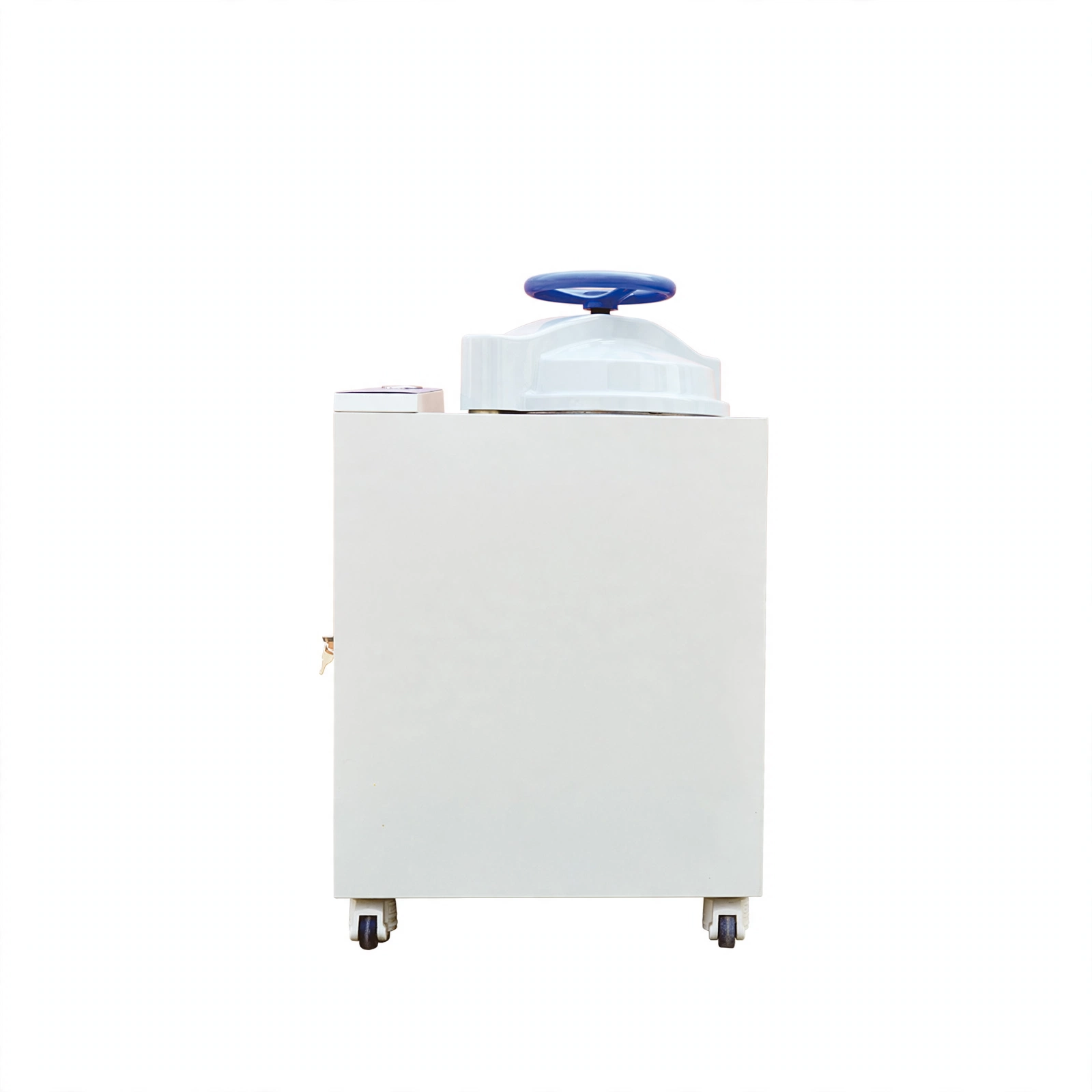

Vertical Autoclave

Vertical Autoclave BKQ-B50II

Model BKQ-B50II, BKQ-B75II, BKQ-B100II, BKQ-B120II, BKQ-B150II, BKQ-B200II

It is widely used in laboratories, inspection departments, food processing enterprises, etc. for sterilization of equipment and medical waste. It uses gravity displacement to discharge the cold air in the sterilization chamber to ensure the sterilization effect.

Capacity
50L / 75L / 100L / 12…
Power
4.4KW / 4.7KW / 5.2KW…
Noise
≤65dB
Net weight
87kg / 95kg / 105kg /…
Dimensions
640*550*980mm / 640*5…
A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Features:

1. The hand wheel slides to open the door, which is fast and labor-saving.

2. Casters facilitate the movement of the equipment.

3. It has a fast maintenance window, and the electrical part does not need to remove the cover for maintenance.

4. Steam generation method: heating inside the main body, no external steam source is required.

5. Self-expanding silicone sealing ring has good sealing effect and long service life.  It is molded with transparent medical silicone.

6. Real-time detection and display of the temperature in the sterilization chamber, with a display accuracy of 0.1℃.

7. The LED digital tube displays temperature, time, alarm code and the indicator light shows the current operating status.

8. Using gravity displacement and positive pressure pulsating exhaust method to discharge the cold air in the load and sterilization room.

9. Optional printer to record the temperature during sterilization.

10. Inner water tank: Standard for BKQ-B50/75/100/120II; Optional for BKQ-B150/200(II).

11. A variety of programs

There are exposed program, packaging program, rubber program, dressing program, liquid program, liquid customization, solid customization.

Technical Parameters:

Model BKQ-B50II BKQ-B75II BKQ-B100II

BKQ-B120II

 BKQ-B150(II) BKQ-B200(II)
Capacity 50L 75L 100L

120L

 150L 200L
Designed Pressure

0.28MPa

0.3MPa
Working Pressure

0.23MPa

0.217MPa
Designed Temp.

150℃

137℃
Working Temp.

105~136℃

50~134℃
Temp. Precision

0.1℃
Chamber Material

S30408
Chamber Size φ386*514mm φ386*695mm φ386*875mm

φ386*1055mm

 φ500*760mm φ500*1000mm
Basket/ Mesh Bottom Basket/ Bucket φ365*360mm, 1pc φ365*265mm, 2pcs φ365*360mm, 2pcs

φ365*360mm, 1pc

φ365*265mm

, 2pcs

 φ470*230mm, 3pcs φ470*230mm

, 4pcs
Noise

≤65dB
Altitude

≤2700m
Standard Accessory

Basket

Basket
Optional Accessories

Printer, mesh bottom basket, bucket

Printer
Consumption 4.4KW 4.7KW

5.2KW

 5.2KW

6KW
Power Supply

AC220V, 50/60Hz（Standard）；AC110V, 50/60Hz（Optional);Wiring method:Air switch

AC380V,50/60Hz（Standard）；AC220V,50/60Hz（Optional）

Wiring method：Air switch
External Size(W*D*H) 640*550*980mm 640*550*1080mm 640*550*1280mm

640*550*1380mm

 630*700*1400mm 630*700*1600mm
Net Weight 87kg 95kg 105kg

122kg

 162kg 180kg
Package Size(W*D*H) 750*745*1100mm 750*745*1240mm 750*745*1450mm

750*745*1540mm

 760*800*1530mm 760*800*1720mm
Gross Weight 104kg 114kg 127kg

142kg

 213kg 238kg
The details

Specifications

Model
BKQ-B50II / BKQ-B75II / BKQ-B100II / BKQ-B120II / BKQ-B150(II) / BKQ-B200(II)
Capacity
50L / 75L / 100L / 120L / 150L / 200L
Designed Pressure
0.28MPa / 0.3MPa / 0.3MPa / 0.3MPa / 0.3MPa / 0.3MPa
Working Pressure
0.23MPa / 0.217MPa / 0.217MPa / 0.217MPa / 0.217MPa / 0.217MPa
Designed Temp.
150℃ / 137℃ / 137℃ / 137℃ / 137℃ / 137℃
Working Temp.
105~136℃ / 50~134℃ / 50~134℃ / 50~134℃ / 50~134℃ / 50~134℃
Temp. Precision
0.1℃
Chamber Material
S30408
Chamber Size
φ386*514mm / φ386*695mm / φ386*875mm / φ386*1055mm / φ500*760mm / φ500*1000mm
Basket/ Mesh Bottom Basket/ Bucket
φ365*360mm, 1pc / φ365*265mm, 2pcs / φ365*360mm, 2pcs / φ365*360mm, 1pcφ365*265mm, 2pcs / φ470*230mm, 3pcs / φ470*230mm, 4pcs
Noise
≤65dB
Altitude
≤2700m
Standard Accessory
Basket
Optional Accessories
Printer, mesh bottom basket, bucket / Printer / Printer / Printer / Printer / Printer
Consumption
4.4KW / 4.7KW / 5.2KW / 5.2KW / 6KW / 6KW
Power Supply
AC220V, 50/60Hz（Standard）；AC110V, 50/60Hz（Optional);Wiring method:Air switch / AC380V,50/60Hz（Standard）；AC220V,50/60Hz（Optional）Wiring method：Air switch / AC380V,50/60Hz（Standard）；AC220V,50/60Hz（Optional）Wiring method：Air switch / AC380V,50/60Hz（Standard）；AC220V,50/60Hz（Optional）Wiring method：Air switch / AC380V,50/60Hz（Standard）；AC220V,50/60Hz（Optional）Wiring method：Air switch / AC380V,50/60Hz（Standard）；AC220V,50/60Hz（Optional）Wiring method：Air switch
External Size(W*D*H)
640*550*980mm / 640*550*1080mm / 640*550*1280mm / 640*550*1380mm / 630*700*1400mm / 630*700*1600mm
Net Weight
87kg / 95kg / 105kg / 122kg / 162kg / 180kg
Package Size(W*D*H)
750*745*1100mm / 750*745*1240mm / 750*745*1450mm / 750*745*1540mm / 760*800*1530mm / 760*800*1720mm
Gross Weight
104kg / 114kg / 127kg / 142kg / 213kg / 238kg
