Fume Hood

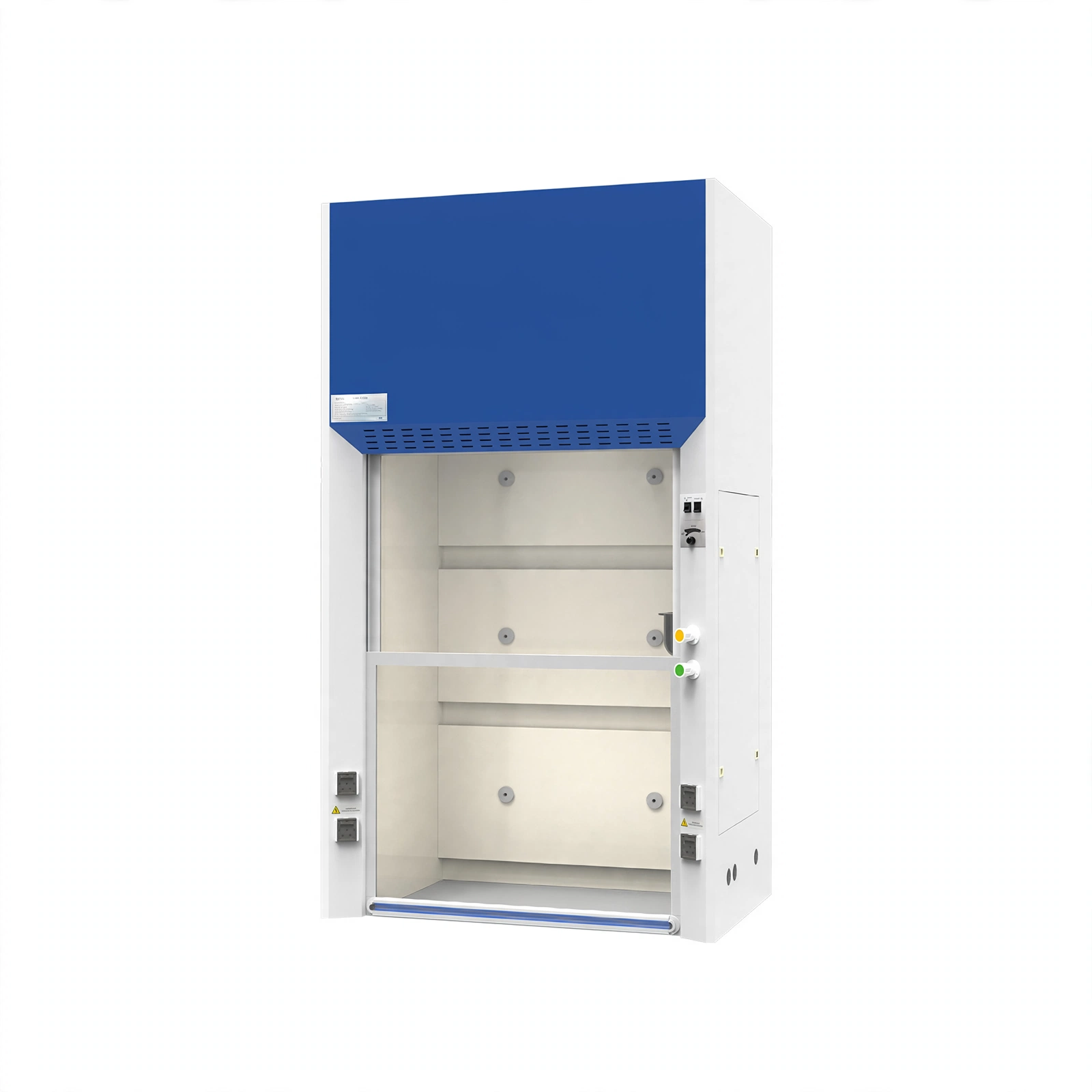

Walk-in Fume Hood FH(W) Series

Model FH1200(W) FH1500(W) FH1800(W)

It is the new technical instrument in air condition workshop and clean workshop. And it is widely applicable in electron, chemicals, mechanism, university and lab. Fume hood can be used in operation of potential risk or unknown infected factors, and the experiment of flammability, explosive volatilization and narcotics. It can protect operator and samples.

A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Features:

1. With memory function in case of power-failure.

2. Operators are available to walk into the fume hood to operate if need.

3. Large room exhaust system, suitable for large laboratory instruments and equipment.

Technical Parameters:

Model

 FH1200(W) FH1500(W) FH1800(W)

External Size(W*D*H)

 1200*800*2250mm 1500*800*2250mm 1800*800*2250mm

Internal Size(W*D*H)

 980*550*1670mm 1280*550*1670mm 1580*550*1670mm

Max Opening

1300mm

Exhaust Airflow Volume

 1150m³/h 1500m³/h 1850m³/h

Inflow Air Velocity

0.3~0.8m/s

Noise

≤62dB

Vibration

Amplitude≤5μm

Illumination

≥800Lux

Fluorescent Lamp

 12W*2 16W*2 16W*2

Power Supply

AC220V±10%, 50/60Hz; 110V±10%, 60Hz

Consumption

 400W 500W 800W

Front Window

Manual, 5mm toughened glass, height adjustable

Material

 Exterior

1.0mm cold-rolled steel with anti-bacteria powder coating.
Interior

Compact laminate board with good acid and alkali resistance function

Standard Accessory

External blower, LED lamp, Water tap, Gas tap, PP water sink, Water valve, Gas valve, Waterproof sockets*4, 5 meters duct

Sockets

Total load of 4 waterproof sockets: ≤500W

Package Size(W*D*H)

 Main body 1400*1050*2450mm 1710*1050*2450mm 2010*1050*2450mm
Exhaust Blower 970*810*720mm 1040*890*710mm 1040*890*710mm

Gross Weight

 260kg; 40kg 290kg; 50kg 340kg; 50kg
The details

Specifications

Ask our team for the full specification sheet for this model.
