Laminar Flow Cabinet

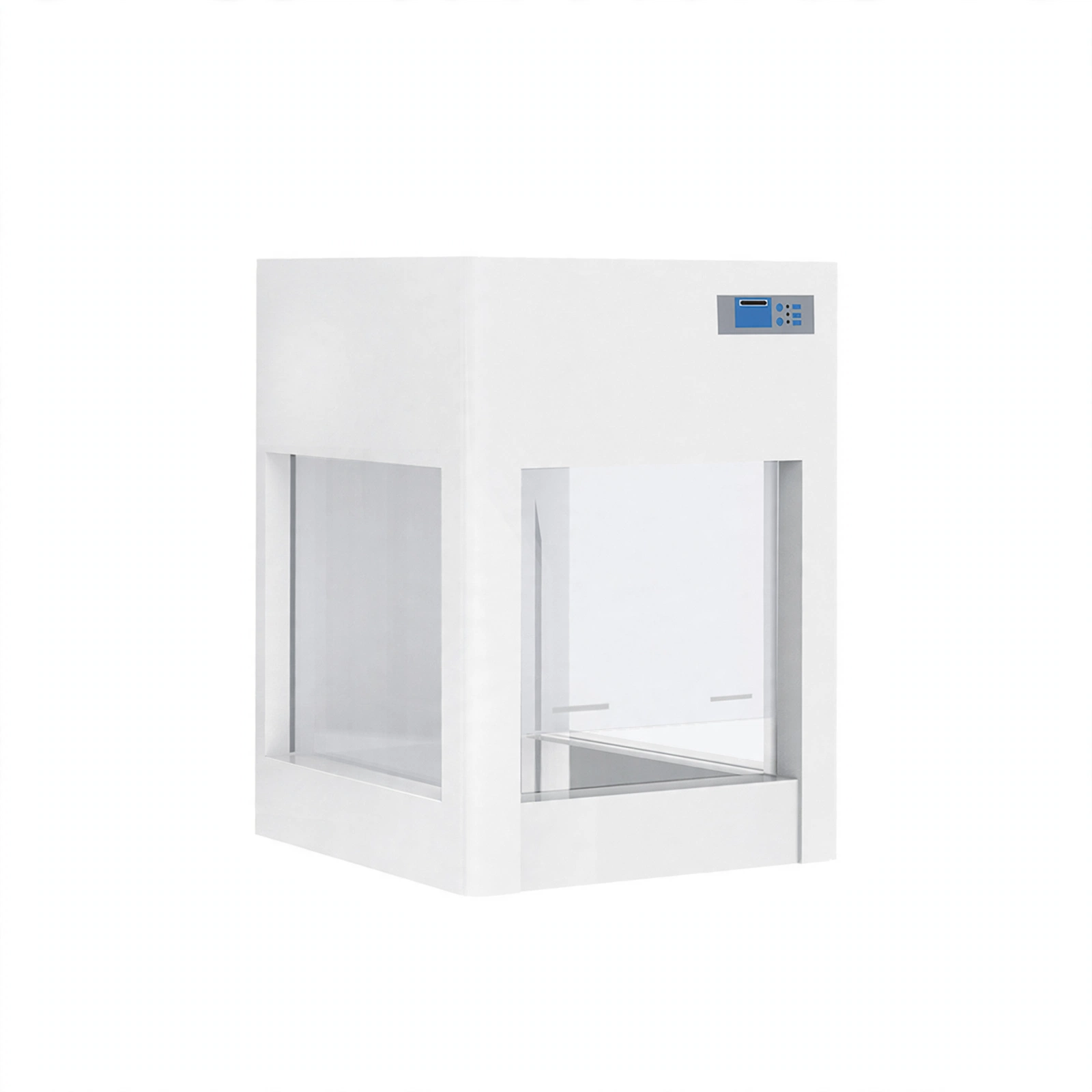

Compounding Hood BBS-V500,V600,V700 BYKG-V Series

Model BBS-V500, BYKG-VII, BBS-V600, BYKG-VIII, BBS-V7--, BYKG-IX, BYKG-X, BYKG-XII

The compounding hood is a specialized clean air device designed to provide a controlled, particle-free environment for the safe preparation of compounds. It ensures protection for both the operator and the product, maintaining the highest levels of sterility and safety. Equipped with HEPA filters and advanced airflow systems, the hood ensures optimal contamination control in hospital and laboratory settings.

Power
100W / 150W / 300W /…
Noise
≤60dB
Dimensions
550*460*700 / 600*580…
A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Technical Parameters:

Model

 BBS-V500 BYKG-VII BBS-V600 BYKG-VIII BBS-V700

BYKG-IX

 BYKG-X

BYKG-XII

External Size(W*D*H)mm

550*460*700

600*580*1060

700*620*1150

 1000*620*1150

1200*620*1150

Internal Size(W*D*H)mm

480*340*370

580*520*610

640*550*700

 940*550*700

1140*550*700

Display

LED display

LCD display

LED display

Airflow Velocity

 0.3~0.5m/s ≥0.5m/s 0.3~0.5m/s 0.3~0.8m/s 0.3~0.5m/s

0.3~0.8m/s

Material

Main

Body

Cold-rolled steel with anti-bacteria power coating

Work

Table

304 stainless steel

Solid physicochemical steel plate

Pre-filter

Polyester fiber, washable(for BBS-V500, BBS-V600 and BBS-V700)

Filter

 HEPA filter Active carbon filter, HEPA filter HEPA filter Active carbon filter HEPA filter

Active carbon filter

Active carbon filter, HEPA filter

Noise

≤60dB

Front Window

Manual, 5mm toughened glass, anti UV

Manual, acrylic material

Max Opening

300mm

590mm

660mm

LED Lamp

4W*1

4W*2

12W*1

UV Lamp

8W*1

 15W*1

15W*1(Optional)

Emission of 253.7 nanometers

Consumption

100W

150W

 300W

200W

 400W

Power Supply

AC220V±10%, 50/60Hz; 110V±10%, 60Hz

Standard Accessory

 HEPA filter,
LED lamp,
UV lamp*2		 Active carbon filter,
HEPA filter,
LED lamp,
UV lamp*2		 HEPA filter,
LED lamp,
UV lamp*2,
Waterproof socket

Active carbon filter,
LED lamp,
UV lamp*2,
Waterproof socket

 HEPA filter,
LED lamp*2,
UV lamp*2

Active carbon filter,
HEPA filter(for model BYKG-X, BYKG-XII)
LED lamp*1, (LED lamp*2 for BYKG-IX)
4 meters PVC exhaust duct, Diameter: 250mm

Optional Accessory

/

Base stand

Base stand, UV lamp*2

Gross Weight

57kg

90kg

100kg

 145kg

190kg

Package Size(W*D*H)mm

700*610*925

760*740*1280

840*760*1400

 1140*740*1340

1340*740*1360
The details

Specifications

Model
BBS-V500 / BYKG-VII / BBS-V600 / BYKG-VIII / BBS-V700 / BYKG-IX / BYKG-X / BYKG-XII
External Size(W*D*H)mm
550*460*700 / 600*580*1060 / 700*620*1150 / 1000*620*1150 / 1200*620*1150 / 1200*620*1150 / 1200*620*1150 / 1200*620*1150
Internal Size(W*D*H)mm
480*340*370 / 580*520*610 / 640*550*700 / 940*550*700 / 1140*550*700 / 1140*550*700 / 1140*550*700 / 1140*550*700
Display
LED display / LCD display / LED display / LED display / LED display / LED display / LED display / LED display
Airflow Velocity
0.3~0.5m/s / ≥0.5m/s / 0.3~0.5m/s / 0.3~0.8m/s / 0.3~0.5m/s / 0.3~0.8m/s / 0.3~0.8m/s / 0.3~0.8m/s
Material
MainBody / Cold-rolled steel with anti-bacteria power coating / Cold-rolled steel with anti-bacteria power coating / Cold-rolled steel with anti-bacteria power coating / Cold-rolled steel with anti-bacteria power coating / Cold-rolled steel with anti-bacteria power coating / Cold-rolled steel with anti-bacteria power coating / Cold-rolled steel with anti-bacteria power coating
Material
MainBody / Cold-rolled steel with anti-bacteria power coating / Cold-rolled steel with anti-bacteria power coating / Cold-rolled steel with anti-bacteria power coating / Cold-rolled steel with anti-bacteria power coating / Cold-rolled steel with anti-bacteria power coating / Cold-rolled steel with anti-bacteria power coating / Cold-rolled steel with anti-bacteria power coating
Material
WorkTable / 304 stainless steel / Solid physicochemical steel plate / Solid physicochemical steel plate / Solid physicochemical steel plate / Solid physicochemical steel plate / Solid physicochemical steel plate / Solid physicochemical steel plate
Material
WorkTable / 304 stainless steel / Solid physicochemical steel plate / Solid physicochemical steel plate / Solid physicochemical steel plate / Solid physicochemical steel plate / Solid physicochemical steel plate / Solid physicochemical steel plate
Pre-filter
Polyester fiber, washable(for BBS-V500, BBS-V600 and BBS-V700)
Filter
HEPA filter / Active carbon filter, HEPA filter / HEPA filter / Active carbon filter / HEPA filter / Active carbon filter / Active carbon filter, HEPA filter / Active carbon filter, HEPA filter
Noise
≤60dB
Front Window
Manual, 5mm toughened glass, anti UV / Manual, acrylic material / Manual, acrylic material / Manual, acrylic material / Manual, acrylic material / Manual, acrylic material / Manual, acrylic material / Manual, acrylic material
Max Opening
300mm / 590mm / 660mm / 660mm / 660mm / 660mm / 660mm / 660mm
LED Lamp
4W*1 / 4W*2 / 12W*1 / 12W*1 / 12W*1 / 12W*1 / 12W*1 / 12W*1
UV Lamp
8W*1 / 15W*1 / 15W*1(Optional) / 15W*1(Optional) / 15W*1(Optional) / 15W*1(Optional) / 15W*1(Optional) / 15W*1(Optional)
UV Lamp
Emission of 253.7 nanometers
Consumption
100W / 150W / 300W / 200W / 400W / 400W / 400W / 400W
Power Supply
AC220V±10%, 50/60Hz; 110V±10%, 60Hz
Standard Accessory
HEPA filter,LED lamp,UV lamp*2 / Active carbon filter,HEPA filter,LED lamp,UV lamp*2 / HEPA filter,LED lamp,UV lamp*2,Waterproof socket / Active carbon filter,LED lamp,UV lamp*2,Waterproof socket / HEPA filter,LED lamp*2,UV lamp*2 / Active carbon filter,HEPA filter(for model BYKG-X, BYKG-XII)LED lamp*1, (LED lamp*2 for BYKG-IX)4 meters PVC exhaust duct, Diameter: 250mm / Active carbon filter,HEPA filter(for model BYKG-X, BYKG-XII)LED lamp*1, (LED lamp*2 for BYKG-IX)4 meters PVC exhaust duct, Diameter: 250mm / Active carbon filter,HEPA filter(for model BYKG-X, BYKG-XII)LED lamp*1, (LED lamp*2 for BYKG-IX)4 meters PVC exhaust duct, Diameter: 250mm
Optional Accessory
/ / Base stand / Base stand, UV lamp*2 / Base stand, UV lamp*2 / Base stand, UV lamp*2 / Base stand, UV lamp*2 / Base stand, UV lamp*2 / Base stand, UV lamp*2
Gross Weight
57kg / 90kg / 100kg / 145kg / 190kg / 190kg / 190kg / 190kg
Package Size(W*D*H)mm
700*610*925 / 760*740*1280 / 840*760*1400 / 1140*740*1340 / 1340*740*1360 / 1340*740*1360 / 1340*740*1360 / 1340*740*1360
