Laminar Flow Cabinet

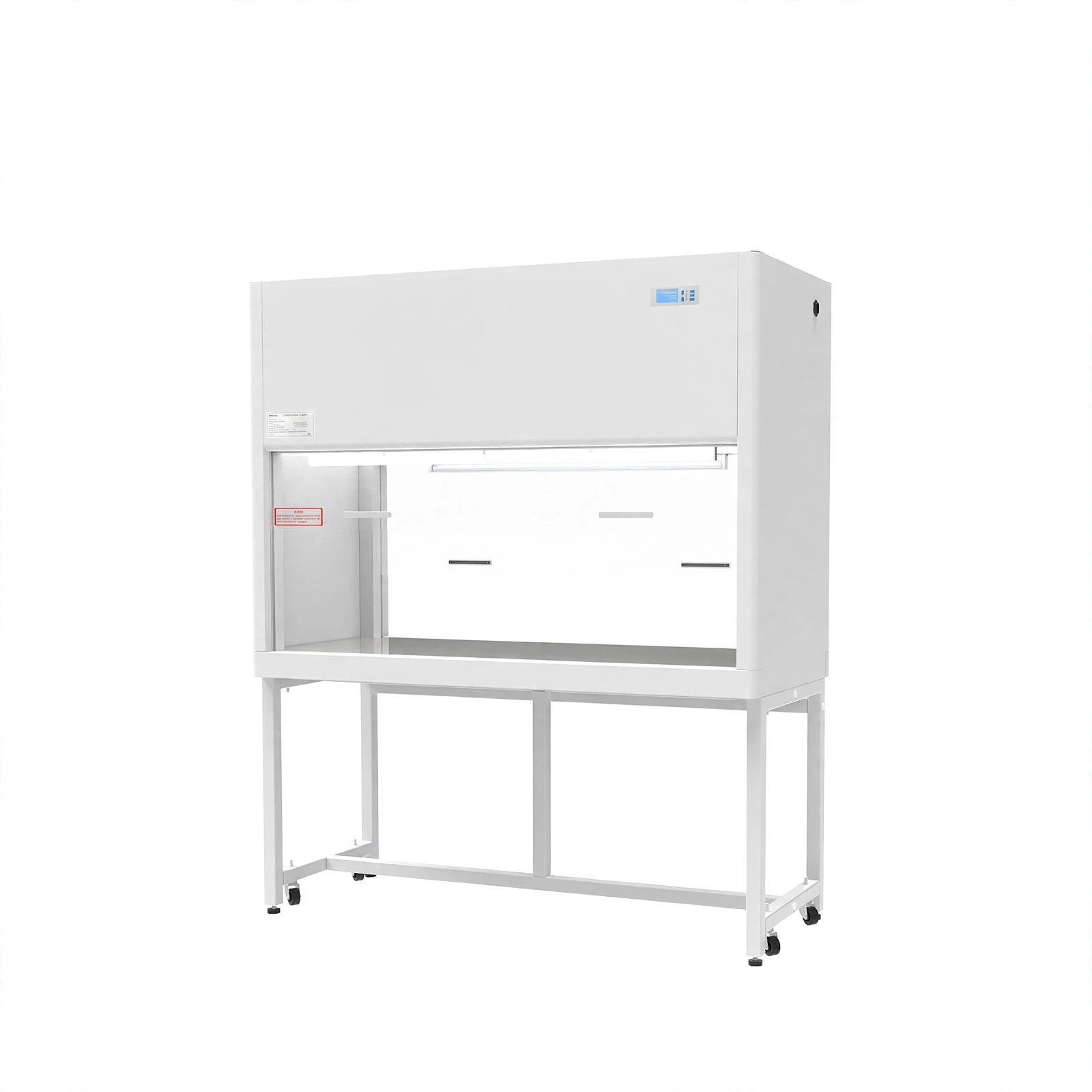

Double Sides Vertical Laminar Flow Cabinet BBS-DSC ,SSC

Model BBS-DSC BBS-SSC

Laminar Flow Cabinet is a work bench or similar enclosure, which creates a particle-free working environment by taking air through a filtration system and exhausting it across a work surface in a laminar or unidirectional air stream. The laminar flow cabinet is enclosed on the sides and kept under constant positive pressure in order to prevent the infiltration of contaminated room air. This model is vertical laminar flow cabinet

Power
350W / 600W
Noise
<65dB
Dimensions
1040*660*1770mm / 144…
A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Features:
1. With memory function in case of power-failure.

2. Double sides work bench, 2~4 operators can work together.

Technical Parameters:

Model BBS-DSC BBS-SSC
External Size(W*D*H) 1040*660*1770mm 1440*660*1770mm
Internal Size(W*D*H) 940*560*545mm   1340*560*545mm
Work Surface Height

750mm
Display

LED display
Airflow Velocity

Average of 0.3~0.5m/s

Material

Main Body: Cold-rolled steel with anti-bacteria powder coating

Work Table: 304 stainless steel
Pre-filter

Polyester fiber, washable
HEPA Filter

99.995% efficiency at 0.3μm
Noise

<65dB
Front Window

Manual, 5mm toughened glass, anti-UV
Max Opening

310mm

UV Lamp

 20W*1     30W*1

Emission of 253.7 nanometers
LED Lamp 12W*1 16W*1
Consumption 350W 600W
Caster

Universal caster with leveling feet
Power Supply

AC220V±10%, 50/60Hz; 110V±10%, 60Hz
Standard Accessory

LED lamp, UV lamp*2, Base stand
Optional Accessory

Electric height adjustable base stand
Gross Weight 150kg 186kg
Package Size(W*D*H) 1190*890*1340mm 1590*890*1340mm
The details

Specifications

Model
BBS-DSC / BBS-SSC
External Size(W*D*H)
1040*660*1770mm / 1440*660*1770mm
Internal Size(W*D*H)
940*560*545mm / 1340*560*545mm
Work Surface Height
750mm
Display
LED display
Airflow Velocity
Average of 0.3~0.5m/s
Material
Main Body: Cold-rolled steel with anti-bacteria powder coating
Material
Work Table: 304 stainless steel
Pre-filter
Polyester fiber, washable
HEPA Filter
99.995% efficiency at 0.3μm
Noise
<65dB
Front Window
Manual, 5mm toughened glass, anti-UV
Max Opening
310mm
UV Lamp
20W*1 / 30W*1
UV Lamp
Emission of 253.7 nanometers
LED Lamp
12W*1 / 16W*1
Consumption
350W / 600W
Caster
Universal caster with leveling feet
Power Supply
AC220V±10%, 50/60Hz; 110V±10%, 60Hz
Standard Accessory
LED lamp, UV lamp*2, Base stand
Optional Accessory
Electric height adjustable base stand
Gross Weight
150kg / 186kg
Package Size(W*D*H)
1190*890*1340mm / 1590*890*1340mm
