Laminar Flow Cabinet

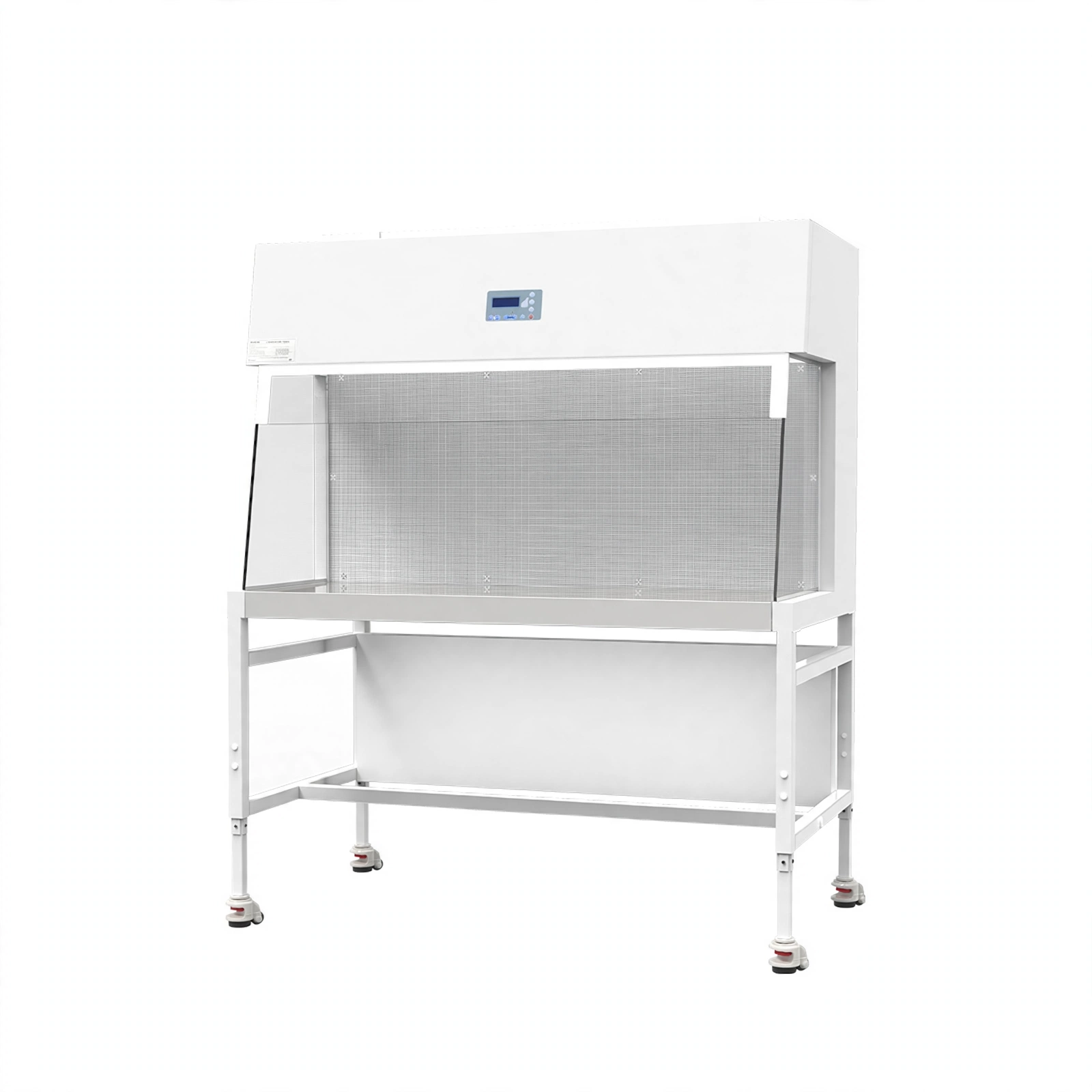

ETL Certified Horizontal Laminar Flow Cabinet

Model BBS-H800 BBS-H1100 BBS-H1300 BBS-H1500 BBS-H1800

Laminar flow cabinet is a box-type air purification equipment that can provide local dust-free clean, sterile working environment class 100 (ISO Class 5) local operating environment. The polluted air in the working area can be artificially controlled through a special filter channel to avoid harm to people and the environment. In the working state, it can keep the performance parameters such as wind speed, air cleanliness, noise, vibration and lighting in the working space to meet the requirements of laboratory use, and is widely used in biological laboratories, medical and health and other related industries, which has a good effect on improving the process conditions, protecting the health of the operator, and improving product quality and yield.

Power
750W / 950W / 950W /…
Noise
≤68dB
Dimensions
800*810* mm / 1100*81…
A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Features:
1. ETL certification, satisfy North American market.

2. With memory function in case of power-failure.

3. Audio and visual alarm(Abnormal airflow velocity).

Technical Parameters:

Model BBS-H800 BBS-H1100 BBS-H1300 BBS-H1500 BBS-H1800
External Size(W*D*H) 800*810*(1720~1980)mm 1100*810*(1720~1980)mm 1300*810*(1720~1980)mm 1500*810*(1720~1980)mm 1800*810*(1720~1980)mm
Internal Size(W*D*H) 700*500*600mm 1000*500*600mm 1200*500*600mm 1400*500*600mm 1700*500*600mm
Work Surface Height

750~1010mm
Max Opening

440mm
Display

LCD display
Airflow Velocity

80~99fpm
Material

Working area: 304 stainless steel

Main body: Cold-rolled steel with anti-bacteria powder coating

Front window: 5mm toughened glass, anti-UV
Pre-Filter

Polyester fiber
HEPA Filter

One, 99.995% efficiency at 0.3μm
Noise

≤68dB(A)
Illumination

≥300lx
Waterproof Sockets

One socket(Double type), America standard, Max. Power: 500W
Power Supply

103.5~126.5V, 60Hz, 10A
Consumption 750W 950W 950W 950W 1150W
LED Lamp 10W*1 14W*1 14W*1 18W*1 22W*1
Standard Accessories

Manually height adjustable base stand, LED lamp, Wind speed sensor, Waterproof socket,

Stainless steel. V. Bar with 10 hooks
Optional Accessories

UV lamp
Package Size(W*D*H) 940*1090*1250mm 1240*1090*1250mm 1440*1090*1250mm 1640*1090*1250mm 1940*1090*1250mm
Gross Weight 150kg 190kg 225kg 265kg 300kg
The details

Specifications

Model
BBS-H800 / BBS-H1100 / BBS-H1300 / BBS-H1500 / BBS-H1800
External Size(W*D*H)
800*810*(1720~1980)mm / 1100*810*(1720~1980)mm / 1300*810*(1720~1980)mm / 1500*810*(1720~1980)mm / 1800*810*(1720~1980)mm
Internal Size(W*D*H)
700*500*600mm / 1000*500*600mm / 1200*500*600mm / 1400*500*600mm / 1700*500*600mm
Work Surface Height
750~1010mm
Max Opening
440mm
Display
LCD display
Airflow Velocity
80~99fpm
Material
Working area: 304 stainless steelMain body: Cold-rolled steel with anti-bacteria powder coatingFront window: 5mm toughened glass, anti-UV
Pre-Filter
Polyester fiber
HEPA Filter
One, 99.995% efficiency at 0.3μm
Noise
≤68dB(A)
Illumination
≥300lx
Waterproof Sockets
One socket(Double type), America standard, Max. Power: 500W
Power Supply
103.5~126.5V, 60Hz, 10A
Consumption
750W / 950W / 950W / 950W / 1150W
LED Lamp
10W*1 / 14W*1 / 14W*1 / 18W*1 / 22W*1
Standard Accessories
Manually height adjustable base stand, LED lamp, Wind speed sensor, Waterproof socket,Stainless steel. V. Bar with 10 hooks
Optional Accessories
UV lamp
Package Size(W*D*H)
940*1090*1250mm / 1240*1090*1250mm / 1440*1090*1250mm / 1640*1090*1250mm / 1940*1090*1250mm
Gross Weight
150kg / 190kg / 225kg / 265kg / 300kg
